Polished Surface Titanium Anodizing Jigs Customized Gr1 Gr2

Name: Polished Surface Titanium Anodizing Jigs Customized Gr1 Gr2
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: rack
Price: 40.00 USD
Availability: InStock

Brand Name:	LHTi
Model Number:	rack
MOQ:	10pcs
Price:	USD30-50 per kg
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	5 Ton per month

Detail Information

Product Description

Detail Information

Place of Origin:

China baoji

Certification:

ISO9001:2015

Product Name:

Titanium Anodizing Jigs Material: Gr1, Gr2

Application:

Electroplating, Anodizing Etc. Size: Customized

Surface:

Polished

Packaging Details:

Standard exporting packing: protecting foam and EPE inside and plywood case outside.

Supply Ability:

5 Ton per month

Highlight:

Titanium Anodizing Jigs

Gr2 Titanium Jigs

Polished Anodizing Jigs

Product Description

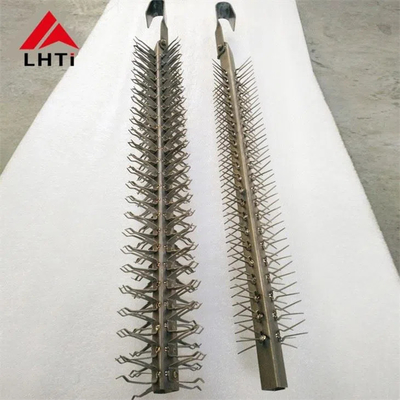

Titanium anodizing jigs

What is a titanium anodizing jigs/titanium jig/titanium rack?

Titanium installation in electroplating production is mainly conducted, supported and fixed parts, pendants and electrode connections, so that the current is more evenly transmitted to the parts for electroplating. In some cases, the uniform distribution of the coating can also be compensated by a suspension because the solution properties limit it.

Item

Anodizing Tianium jig/rack

Size

Customsed size

Material

Titanium

Size(mm)in Bulk Stock

20/30/50 teeth

Can be customized

Grade

Gr1 Gr2

Performance

Corrosion-resisant

Chemical composition (Wt%)

ASTM No.	Fe max	O max	N max	C max	H max	Pd	Al	Bal
Grade 1	0.2	0.18	0.03	0.1	0.015	-	-	Ti
Grade 2	0.3	0.25	0.03	0.1	0.015	-	-	Ti

Physical Properties (Min) of Titanium Anodizing Jigs

ASTM Grade	Alloy Composition	Tensile Strength		Yield Strength		Elongation min %
ASTM Grade	Alloy Composition	ksi	Mpa	ksi	Mpa
Grade 1	Unalloyed Ti ("Pure") 35A -CP1	35	240	25	170	30
Grade 2	Unalloyed Ti ("Pure") 50A -CP2	58	400	40	275	25

Detailed images:

Polished Surface Titanium Anodizing Jigs Customized Gr1 Gr2 1

Different styles titanium jigs/racks for andizing/plating/coating:

Polished Surface Titanium Anodizing Jigs Customized Gr1 Gr2 6

Retaled products:

Packaging and Shipping:

Polished Surface Titanium Anodizing Jigs Customized Gr1 Gr2 8

About our company: Polished Surface Titanium Anodizing Jigs Customized Gr1 Gr2 11

Polished Surface Titanium Anodizing Jigs Customized Gr1 Gr2 13
