|Place of Origin:||China , Shaanxi , Baoji(The titanium valley of China)|
|Minimum Order Quantity:||1 pc|
|Price:||$35 / pc|
|Packaging Details:||Standard exporting packing: protecting foam and EPE inside and plywood case outside.|
|Delivery Time:||10-15 days|
|Payment Terms:||L/C, T/T, D/P,D/A,Western Union|
|Supply Ability:||100000 pcs per month|
|Material:||Titanium Gr2 Gr5 Gr7||Type:||WN (weld Neck Flange)|
|Size:||2" Sch.20s||Quality Test:||UT,PT Etc.|
|MOQ:||1PC||The Third Party Test:||TUV,SGS,BV Etc.|
|Product Name:||Gr2 Gr7 Gr12 WN Titanium Reducing Weld Neck Flanges Pipe Fitting 2" Sch.20s Class 300|
Titanium Welding Neck Flanges,
Sch20s Welding Neck Flanges,
Class 150 Titanium Flanges
ASME Titanium Flanges
Titanium Flange is a part connecting shaft and shaft and is used for connection between pipe ends. It is also used for flanges on the inlet and outlet of equipment for connection between two equipment, such as reducer flange. Flange connection or flange joint refers to a detachable connection in which flanges, gaskets and bolts are connected to each other as a set of combined sealing structures. Pipe flanges refer to the flanges used for pipelines in pipeline installation, and refer to the inlet and outlet flanges of the equipment when used on the equipment. There are holes on the flanges and bolts make the two flanges tightly connected. The flanges are sealed with gaskets.

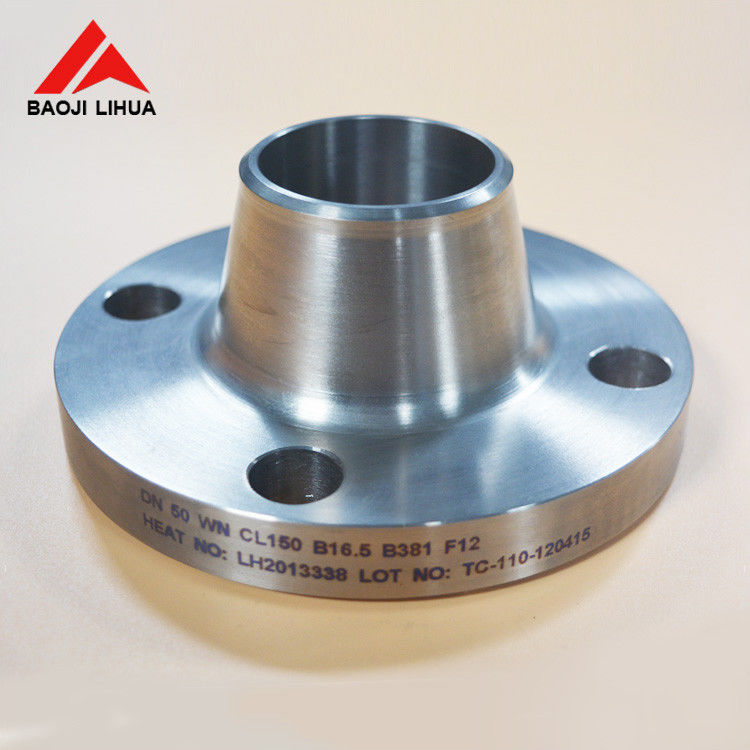

Product name: Titanium welding neck Flanges
Flange type: WN
Class: Class 150 class 300 class 600 class 900 class 1500
Material: GR1 GR2 GR7 GR11 GR12(F2 F7 F11 F12)
Standard: ANSI B16.5 ASTM B381
Technique: Forged, CNC machined
Unit price: $5.9-$269/pc (The specific price depends on products)
The usage of various Titanium:
(1) Gr1 can be used in the drawing parts for its good elongation and excellent corrosion- resistance.
(2) Gr2 is the most widely used commercial pure titanium.
(3) Gr3 is almost used in pressure vessels.
(4)Gr4 can be used for some accessory parts and fastening pieces, but it needs 300 degrees Celsius to form complex shapes.
(5) Gr5 alloy is the most widely used titanium alloy due to its comprehensive mechanical and chemical properties.
(6) Gr7 alloy add little palladium in cp titanium and it has the most excellent corrosion- resistance,of course the cost is higher.
(7) Gr9(Ti-3Al-2.5V) alloy is the most widely used alloy in golf clubs and bicycle beams.
(8) Gr23 alloy, ELI(extra low interstitial),can be used in medical industry.
|Titanium Weld Neck Flange Class 150|
|Nom. Pipe Size||Flange Dia.||Flange Thick||Hub Dia. At Base||Raised Face Dia.||Hub Dia. at Weld Point||No. of Holes||Dia. of Bolts||Dia. Of Bolt Circle||Bore Dia.||Length Thru Hub|
Baoji Lihua Non-ferrous Metals Co., Ltd. has been engaged in the production and export of titanium flanges for more than 15 years, and can produce standard size titanium flanges in accordance with ASME/ANSI, DIN, JIS, EN 1092-1 and other standards. Special-shaped flanges can also be customized according to customer drawings. Welcome to send drawings and customize non-standard flanges.
Titanium forging products include titanium flanges, titanium forged disc/disk/cake, titanium forged rings, titanium blocks and so on. While we provide our customers with good quality products, we guarantee that the price is a competitive in the market.
