High Pressure Polished RF Titanium Weld Neck Flange 2" 4" 6" 8"

Name: High Pressure Polished RF Titanium Weld Neck Flange 2" 4" 6" 8"
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: LH-WN
Price: 55.00 USD
Availability: InStock

Brand Name:	LIHUA
Model Number:	LH-WN
MOQ:	5 Pieces
Price:	US dollar $25/pc--US dollar $85/pc
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50000 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001, TUV etc.

Product Name:

Titanium Weld Neck Flange

Standard:

ASME B16.5

Material:

Gr1, Gr2, Gr5, Gr7, Gr12

Application:

Chemical Industry

Sealing Surface:

RF, FF, TG, RJ Etc.

Size:

NPS 1/2 - NPS 24(DN 10 - 2000)

Pressure:

150#-2500#

Surface:

Polished

Technique:

Forged And CNC Machined

Inspection:

Ultrasonic Testing & Material Test Report EN10204.3.1

Packaging Details:

Wrapped by foam contained in plywood box for export

Supply Ability:

50000 pcs per month

Highlight:

8" Titanium Weld Neck Flange

Titanium Raised Face Weld Neck Flange

High Pressure Polished Titanium Flanges

Product Description

Titanium Welding Neck Flange

Titanium flange is a part made of non-ferrous metal titanium or titanium alloy that connects the pipe and the pipe to each other, and is connected to the pipe end.

Titanium flange can be made by casting, threaded connection or welding. The flange connection consists of a pair of flanges, a gasket and several bolts and nuts. The gasket is placed between the sealing surfaces of the two flanges. After tightening the nut, the specific pressure on the gasket surface reaches a certain value and deforms and fills up the unevenness of the sealing surface to make the connection tight and leak-proof.

Product Information

Product	titanium weld neck flange
Application	Boiler pressure vessels, chemical, petroleum, shipbuilding, pharmaceutical, metallurgy, machinery
Standard	ANSI B16.5, ASME B16.5, EN1092-1, JIS B2220, DIN2627-2628
Material	Gr1, Gr2, Gr5, Gr7, Gr12
Size	1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000)
Pressure	PN0.25~32Mpa/ (DIN) PN6,PN10,PN16,PN25 though PN250/ 150LB, 250LB ,300LB, 400 LB,500LB, 600 LB,900LB, 1500LB,2500LB.
Sealing Surface	RF, FF, TG, RJ etc.
Technique	Froged and CNC Machined

Advantages

1. Price: As a leading manufacturer of titanium products, we have a history of more than 16 years and we know the market very well, so competitive prices can be offered.

2. Equipment: We have annealing furnaces, forging hammers, milling machines, straightening machines, shearing machines, trimming machines, punching machines, sandblasting machines etc.

3. Quality: Our titanium rods are sold to many countries. Our product is widely recognized. MTC, like EN10204.3.1, is available. Third-party test, such as TUV, SGS, BV etc., is also acceptable.

4. Shipment: Various modes of shipping. EXW, FOB, CIF etc. are all ok for us.

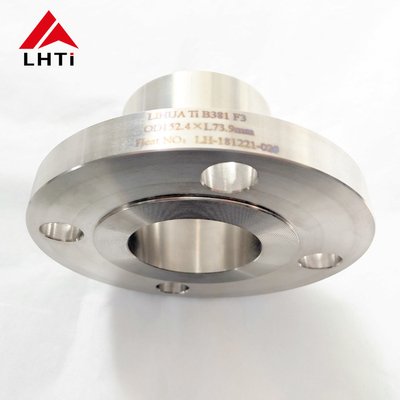

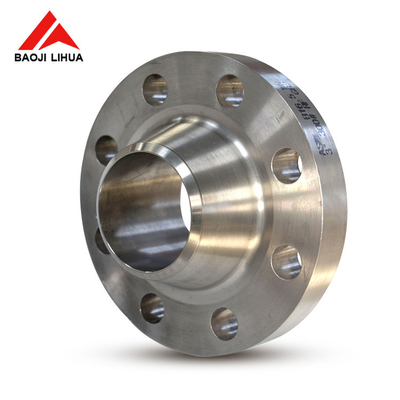

Detailed Images

High Pressure Polished RF Titanium Weld Neck Flange 2" 4" 6" 8" 0

Applications

High Pressure Polished RF Titanium Weld Neck Flange 2" 4" 6" 8" 4

Production Process

High Pressure Polished RF Titanium Weld Neck Flange 2" 4" 6" 8" 5

Our Factory

High Pressure Polished RF Titanium Weld Neck Flange 2" 4" 6" 8" 6

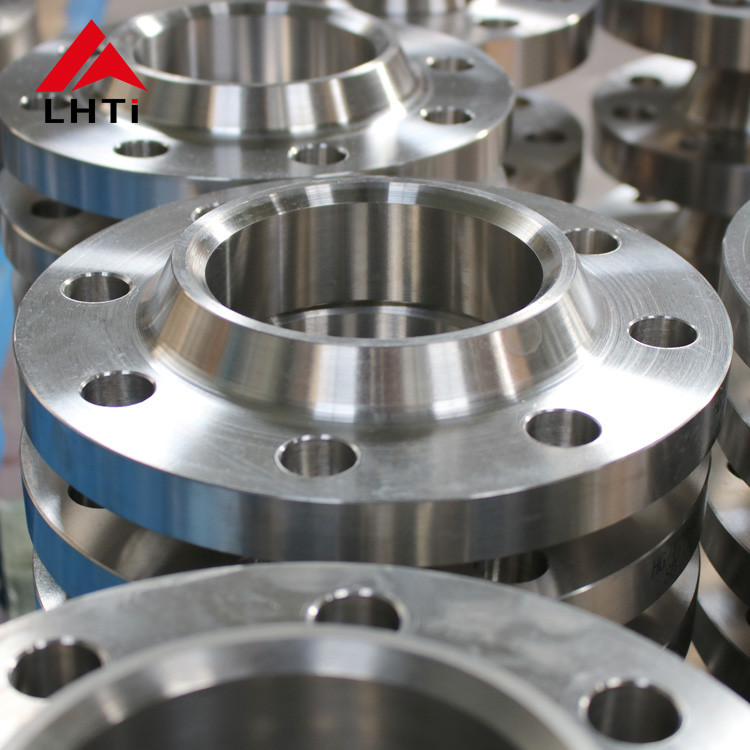

Stock

High Pressure Polished RF Titanium Weld Neck Flange 2" 4" 6" 8" 7

Quality Inspection

High Pressure Polished RF Titanium Weld Neck Flange 2" 4" 6" 8" 8

Packaging

High Pressure Polished RF Titanium Weld Neck Flange 2" 4" 6" 8" 9
