Class 150 Titanium Alloy RF Type Flange BL Chemical Industry For Boiler Pressure Vessels

Basic Information
Place of Origin: China
Brand Name: LH-Ti
Certification: ISO 9001: 2015
Model Number: BL
Minimum Order Quantity: 1PC
Price: $45 / PC
Packaging Details: Carton box/plywood case
Delivery Time: 7-15 working days
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 10000 pcs per month
Detail Information
Porduct Name: Titanium Alloy Flange Class 150 RF Type Flange BL Chemical Industry ANSI 16.5 For Boiler Pressure Vessels Material: Gr2 Pure Titanium
Standard: ASTM / ANSI B16.5 Flange Type: Blind
Size: 1/2''~80" Pressure: Class 150 Class 300 Class 600 Class 900 Class 1500
MOQ: 1PC Quality Test: Ultrasonic Testing
High Light:

Titanium Alloy Raised Face Flange

,

Boiler Pressure Vessels RF Flange

,

Chemical Industry BL Flange


Product Description

Titanium Alloy Flange class 150 RF Type Flange BL Chemical Industry ANSI 16.5 for boiler pressure vessels



Class 150 Titanium Alloy RF Type Flange BL Chemical Industry For Boiler Pressure Vessels 0

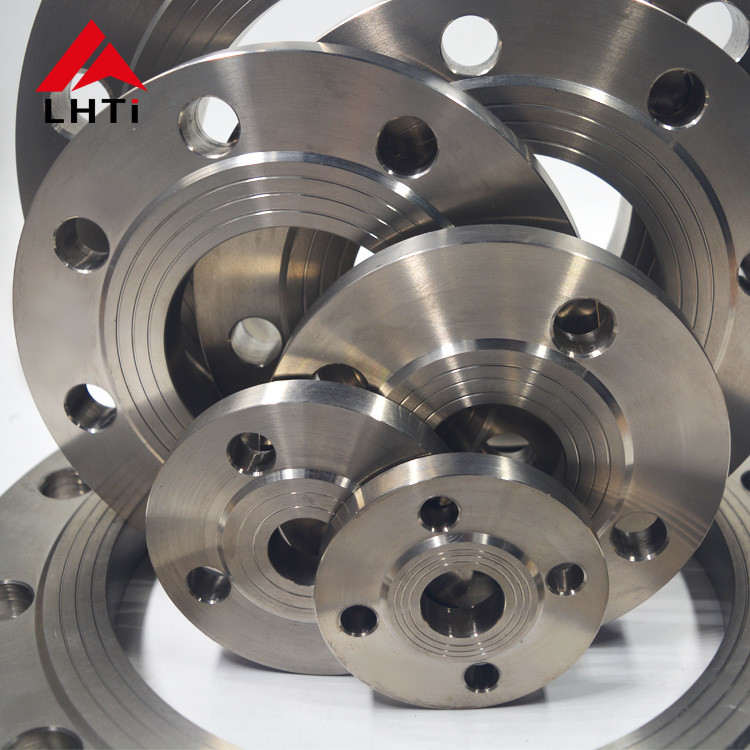

Titanium alloy flange

Standard:ANSI, ASME, DIN, BS, JIS, GB, ISO etc

Material:Gr1 Gr2 Gr5 Gr7 Gr12 Titanium

Type:BL WN SO TH etc.

Size:1/2''~80"

Class / Pressure:150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.

Connection type:RF

Standard:ANSI, ASME, DIN, BS, JIS, GB, ISO etc

Technique:Forged , CNC Machined



Flange type Specifications
ASME /ANSI B16.5   ASME B16.47 Series A (or MSS SP-44)   ASME B16.47 Series A (or API 605) BS 4504 (ISO 7005-1) BS3293
Nominal Pipe sizes
<NPS 26 >=NPS 26 >=NPS 26 DN10 to DN4000 >=NPS 26
Nominal Pressure (Class)
Class (lb) Class (lb) Class (lb) Class (lb) Class (lb)
Weld neck 150-2500 150-900 75-900 2.5-40 150-600
Slip on 150-1500 - - 2.5-40 150-600
Blind 150-2500 300-900 300-900 2.5-40 -
Lap joint 150-2500 - - 6-40 -
Socket weld 150-1500 - - N/A -
Threaded 150-2500 - - 6-40 -
Flat/Raised facings As above As above As above As above As above
Ring joint facings 150-2500 300-900 300-900 2.5-40 300-600
Other facings 150-2500 - - 2.5-40 -



Types of Titanium Flange:

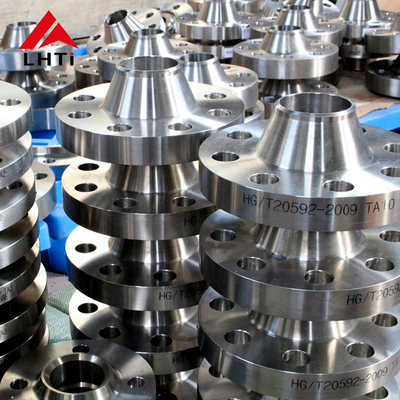

Titanium Weld Neck Flange

Titanium Slip On Flange

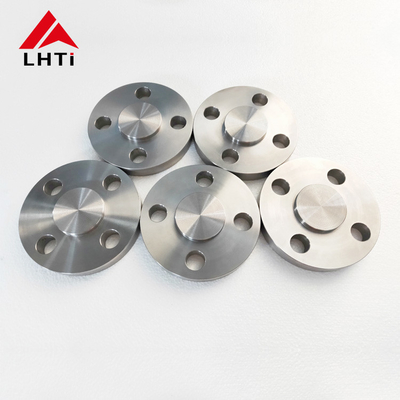

Titanium Blind Flange

Titanium Threaded Flange

Titanium Socket Weld Flange

Titanium Lap Joint Flange

Titanium Loose Flange

Titanium Plate Flange

Titanium Ring Type Joint Flange



The drawins of different type flanges:

Titanium flange





Chemical composition (Wt%)



ASTM No. Fe max O max N max C max H max Pd Al Bal
Grade 2 0.3 0.25 0.03 0.1 0.015 - - Ti



Physical Properties (Min)

ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min %
ksi Mpa ksi Mpa
Grade 2 Unalloyed Ti ("Pure") 50A -CP2 64 440 46 320 18





Detailed images:

Class 150 Titanium Alloy RF Type Flange BL Chemical Industry For Boiler Pressure Vessels 2titanium alloy flange (1)TITANIUM ALLOY FLANGEClass 150 Titanium Alloy RF Type Flange BL Chemical Industry For Boiler Pressure Vessels 5



Quality inspection:

Our quality control department consists of experienced technicians. These personal strictly control the whole production procedure, from introduction of raw materials to finish products. They ensure high quality products for our customers.

high quality titanium flange



Titanium flanges used in boiler pressure vessel:

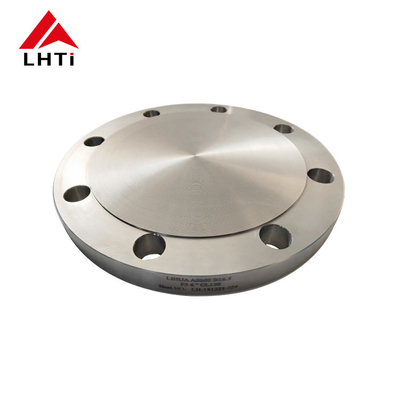

ASME B16.5 Titanium Blind Flange



Packaging & Delivery Detail:

In plywood cases, plywood pallets or as per customers special requirement

Delivery Detail: 7~20 Day

Your inquiry will be highly appreciated! Please contact me without any hesitation if you are interested in our products! We will offer warm-hearted service to you!-

Class 150 Titanium Alloy RF Type Flange BL Chemical Industry For Boiler Pressure Vessels 9



our company

Ti flange

In the production process of titanium gr 5 flanges, we test and inspect the flanges at every stage. We follow all national and international standards and manufacture titanium gr 5 flanges under the strict supervision of experts. Through third-party inspection, we avoid flange defects and errors. We ensure to provide the highest quality products within the specified time.

Class 150 Titanium Alloy RF Type Flange BL Chemical Industry For Boiler Pressure Vessels 12

Class 150 Titanium Alloy RF Type Flange BL Chemical Industry For Boiler Pressure Vessels 0Titanium alloy flange

Standard:ANSI, ASME, DIN, BS, JIS, GB, ISO etc

Material:Gr1 Gr2 Gr5 Gr7 Gr12 Titanium

Type:BL WN SO TH etc.

Size:1/2"-60"(DN15-DN1200)

Class / Pressure:150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.

Connection type:RF

Standard:ANSI, ASME, DIN, BS, JIS, GB, ISO etc

Technique:Forged , CNC Machined



Flange type Specifications
ASME /ANSI B16.5   ASME B16.47 Series A (or MSS SP-44)   ASME B16.47 Series A (or API 605) BS 4504 (ISO 7005-1) BS3293
Nominal Pipe sizes
<NPS 26 >=NPS 26 >=NPS 26 DN10 to DN4000 >=NPS 26
Nominal Pressure (Class)
Class (lb) Class (lb) Class (lb) Class (lb) Class (lb)
Weld neck 150-2500 150-900 75-900 2.5-40 150-600
Slip on 150-1500 - - 2.5-40 150-600
Blind 150-2500 300-900 300-900 2.5-40 -
Lap joint 150-2500 - - 6-40 -
Socket weld 150-1500 - - N/A -
Threaded 150-2500 - - 6-40 -
Flat/Raised facings As above As above As above As above As above
Ring joint facings 150-2500 300-900 300-900 2.5-40 300-600
Other facings 150-2500 - - 2.5-40 -



The drawins of different type flanges:

Titanium flange



Detailed images:TITANIUM ALLOY FLANGE 3titanium alloy flange (1)TITANIUM ALLOY FLANGE



Quality inspection:

Our quality control department consists of experienced technicians. These personal strictly control the whole production procedure, from introduction of raw materials to finish products. They ensure high quality products for our customers.

high quality titanium flange



Packaging & Delivery Detail:

In plywood cases, plywood pallets or as per customers special requirement

Delivery Detail: 7~20 Day

Your inquiry will be highly appreciated! Please contact me without any hesitation if you are interested in our products! We will offer warm-hearted service to you!-

Class 150 Titanium Alloy RF Type Flange BL Chemical Industry For Boiler Pressure Vessels 9



our company

Ti flange
