High Pressure Polished RF Titanium Flat Face Weld Neck Flange 6" For Chemical Industry

Brand Name:	LIHUA
Model Number:	LH-WN
MOQ:	5 Pieces
Price:	US dollar $25/pc--US dollar $85/pc
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50000 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001, TUV etc.

Product Name:

Titanium WN Flange

Standard:

ASME B16.5

Material:

Gr1, Gr2, Gr5, Gr7, Gr12

Application:

Chemical Industry

Sealing Surface:

RF, FF, TG, RJ Etc.

Size:

NPS 1/2 - NPS 24(DN 10 - 2000)

Pressure:

150#-2500#

Surface:

Polished

Technique:

Forged And CNC Machined

Inspection:

Ultrasonic Testing & Material Test Report EN10204.3.1

Packaging Details:

Wrapped by foam contained in plywood box for export

Supply Ability:

50000 pcs per month

Highlight:

Titanium RF Weld Neck Flange

Flat Face Weld Neck Flange 6"

Polished Titanium RF Flange

Product Description

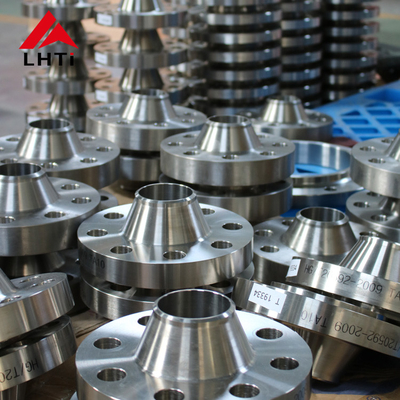

High Pressure WN RF Titanium flat face Weld Neck Flange 6" for Chemical Industry Polished Surface

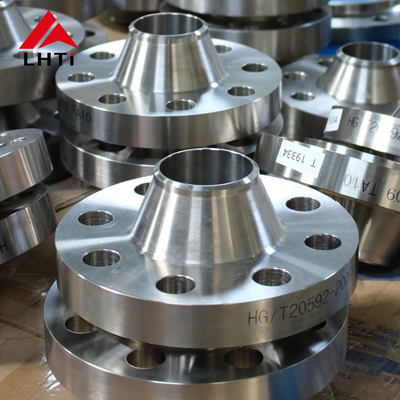

High Pressure Polished RF Titanium Flat Face Weld Neck Flange 6" For Chemical Industry 0

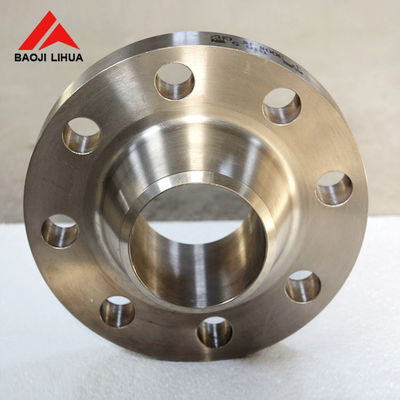

High Pressure Polished RF Titanium Flat Face Weld Neck Flange 6" For Chemical Industry 1

Titanium Weld Neck Flange

Titanium weld neck flanges are suitable for pipelines with large fluctuations in pressure or temperature or pipelines with high temperature, high pressure and low temperature, and are also used for pipelines that transport expensive, flammable and explosive media. Titanium weld neck flange is not easy to be deformed, well sealed, and widely used.

Material: Gr1, Gr2, Gr5, Gr7, Gr12

Standard: ANSI B16.5, ASME B16.5, EN1092-1, JIS B2220, DIN2627-2628

Size: 1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000) .

Pressure Clase: PN0.25~32Mpa/ (DIN) PN6,PN10,PN16,PN25 though PN250/ 150LB, 250LB ,300LB, 400 LB,500LB, 600 LB,900LB, 1500LB,2500LB.

Sealing Surface: RF, FF, TG, RJ etc.

Technique: Froged and CNC Machined

Titanium Weld Neck Flange Class 150
Nom. Pipe Size	Flange Dia.	Flange Thick	Hub Dia. At Base	Raised Face Dia.	Hub Dia. at Weld Point	No. of Holes	Dia. of Bolts	Dia. Of Bolt Circle	Bore Dia.	Length Thru Hub
1/2	3-1/2	7/16	1-3/16	1-3/8	0.84	4	1/2	2-3/8	0.62	1-7/8
3/4	3-7/8	1/2	1-1/2	1-11/16	1.05	4	1/2	2-3/4	0.82	2-1/16
1	4-1/4	9/16	1-15/16	2	1.32	4	1/2	3-1/8	1.05	2-3/16
1-1/4	4-5/8	5/8	2-5/16	2-1/2	1.66	4	1/2	3-1/2	1.38	2-1/4
1-1/2	5	11/16	2-9/16	2-7/8	1.90	4	1/2	3-7/8	1.61	2-7/16
2	6	3/4	3-1/16	3-5/8	2.38	4	5/8	4-3/4	2.07	2-1/2
2-1/2	7	7/8	3-9/16	4-1/8	2.88	4	5/8	5-1/2	2.47	2-3/4
3	7-1/2	15/16	4-1/4	5	3.50	4	5/8	6	3.07	2-3/4
3-1/2	8-1/2	15/16	4-13/16	5-1/2	4.00	8	5/8	7	3.55	2-13/16
4	9	15/16	5-5/16	6-3/16	4.50	8	5/8	7-1/2	4.03	3
5	10	15/16	6-7/16	7-5/16	5.56	8	3/4	8-1/2	5.05	3-1/2
6	11	1	7-9/16	8-1/2	6.63	8	3/4	9-1/2	6.07	3-1/2
8	13-1/2	1-1/8	9-11/16	10-5/8	8.63	8	3/4	11-3/4	7.98	4
10	16	1-3/16	12	12-3/4	10.75	12	7/8	14-1/4	10.02	4
12	19	1-1/4	14-3/8	15	12.75	12	7/8	17	12.00	4-1/2
14	21	1-3/8	15-3/4	16-1/4	14.00	12	1	18-3/4	13.25	5
16	23-1/2	1-7/16	18	18-1/2	16.00	16	1	21-1/4	15.25	5
18	25	1-9/16	19-7/8	21	18.00	16	1-1/8	22-3/4	17.25	5-1/2
20	27-1/2	1-11/16	22	23	20.00	20	1-1/8	25	19.25	5-11/16
24	32	1-7/8	26-1/8	27-1/4	24.00	20	1-1/4	29-1/2	23.25	6
