Forged Titanium SO Flange Class 150 For Boiler Pressure Vessels

Basic Information
Place of Origin: CHINA
Brand Name: LHTI
Certification: ISO9001, TUV etc.
Model Number: 1/2''~80''(DN10~3600)
Minimum Order Quantity: 1
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detail Information
High Light:

Class 150 Titanium SO Flange

,

Boiler Pressure Vessels SO Flange

,

Forged Slip On Titanium Flange


Product Description

Titanium SO Flange Class 150

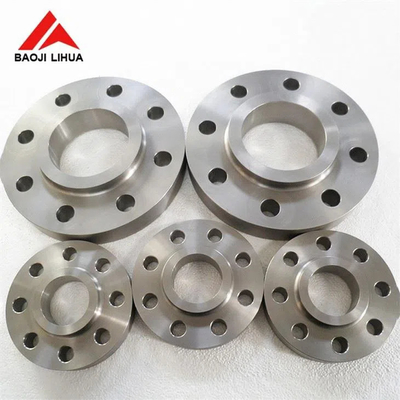

Titanium slip on flange (SO) is a disc-shaped part that connects pipes to each other. This disc-shaped part has a stepped neck compared to ordinary parts. Slip on flange is characterized by high rigidity and is suitable for occasions with high pressure and temperature. The slip on flange connection is easy to use and can withstand greater pressure. Titanium slip on flanges are widely used in boiler pressure vessels, machinery, food and other industries.Forged  Titanium SO Flange Class 150 For Boiler Pressure Vessels 0

Product Name: Titanium SO Flange

Standard: ANSI / ASME B16.5

Material: Gr1 Gr2 Gr5 Gr7 Gr12

Application: Chemical industry

Sealing Surface: RF, FF, TG, RJ etc.

Size: 1/2''~80''(DN10~3600)

Pressure: 150#-2500#

Surface: Polished

Technique: Forged and CNC Machined

Inspection: UT% PT%

Certificate: ISO9001, TUV etc.



Detailed images

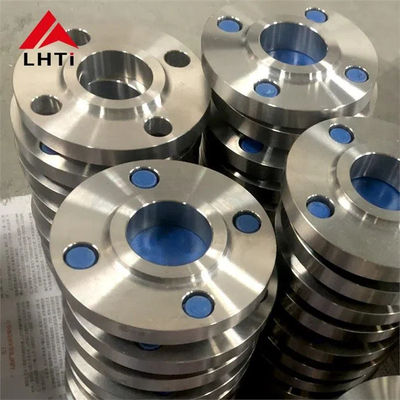

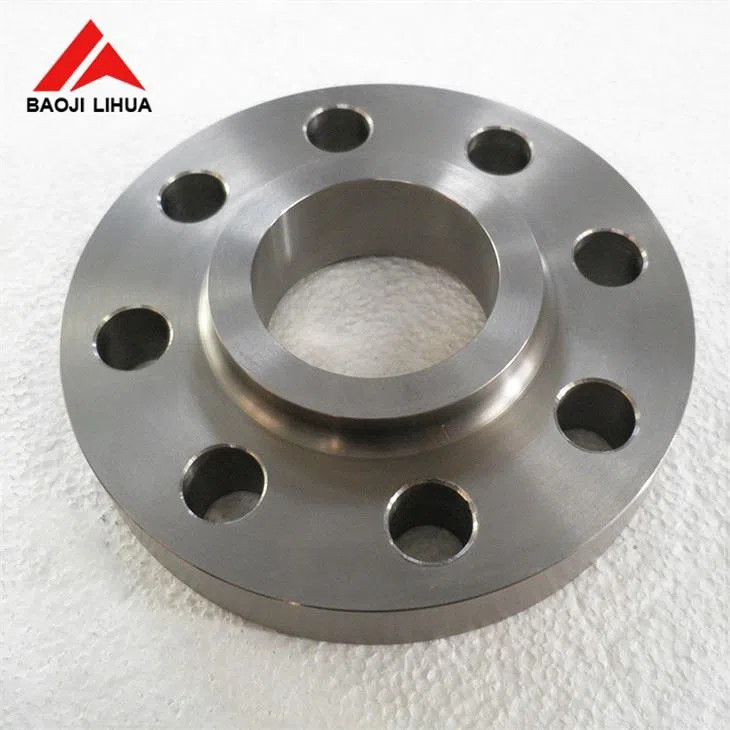

Forged  Titanium SO Flange Class 150 For Boiler Pressure Vessels 1Forged  Titanium SO Flange Class 150 For Boiler Pressure Vessels 2Forged  Titanium SO Flange Class 150 For Boiler Pressure Vessels 3

Other types of titanium flange:

Plate Flanges PL
Weld Neck Flanges WN
Socket Weld Flanges SW
Blind Flange BL
Threaded Screwed Flanges TH
Integral type Flanges IF
Butt welding ring loose flange PJ/SE
Flat welding ring loose flange PJ/PR

Forged  Titanium SO Flange Class 150 For Boiler Pressure Vessels 4

Commonly standards of titanium flanges:

American Standard (ANSI B16.5, ANSI B16.47)

German standard (DIN)

Japanese standard (JIS)

European standard (EN1092-1)



Applications

Forged  Titanium SO Flange Class 150 For Boiler Pressure Vessels 5

Our Factory

Forged  Titanium SO Flange Class 150 For Boiler Pressure Vessels 6

Stock

Forged  Titanium SO Flange Class 150 For Boiler Pressure Vessels 7

Quality Inspection

Forged  Titanium SO Flange Class 150 For Boiler Pressure Vessels 8

Packaging

Forged  Titanium SO Flange Class 150 For Boiler Pressure Vessels 9
