Product Details
Place of Origin: China's professional titanium forging manufacturer
Brand Name: LHTI
Certification: ISO9001, TUV etc.
Model Number: OD200-1300mm * ID100-900mm *Height35*250mm
Payment & Shipping Terms
Minimum Order Quantity: 1
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Grade: |
Gr5,Gr2,Gr1 |
Technique: |
Forged,CNC Machning. |
Application: |
Industry |
Dimensions: |
Customizable |
Jewelry Type: |
Rings |
Jewelry Main Material: |
Titanium |
Grade: |
Gr5,Gr2,Gr1 |
Technique: |
Forged,CNC Machning. |
Application: |
Industry |
Dimensions: |
Customizable |
Jewelry Type: |
Rings |
Jewelry Main Material: |
Titanium |
Titanium ring is a kind of titanium forging. Mainly used in chemical industry.
Product name: forged titanium ring
Standard: ASME SB381 / ASTM B381
Grade: GR1,GR2,GR5,GR7,GR9,GR12
Application: Chemical industry etc.
1.Common Dimensions:
Outside Diameter: 200~400 400~700 700~900 900~1300mm
Inside Diameter: 100~300 150~500 300~700 400~900mm
Height: 20~150 30~250 35~300 50~400mm
2.Mechanical Properties:
| ASTM Grade | Alloy Composition | Tensile Strength | Yield Strength | Elongation % | ||
| ksi | Mpa | ksi | Mpa | |||
| Gr1 | Unalloyed Ti ("Pure") 35A -CP1 | 35 | 240 | 25 | 170 | 24 |
| Gr2 | Unalloyed Ti ("Pure") 50A -CP2 | 50 | 345 | 40 | 275 | 20 |
| Gr5 | Ti 6Al 4V | 130 | 895 | 120 | 828 | 10E |
| Gr7 | T-50A 0.15Pd | 50 | 345 | 40 | 275 | 20 |
| Gr9 | Ti 3Al 2.5V | 90 | 620 | 70 | 483 | 15F |
| Gr12 | Ti-0.3Mo-0.8Ni | 70 | 485 | 50 | 345 | 18 |
3.Application for titanium ring for industry using
1)Aeronautic
2)Medical
3)Chemical engineering & Petrochemical technology
4)Electrolysis
5)Electroplating

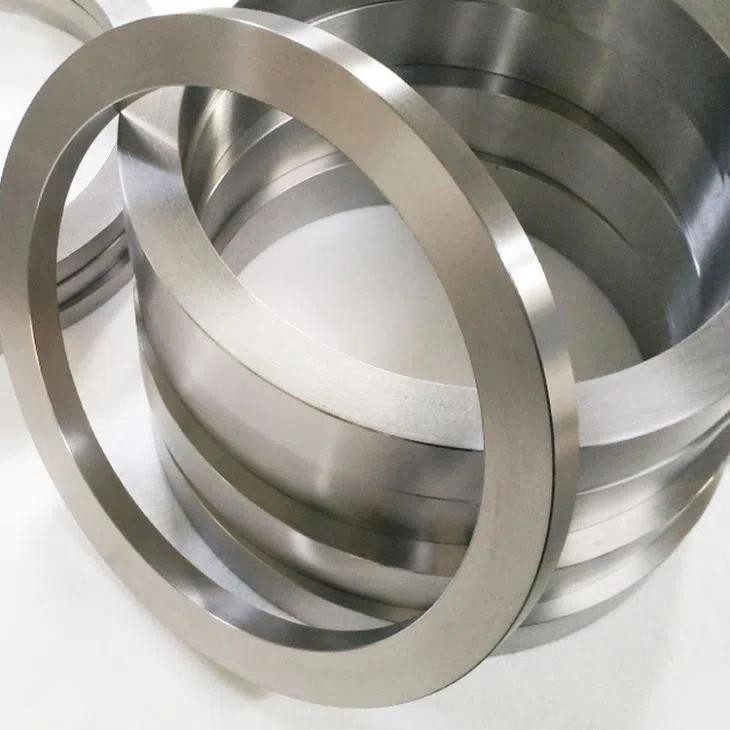

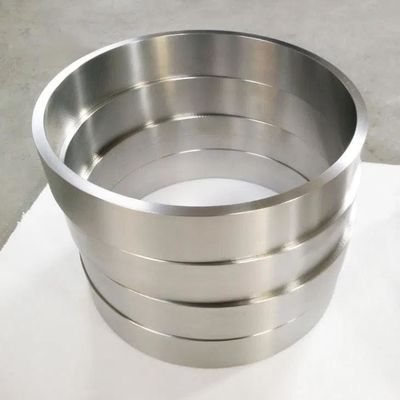

4.Detailed images of titanium forging ring:
5.Packaging & Shipping
We will choose shipping way for customers according to the actual weight of goods.
Express:DHL,FedEX,TNT,UPS (choose the most favorable one based on different countries)
Air:Safe and fast international airlines
Sea:Safe and fast international sealines
