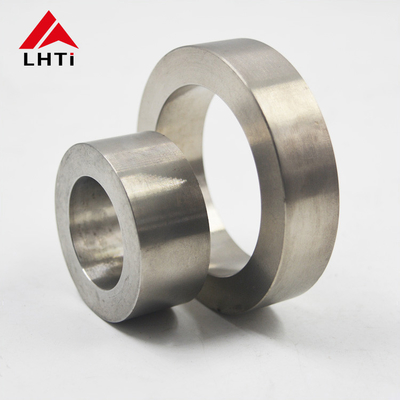

Bright Surface Titanium Forging Ring For Aeronautics ASTM B381

Basic Information
Place of Origin: Baoji Shaanxi China
Brand Name: LHTI
Certification: ISO9001
Model Number: LH-12
Minimum Order Quantity: 1 piece
Price: US dollar $25/kg-US dollar $150/kg
Packaging Details: standard export plywood case
Delivery Time: 5-10 days
Payment Terms: L/C, D/P, T/T, Western Union,Paypal.etc
Supply Ability: 5 tons per month
Detail Information
Grade: Gr1,Gr2,Gr5,Gr7,Gr12 Etc Technique: Forged,rolling
Application: Chemical Industrial Or Aeronautics Powder Or Not: Not Powder
Ti Content (%): 99.0%min Dimensions: 50-600mm Or As Your Requirment
Material: Titanium Standard: ASTM B381/AMS4928 Etc
Surface: Bright Surface Shape: Round Ring
Density: 4.51/m^3 Key Words: Forged Titanium Ring
High Light:

Bright Surface Forged Titanium Ring

,

Aeronautics Titanium Forging Ring

,

Gr2 Pure Titanium Ring


Product Description

ASTM B381 Titanium Forging Ring for Chemical industry







Titanium Forged Ring



Product Names Dimensions(mm) Grade Standards
Outer Diameter Inner Diameter Height Thickness
Ring 200~400 100~300 35~120 40~150 GR1,GR2, Gr5,Gr7,Gr12 ASTM B381/AMS4928
400~700 150~500 40~160 40~250
700~900 300~700 50~180 40~300
900~1500 400~900 70~250 40~400



ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation %
ksi Mpa ksi Mpa
Gr1 Unalloyed Ti ("Pure") 35A -CP1 35 240 25 170 24
Gr2 Unalloyed Ti ("Pure") 50A -CP2 50 345 40 275 20
Gr5 Ti 6Al 4V 130 895 120 828 10E
Gr7 T-50A 0.15Pd 50 345 40 275 20
Gr9 Ti 3Al 2.5V 90 620 70 483 15F
Gr12 Ti-0.3Mo-0.8Ni 70 485 50 345 18



3.Application for titanium ring for industry using

1)Aeronautic

2)Medical

3)Chemical engineering & Petrochemical technology

4)Electrolysis

5)Electroplating















Forged & Rolled

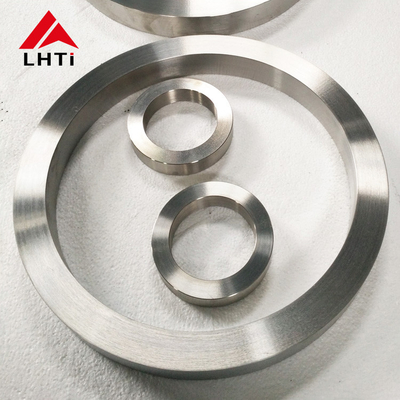

Bright Surface Titanium Forging Ring For Aeronautics ASTM B381 0

Package & Delivery

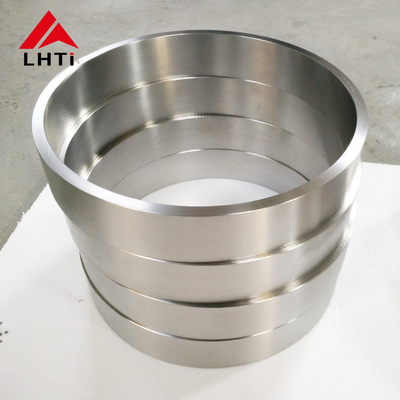

Bright Surface Titanium Forging Ring For Aeronautics ASTM B381 1





---1.Wrapping each Goods, prevent damage surface of goods in the long-distance transportation

---2.Inside the box stuffed with pearl cotton and sponge.To prevent the goods shaking in the long-distance transportation.

---3.outside is standard plywood case.

---Accept customer requirment



Make sure that each package is tailor-made for you.ensure when you get the goods no damaged.



Other Service

  • In stocks with short delivery time.
  • Strict control from raw materials till products finished,100% Ensure the quality.
  • Support OEM,Customized design,If you are not sure what type of  you need for your project, we were glad to help.
  • One on one after service.
  • Original mill sheet test reports EN 10204.3.1 is available.
  • Support The third party testing and professional inspection
