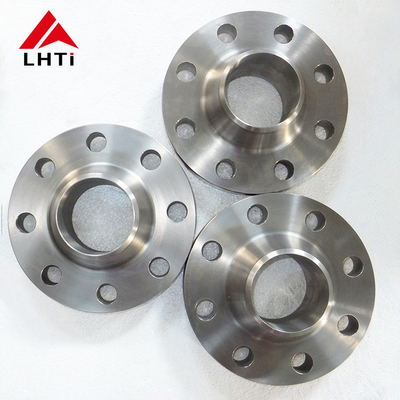

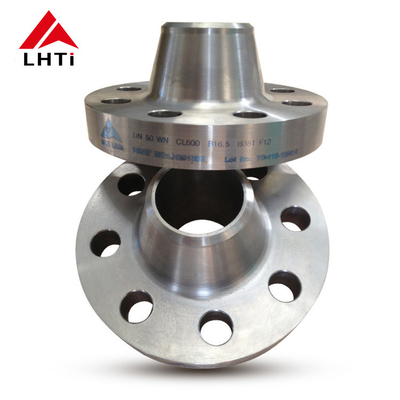

Forged Titanium Weld Neck Flange Class 300 ASME B16.5

Product Details

Place of Origin: China

Brand Name: LH

Certification: ISO9001:2015

Model Number: LHTFL

Payment & Shipping Terms

Minimum Order Quantity: 5pcs

Price: USD12.00-58.00 per piece

Packaging Details: Plywood box with soft foam for additional protection

Delivery Time: 10-25 work days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 10000pcs per month

Get Best Price
Highlight:

Forged Titanium Weld Neck Flange

,

Class 300 Weld Neck Pipe Flanges

,

Titanium WNRF Flange

Material:
Gr2 Gr5 Gr7 Gr12
Standard:
ASME B16.5 EN1092-1
Type:
WNRF , SORF , BLIND ,SW, PL
Application:
Chemical, Industry
Processing Method:
Forged, CNC Machine
Working Temp:
-60℃~250℃
Product Name:
Forged Titanium Weld Neck Flange Class 300 ASME B16.5
Material:
Gr2 Gr5 Gr7 Gr12
Standard:
ASME B16.5 EN1092-1
Type:
WNRF , SORF , BLIND ,SW, PL
Application:
Chemical, Industry
Processing Method:
Forged, CNC Machine
Working Temp:
-60℃~250℃
Product Name:
Forged Titanium Weld Neck Flange Class 300 ASME B16.5
Forged Titanium Weld Neck Flange Class 300 ASME B16.5

 Forged Titanium Weld Neck Flange Class 300 ASME B16.5





Forged Titanium Weld Neck Flange Class 300 ASME B16.5 0









1. Production Information

Forged Titanium Weld Neck Flange Class 300 ASME B16.5 1

Name Titanium flange,Titanium alloy flange
Material Grade Gr1,Gr2,Gr5,Gr7,Gr12
Certificate EN10204/3.1
Standard EN1092-1
Size DN10-3600
Pressure PN0.6-PN100
Technique Forged and CNC Machined
Type WNRF,SORF,BLIND,SW,PL
Flange surface FF,RF,TG,RJ etc.
Application

Boiler pressure vessels,

chemical,petroleum,shipbuilding,pharmaceutical,metallurgy,machinery

Advantage

1,Long servise lif

2,corrosion-resistant

3,High yeiled strength and tensilestrength



Available Flange types

a.Slip On Flange
b.Welding Neck Flange
c.Threaded Flange(Screwed Flange)
d.Plain Flange
e.Blind Flange
f.Lap Joint Flange
g.Wocket Welding Flange
h. welded flange
i. titanium large-diameter flange



Specification

Titanium Weld Neck Flange Class 300
Nom. Pipe Size Flange Dia. Flange Thick. Hub Dia. At Base Raised Face Dia. Hub Dia. At Weld Point No. of Holes Dia. Of Bolts Dia. Of Bolt Circle Bore Dia. Length Thru Hub
1/2 3-3/4 9/16 1-1/2 1-3/8 0.84 4 2-5/8 1/2 0.62 2-1/16
3/4 4-5/8 5/8 1-7/8 1-11/16 1.05 4 3-1/4 5/8 0.82 2-1/4
1 4-7/8 11/16 2-1/8 2 1.32 4 3-1/2 5/8 1.05 2-7/16
1-1/4 5-1/4 3/4 2-1/2 2-1/2 1.66 4 3-7/8 5/8 1.38 2-9/16
1-1/2 6-1/8 13/16 2-3/4 2-7/8 1.90 4 4-1/2 3/4 1.61 2-11/16
2 6-1/2 7/8 3-5/16 3-5/8 2.38 8 5 5/8 2.07 2-3/4
2-1/2 7-1/2 1 3-15/16 4-1/8 2.88 8 5-7/8 3/4 2.47 3
3 8-1/4 1-1/8 4-5/8 5 3.50 8 6-5/8 3/4 3.07 3-1/8



Our moulds for flange are very complete, so we can produce flanges in all standards, including EN1092-1, ASME B16.5, DIN and BS etc.









2.Different grade titanium



grade Tensile strength(min) Yeild strength(min) Elongation(%)
component ksi MPa ksi MPa
Gr1 Ta1 35 240 20 138 24
Gr2 Ta2 50 345 40 275 20
Gr7 Ti-0.2Pd 50 345 40 275 20
Gr9 Ti-3Al-2.5V 90 620 70 483 15
Gr12 Ti-0.3Mo-0.8Ni 70 483 50 345 18



3. Cooperation with us will provide you a strong guarantee


1.ISO9001:2015
2. The timely delivery rate is 99.8%, sometimes in advance.
3.Excellent after-sale service.
4.Rapid inquiry reply, within 2 hours.
5.Fair payment term
6.Professional technical adviser
7.Material certificate
8.Quality is strictly according to ASTM,DIN,UNS,GB/T standard(manufacturing process,surface treatment,inspections and testing).



Forged Titanium Weld Neck Flange Class 300 ASME B16.5 2



Quality inspections

Forged Titanium Weld Neck Flange Class 300 ASME B16.5 3

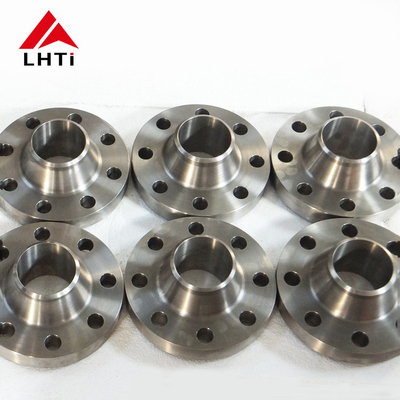

6high quality titanium flange



Packaging and shipping

Each flange is wrapped with pearl cotton to prevent collision and scratch of the flange surface. The gap between the flange and the flange is filled with sponge to ensure that the flange is not deformed when the customer receives the goods. Outside is fumigation-free plywood case. Choose the best express, air or sea based on the weight of the goods. Everything is to better serve customers as the goal.Customer also can arrange shipment theirselves.



Customized Titanium flange & Relevant Products are welcomed.

Forged Titanium Weld Neck Flange Class 300 ASME B16.5 6

Forged Titanium Weld Neck Flange Class 300 ASME B16.5 7



Baoji Lihua Non-ferrous Metals Co., Ltd

Forged Titanium Weld Neck Flange Class 300 ASME B16.5 8



Forged Titanium Weld Neck Flange Class 300 ASME B16.5 9

FAQ



1. Any discount?
A: The prices we quote are all wholesale prices in the first place. Meanwhile, our best price will be offered according to your order quantity, so please specify your purchase quantity when you inquire. The more your order, the better discounts we will offer.



2. Are you a manufacturer?
A: Yes. As a manufacturer with 13 years of experience, we’ve gained adequate expertise and proficiency. Relying on our own factory, we offer you our best quality products as we have fully equipped the Product Department and QC Department.



3. How do I know if my products are delivered?
A: We will inform you Tracking No. for your reference or you can contact us anytime for shipment information.



4. Has your company acquired any certificate?
A: We are a certified manufacturer with our auto parts approved by the ISO9001 Quality Management System.



5. How about the quality of the products?
A: We guarantee strict control over every detail of the products. Each product is carefully inspected and tested before delivery.



6. What about payment terms?
A: T/T, L/C, Western Union Paypal are accepted.



7. How is your MOQ?
A: The minimum quantity for certain items is only 20pcs. But MOQ can be lowered when you buy several different kinds of products together. For more details, please feel free to contact us at any time.



8. How about the delivery time?
A: Usually within 5-7 days via express delivery. But it depends on your order quantity as well.



9. If you have additional questions, please feel free to contact us.
