Gr2 Titanium Seamless Tube 20mm Pickled Surface

Brand Name:	LHTI
Model Number:	LH-01
MOQ:	If in stock, sample is available; If not in stock,100kgs of each size
Price:	US dollar $23/kg-US dollar $31/kg
Payment Terms:	L/C,D/P,T/T,Western Union,Paypal.etc
Supply Ability:	5 tons per month

Detail Information

Product Description

Detail Information

Place of Origin:

BaoJi City Shaanxi China

Certification:

ISO9001

Key Words 1:

Factory Gr2 Gr1 Gr5 Gr7 Gr9 Gr12 Gr23 Titanium Pipe Prices Seamless Tube From Factory

Key Words 2:

20mm GR2 Titanium Tube

Key Words 3:

Titanium Heat Exchanger Tube

Material:

Pure Titanium

Grade:

Grade 2

Purity:

99.5%min

Length:

Max 12 Meter

Surface:

Pickling Surface

Application:

Heat Exchanger

Production Time:

15 Working Days

Payment Term:

T/T,Paypal,Western Union Etc

Packaging Details:

Each tube with environmental protection bags,outside is standard plywood case

Supply Ability:

5 tons per month

Highlight:

Low Density Titanium Seamless Tubes

Heat Exchanger Titanium Seamless Tubes

Pickling Titanium Round Tube

Product Description

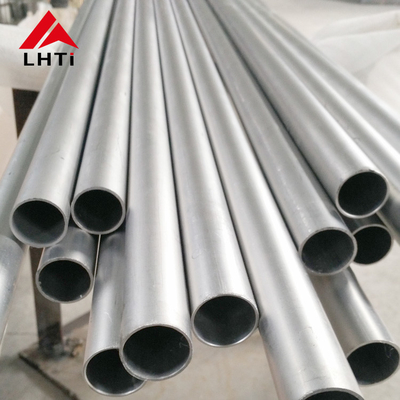

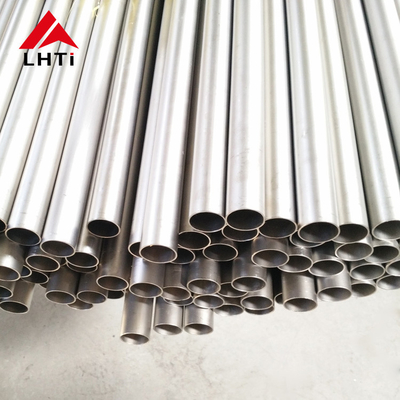

Gr2 Titanium Seamless Tube 20mm Pickled Surface

Our seamless titanium tube is made from pure titanium in Gr1, Gr2, Gr7 and Gr12 with a pickling surface and 99.5% minimum purity. With a 20mm outside diameter and 1.2mm wall thickness, it is supplied to ASTM SB338 in round, square, flat or coil form up to a maximum length of 12 meter. Titanium seamless tubes are widely chosen for heat exchangers and condensers because they combine low density, high strength and excellent corrosion resistance.

Gr2 Titanium Seamless Tube

Technical Specifications

Product Name	Pure Titanium & Titanium Alloy Tube / Pipe
Tube Shape	Round, square, flat, coil
Material	Pure titanium (Gr1, Gr2, Gr7, Gr12)
Standard	ASTM SB338
Type	Seamless
Outside Diameter	20 mm
Wall Thickness	1.2 mm or as customized
Length	Max 12 meter
End	Plain end, beveled end, threaded

Mechanical Properties

Grade	Tensile Strength min (MPa)	Yield Strength 0.2% min (MPa)	Elongation (%)
Gr1	240	170	24
Gr2	345	275	20
Gr7	345	275	20
Gr9	620	483	15
Gr12	483	345	18

Chemical Composition (max %)

Grade	N	C	H	Fe	O	Al	V	Ti
Gr1	0.03	0.08	0.015	0.20	0.18	/	/	Bal
Gr2	0.03	0.08	0.015	0.30	0.25	/	/	Bal
Gr7	0.03	0.08	0.015	0.30	0.25	/	/	Bal
Gr9	0.03	0.08	0.015	0.25	0.15	2.5-3.5	2.0-3.0	Bal
Gr12	0.03	0.08	0.015	0.30	0.25	/	/	Bal

Applications & Titanium Advantages

This titanium seamless tube is used in heat exchangers, condensers, offshore oil drilling, power generation, gas processing, specialty chemicals, chemical equipment, sea water equipment, pulp and paper, and medical and laboratory equipment. Titanium has a very high strength-to-weight ratio at only about 57% of the weight of steel, keeps good strength and stability up to 500℃, retains high impact strength even at -250℃, and forms a dense oxide film that resists corrosion from aggressive media.

Quality, Customization & Inquiry

LHTi supplies under ISO 9001 with EN 10204/3.1B certification, raw material certificates, 100% radiography test reports and third-party inspection (TUV, BV, SGS). Tube shape, wall thickness and length are customizable and sample material is available if in stock. Please send your specification for a quotation.
