Titanium Tube
Created with Pixso.

ASME B16.9 Grade 2 Titanium Stub End Welding

ASME B16.9 Grade 2 Titanium Stub End Welding

Brand Name: LHTi
Model Number: Titanium elbow
MOQ: 5 piece
Payment Terms: T/T,,L/C,Western Union,Paypal
Supply Ability: 50000 pcs per month
Detail Information
Place of Origin:
China
Certification:
ISO9001:2015; TUV; BV; SGS
Model Number:
High Qulity ASME B16.9 Titanium Grade 2 Stub Ends
Material:
Titanium
Connection:
Welding
Shape:
Reducing
KW:
Corrosion Resistance
Application:
Chemical Industry
Packaging Details:
Plastic Inside And The Good Wooden Export Case Outside, Suitable For Both Air And Sea Delivery
Packaging Details:
Plastic bag with laber, outside plastic box, then plywod box
Supply Ability:
50000 pcs per month
Highlight:

Grade 2 Reducing Stub Ends

,

Titanium Stub Ends

,

Corrosion Resistance Pipe Stub End

Product Description

ASME B16.9 Grade 2 Titanium Stub End Welding

LHTi supplies this ASME B16.9 titanium tube stub end in Grade 2, and also in GR1, GR7, GR9 and GR12 on request. The fitting is made to ASTM B363, ASME SB363, ASME B16.9 and ANSI B16.9 in seamless or welded form, with an outer diameter of 1/2 inch to 48 inch (DN15-DN1200) and wall thickness from Sch5s to Sch160s. A stub end is welded to the pipe and then used with a backing flange, which gives a corrosion resistant, easy to align joint in chemical industry piping.

Technical Specifications

Grade GR1, GR2, GR7, GR9, GR12
Standard ASTM B363, ASME SB363, ASME B16.9, ANSI B16.9, JIS, ISO, BS
Material Titanium
Technique Seamless, welded
Outer Diameter 1/2 inch - 48 inch (DN15 - DN1200)
Wall Thickness Sch5s - Sch160s
Connection Welding
Shape Reducing

Nominal Diameter Reference

DN Diameter (mm) Grade
3/8 17.1 Gr1 / Gr2 / Gr7 / Gr12
1/2 21.3 Gr1 / Gr2 / Gr7 / Gr12
1 33.4 Gr1 / Gr2 / Gr7 / Gr12
1 1/4 42.2 Gr1 / Gr2 / Gr7 / Gr12
2 60.3 Gr1 / Gr2 / Gr7 / Gr12
3 88.9 Gr1 / Gr2 / Gr7 / Gr12
4 114.3 Gr1 / Gr2 / Gr7 / Gr12
6 168.3 Gr1 / Gr2 / Gr7 / Gr12
8 219.1 Gr1 / Gr2 / Gr7 / Gr12
12 323.9 Gr1 / Gr2 / Gr7 / Gr12

Why Titanium

Titanium offers a higher strength to density ratio than many other metals, so strong yet lighter components can be built from it. Compared with stainless steel it resists moisture, seawater, acid and stress corrosion, including attack by chlorides, chlorinated organic substances, sulphuric acid and nitric acid. It also keeps its strength at temperatures up to about 500 degrees C and remains ductile at low temperature, which suits aerospace structural components as well as chemical plant.

Applications

These stub ends are mainly used in chemical industry piping, where the welded, flange-backed joint gives a secure and leak-free connection on corrosive lines.

Detailed Images

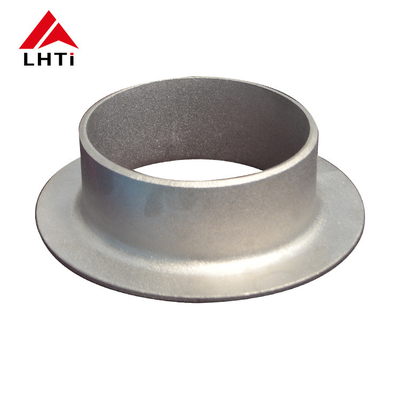

ASME B16.9 Grade 2 titanium tube stub end

ASME B16.9 Grade 2 titanium tube stub end

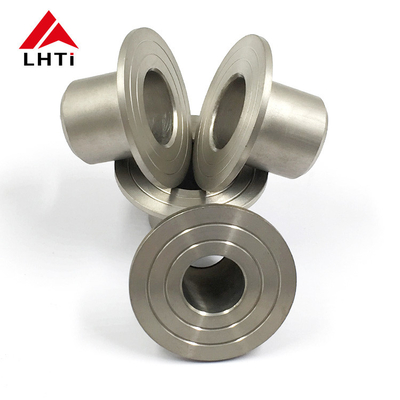

ASME B16.9 Grade 2 titanium tube stub end
