Place of Origin: | China |
---|---|
Brand Name: | LHTi |
Certification: | ISO9001:2015 |
Model Number: | Gr7 Ti sheet |
Minimum Order Quantity: | 100 kgs |
Price: | USD35-48.500 per kg |
Packaging Details: | Standard exporting packing |
Delivery Time: | 7-20 work days |
Payment Terms: | T/T, Western Union, D/P, D/A, L/C |
Supply Ability: | 200000 kg per month |
Porudct Name: | Corrosion Resistance 6Al-4V Gr5 Eli Titanium Plate Price | Material Grade: | Titanium Gr5 Eli |
---|---|---|---|
Standard: | ASTM/ ASME B265 | Surface: | Polished, Acid Washing |
Situation: | Annealed | Technology: | Cold Rolled, Hot Rolled |
Shape: | Straight | Application: | Chemicals, Machinery And Equipment Etc. |
High Light: | Gr5 Eli Titanium Plate,Corrosion Resistance Titanium Plate 6Al-4V,Annealed Cutting Titanium Sheet |
Corrosion Resistance 6Al-4V Gr5 Eli Titanium plate price
1. Titanium plate Specifiction
Product Name: Titanium Plate
Standard: ASTM B265
Material: Gr5 Eli /6Al-4V
Unit Price: $28usd/kg-$30usd/kg
Thickness: 0.5-100mm
Length: 500-6000mm Or As You Require
Width: 500-1000mm Or As You Require
Surface: Pickling, Polishing, Sand Blasting
MOQ:1PC
China's professional titanium plate manufacturer
Applications :
Architecture
Power generation
Hydro-carbon processing
Marine industry
Exhaust pipe shrouds
Airframe skin
Desalination
Chemical processing
Chlorate manufacturing
The Chemical Composition of Titanium(ASTM B265) | |||||||||||||
Grade | the principal comporents(%) | Impurity content less than or equal to | |||||||||||
TI | AL | V | Mo | Ni | Pd | Fe | C | N | H | O | Residual | element | |
single | total | ||||||||||||
GR.1 | margin | / | / | / | / | / | 0.20 | 0.08 | 0.03 | 0.015 | 0.18 | 0.1 | 0.4 |
GR.2 | margin | / | / | / | / | / | 0.30 | 0.08 | 0.03 | 0.015 | 0.25 | 0.1 | 0.4 |
GR.3 | margin | / | / | / | / | / | 0.30 | 0.08 | 0.03 | 0.015 | 0.35 | 0.1 | 0.4 |
GR.4 | margin | / | / | / | / | / | 0.50 | 0.08 | 0.03 | 0.015 | 0.40 | 0.1 | 0.4 |
GR.5 | margin | 5.5-6.75 | 3.5-4.5 | / | / | / | 0.40 | 0.08 | 0.03 | 0.015 | 0.20 | 0.1 | 0.4 |
GR.7 | margin | / | / | / | / | 0.12-0.25 | 0.30 | 0.08 | 0.03 | 0.015 | 0.25 | 0.1 | 0.4 |
GR.9 | margin | 2.5-3.5 | 2.0-3.0 | / | / | / | 0.25 | 0.08 | 0.03 | 0.015 | 0.15 | 0.1 | 0.4 |
GR.12 | margin | / | / | 0.2-0.4 | 0.6-0.9 | / | 0.30 | 0.08 | 0.03 | 0.015 | 0.25 | 0.1 | 0.4 |
The Physical Properties of Titanium | |||||
Grade | State | mechanical properties at room temperature no less than or equal to | |||
Σb | σo.2 | δ40 | Ψ | ||
Mpa(ksi) | Mpa(ksi) | % | % | ||
GR.1 | (M)annedling | 241(35) | 172(25) | 24 | 30 |
GR.2 | 345(50) | 276(40) | 20 | 30 | |
GR.3 | 448(65) | 379(55) | 18 | 30 | |
GR.4 | 552(80) | 483(70) | 15 | 25 | |
GR.5 | 896(130) | 827(120) | 10 | 25 | |
GR.7 | 345(50) | 276(40) | 20 | 30 | |
GR.9 | 621(90) | 483(70) | 15 | 25 | |
GR.12 | 483(70) | 345(50) | 18 | 25 |

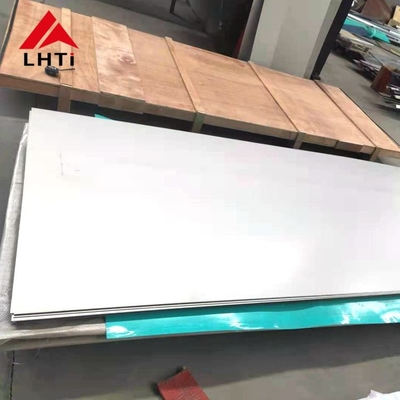

Detailed Images:
Titanium plate production process:
We always use grade 1 sponge titanium as raw material to ensure that the titanium plates produced by the factory are high-quality products.

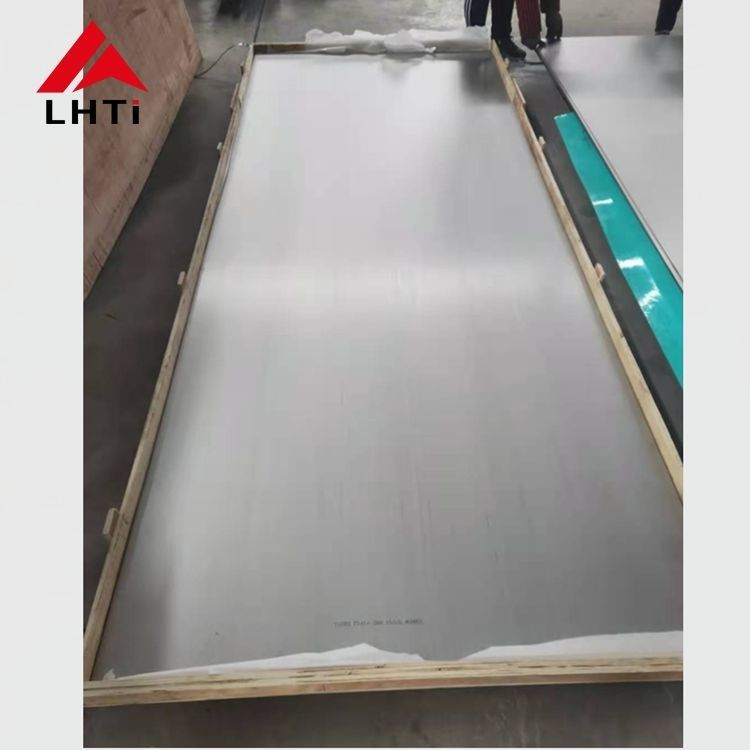

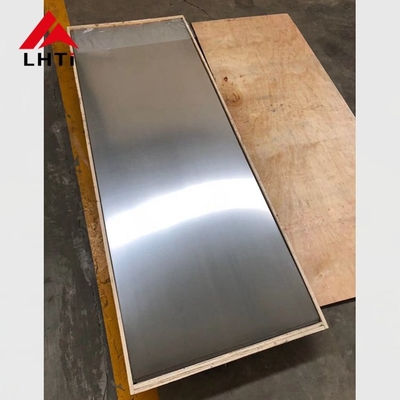

Package of Gr7 Titanium Plate
The packaging of Titanium Plate is done by our factory according to the specification and size of the plates being delivered. Most of plates are packed in standard export plywood box in order to avoid the fumigation and damage of goods during the shipment. Packaging is considered as the important parameter when the products are shipped internationally.
