Forged Round Titanium Stub Ends Grade 2 ASME B16.9

Basic Information
Place of Origin: China
Brand Name: LHTi
Certification: ISO9001
Model Number: TST117
Minimum Order Quantity: 5 piece
Packaging Details: Wooden Case
Delivery Time: 5-10 work day
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 5000 piece per week
Detail Information
Place Of Origin: China Brand Name: LHTi
Technique: Forged Powder Or Not: Not Powder
Ti Content (%): 99.7% Min Product Name: Titanium Disk
Shape: Round Material: Gr1 Gr2 Gr5 Gr7 Gr9 Gr12
MOQ: 5 Piece Color: Silver Gray
Surface: Cold Rolled Bright Technology: Cold Colled Stamping
Density: 4.51g/cm^3 Packed: Wooden Case
Purity: >99.7%
High Light:

Grade 2 Stub End Fittings

,

Forged Titanium Stub Ends

,

Round Titanium Stub Ends


Product Description

ASME B16.9 Titanium Grade 2 Stub Ends Direct Sale From Factory



Titanium is a chemical element, chemical symbol Ti, atomic number 22, is a silver-white transition metal, characterized by light weight, high strength, metallic luster, also has good corrosion resistance (including seawater, aqua regia and chlorine). Because of its stable chemical properties, good resistance to high temperature, low temperature, strong acid, strong alkali, as well as high strength, low density, is reputed as "space metal". Titanium was discovered by Gregor in Cornwall in 1791 and named by Clapprot after the Titan of Greek mythology.



Titanium is widely used in the medical field. Titanium is close to human bone and has good biocompatibility and no side effects on human tissues. Human body implant is a special functional material closely related to human life and health. Compared with other metal materials, the advantages of using titanium and titanium alloy are mainly as follows:

1. Light weight

2. Low elastic modulus

3. Non-magnetic

4. High strength, good toughness

Product Detail Picture

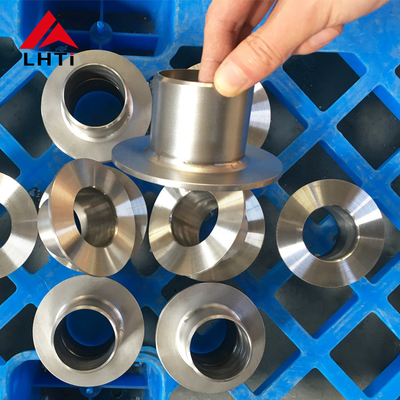

Forged Round Titanium Stub Ends Grade 2 ASME B16.9 0

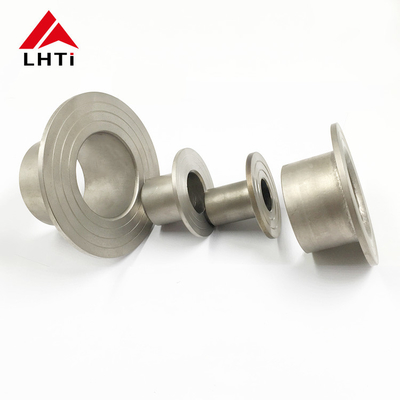

Forged Round Titanium Stub Ends Grade 2 ASME B16.9 1



Forged Round Titanium Stub Ends Grade 2 ASME B16.9 2



Titanium Customized Forged Rolled Rings Direct Supply From Factory

1. Pure Titanium Gr2 Gr1
2.Purity:>99.7%
3.Standard: ASTM B381
4.Shape: Ring
5. Size: Customized
6.Delivery Time:within 10~15 days
7.Payment Term:L/C, D/P, T/T, Western Union
8. titanium grade and material



N C H Fe O Al V Pa Mo Ni Ti
Gr 1 0.03 0.08 0.015 0.2 0.18 / / / / / bal
Gr 2 0.03 0.08 0.015 0.3 0.25 / / / / / bal
Gr 5 0.05 0.08 0.015 0.4 0.2 5.5~6.75 3.5~4.5 / / / bal
Gr 7 0.03 0.08 0.015 0.3 0.25 / / 0.12~0.25 / / bal



grade Tensile strength(min) Yeild strength(min) Elongation(%)
component ksi MPa ksi MPa
Gr1 Ta1 35 240 20 138 24
Gr2 Ta2 50 345 40 275 20
Gr5 Ti6Al4V 130 895 120 828 10
Gr7 Ti-0.2Pd 50 345 40 275 20
Gr9 Ti-3Al-2.5V 90 620 70 483 15
Gr12 Ti-0.3Mo-0.8Ni 70 483 50 345 18



Product Names Dimensions Grade Standards
Outer Diameter Inner Diameter Height
(mm) (mm) (mm)
Disc 150~300 / 20~140 GR1,GR2,GR5,GR7,
GR9,GR12,GR23
ASTM B381
300~500 / 25~150
500~600 / 30~110
Ring 200~400 100~300 20~150
400~700 150~500 30~250
700~900 300~700 35~300
900~1300 400~900 50~400



Forged Round Titanium Stub Ends Grade 2 ASME B16.9 3

Our factory Display

Baoji Lihua Non-ferrous Metals Co., Ltd, founded in 2006, lies in Tai Cheng road Baoji city---It is famous for manufacturing titanium, called “China Titanium Valley”.

The factory covers an area of 1800 square meters. Our factory has strong technical equipment. With more than 20 sets of CNC machine tools, milling machines, drilling machines, annual output value of more than 30 million yuan.
The company's products over the years of stable quality, and has passed the ISO9001:2015 certification, BV audit certification.
Over the years, the company has been committed to the improvement and stability of product quality. Based on the business philosophy of customer service maximization.
We warmly welcome you to consult and business negotiation!
