Gr5 Medical Forging Titanium Disc For Chemical Equipment ASTM F136

Basic Information
Place of Origin: China
Brand Name: LHTi
Certification: ISO 9001:2015
Model Number: LH-Ti2
Minimum Order Quantity: 1 pieces
Packaging Details: Standard export packing,plywood case outside
Delivery Time: 15-30 Days
Payment Terms: L/C,D/P, T/T etc.
Supply Ability: 20000 pieces per month
Detail Information
Product Name: Forging ASTM F136 Grade 5/GR7 Medical Titanium Material One Piece Dental For Chemical Equipment Material: Gr1 Gr2 Gr5(Ti-6Al-4V),Gr7(Ti-0.2Pd),Gr9(Ti-3Al-2.5V),Gr12(Ti-0.3Mo-0.8Ni)
Standard: ASTM/ASME B265,ASTM/ASME B381 Diameter: 50-2500mm
Thickness: Max 150mm Process: Forging
Quality Test: UT,PT Third-party Testing: Available
High Light:

Medical Titanium Disc Gr5


Forging Titanium Disc


Chemical Equipment Titanium Disk

Product Description

ASTM F136 Gr5 medical Titanium Disc in stock

1. Titanium Forged Disc:

Product name Industry use Titanium disc disk ring titanium forging ring
Dimension OD(Max 1300 mm) ×H (max length 300mm)
Grade Gr1 Gr2 Gr5(Ti-6Al-4V),Gr7(Ti-0.2Pd),Gr9(Ti-3Al-2.5V),Gr12(Ti-0.3Mo-0.8Ni) etc.
Standard ASTM B381, ASME SB381
Density 4.51g/cm3
Certification ISO 9001:2015 & Gold suppier on ALIBABA, Material Mill Test Report
Technique Die forging or flat-die forging +CNC machining
Shape Disc/disk , ring
Type Titanium forging
Application Electroplating ;Chemical engineering & Petrochemical technology,oil drilling equipments,Aircraft Frame etc.


2. Physical Properties:

Grade Tensile strength(min) Yeild strength(min) Elongation (%)
ksi MPa ksi MPa
GR1 35 240 20 138 24
GR2 50 345 40 275 20
GR5 130 895 120 828 10
GR7 50 345 40 275 20
GR9 90 620 70 438 15
GR12 70 438 50 345 18


3. Tolerance of titanium forging ring as per ASTM B381:


Gr1 Gr2 Gr5 Gr7 Gr9 Gr12

OD(mm) Tolerance(mm) Height Tolerance(mm)
100-300 -1/+3 <50 -0/+2
300-600 -2/+3 50-200 -1/+3
600-1000 -3/+5 200-300 -2/+4

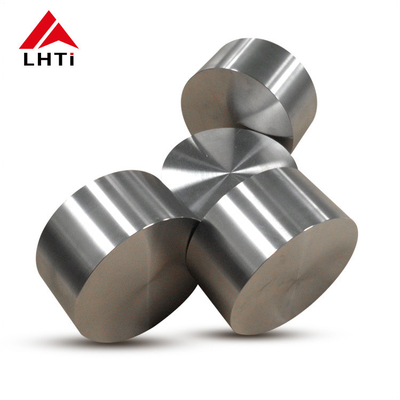

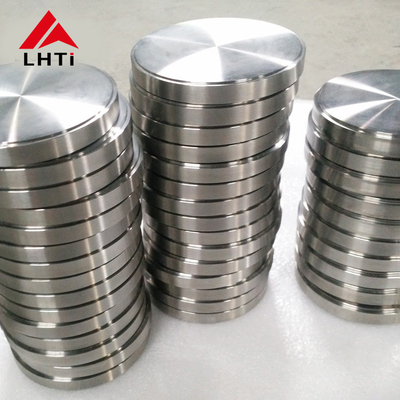

Detailed pictures of titanium disc:

Gr5 Medical Forging Titanium Disc For Chemical Equipment ASTM F136 0Gr5 Medical Forging Titanium Disc For Chemical Equipment ASTM F136 1Gr5 Medical Forging Titanium Disc For Chemical Equipment ASTM F136 2Gr5 Medical Forging Titanium Disc For Chemical Equipment ASTM F136 3


Quality control:

1.The forging disc surface of titanium alloy is smooth and smooth, with CNC machine adding cotton. The surface is free of any pollution, scratch, scratch, grinding, dent or any other defects.

2.100% UT test before delivery

3.Provide En10204/3.1 quality certificate with chemical composition and physical properties before delivery


Packaging and shipping:

Standard export packaging, any damage is not allowed to the goods, to ensure that the goods received by customers are perfect and clean. Choose the best transportation plan for customers.

Titanium disc packaging


About our company:

Baoji Lihua Non-ferrous Metals Co., Ltd, founded in 2006, lies in Tai Cheng road, Baoji city---

It is famous for manufacturing Titanium, called “China Titanium Valley”.We are specialized in

manufacturing titanium products.Our advantagous products is titanium forgings(titanium disc,

titanium ring, titanium flange) .With more than 14 years export Experience, our products was

sold to Asia, Europe, North America in large quantity.In addition to provide preferential price

for customers, we pay much attention to quality, and have a good after-sales service.

All products we produced are based on the standard: Amecian standard,German standard ,

Aerospace standard, European standard, etc. Including ASTM/ASME.JIS,DIN etc.Lihua is

certified by ISO9001:2008 . Our company's mantains long-term cooperations with SGS,BV,

LR'S ,TUV and other international inspection agency .Third party test is available.
