Gr5 0.2mm Thin Straight Titanium Wire

Name: Gr5 0.2mm Thin Straight Titanium Wire
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: Titanium wire
Price: 22.00 USD
Availability: InStock

Brand Name:	LHTi
Model Number:	Titanium wire
MOQ:	20 kg
Price:	USD16.00-28.00 per kg
Payment Terms:	T/T,,L/C,Western Union,Paypal
Supply Ability:	200000 kg per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001:2015; TUV; SGS;BV

Material:

Thin And Straight Titanium Wire Gr5 Titanium Wire 02mm Price For

Grade:

Gr1, Gr2

Diameter:

0.5mm-3mm

Straight Wire Length:

1000mm-3000mm

MOQ:

20 Kg

Package Box:

5kg Per Plastic Box, Or As Your Request

Certificate:

ISO9001:2008

Processing Service:

Bending, Cutting

Package Coil:

10~15kg ,or As Per Buyer Requirement

Advantage:

Corrosion Resistance, High Strength, Light Quality

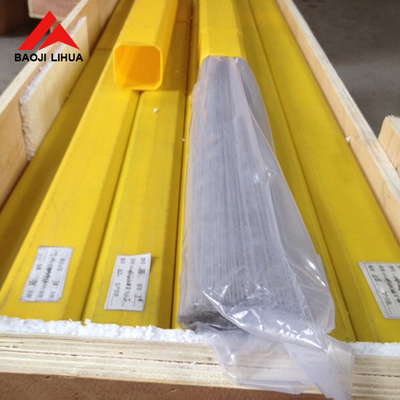

Packaging Details:

Plastic bag with laber, outside plastic box, then plywod box

Supply Ability:

200000 kg per month

Highlight:

Gr5 Straight Titanium Wire

Corrosion resistance Thin Titanium Wire

0.2mm Titanium Welding Wire

Product Description

Gr5 0.2mm Thin Straight Titanium Wire

This thin straight titanium wire is made from Gr5 (Ti-6Al-4V) as well as Gr1 and Gr2 titanium. It is supplied as straight cut lengths of 1000-3000 mm, on spools or in coils, in annealed (M), soft worked (R) or hard worked (Y) condition. The fine 0.2 mm straight wire is chosen where a light, strong and corrosion-resistant wire is needed, such as filter mesh, precision components and welding filler wire.

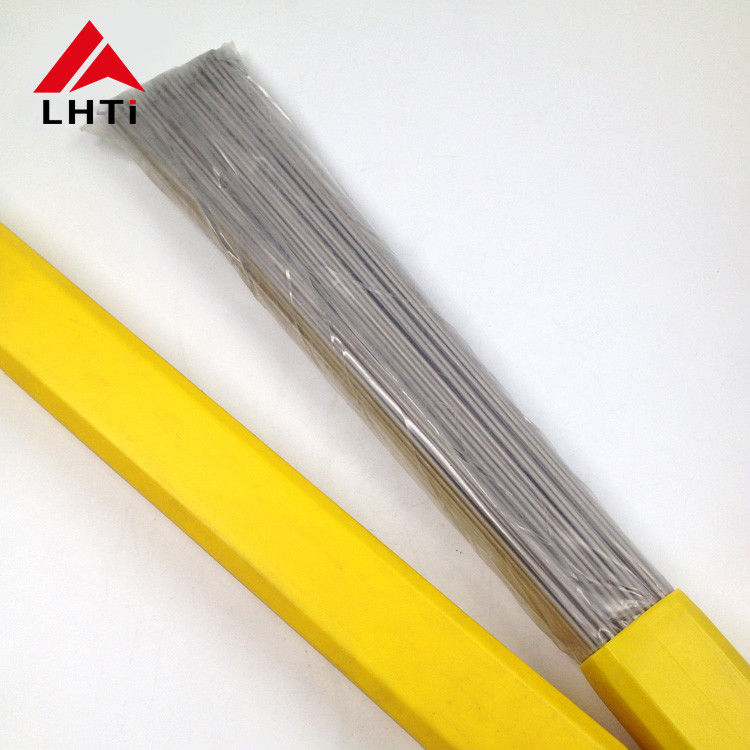

Gr5 thin straight titanium wire

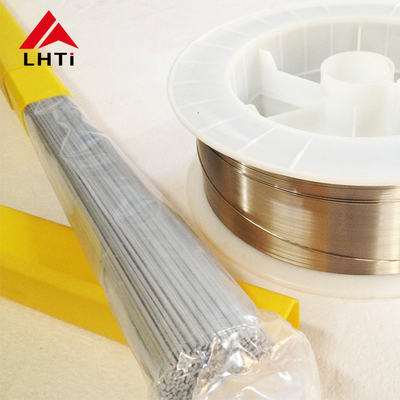

Thin titanium wire on spool

Technical Specifications

Material	Gr5 titanium (Ti-6Al-4V), Gr1, Gr2
Grade	Gr1, Gr2, Gr5
Diameter	0.2 mm, 0.5 mm - 3.0 mm
Straight Wire Length	1000 mm - 3000 mm
Delivery State	Annealed (M), soft worked (R), hard worked (Y)
Processing Service	Bending, cutting
Surface	Bright, as drawn
Certificate	ISO9001

Size Range and Supply Form

Supply Form	Size Range	Packing
Straight wire	0.2 mm - 3.0 mm	Cut lengths 1000-3000 mm
Spool wire	0.5 mm - 3.0 mm	Wound on spool
Coil wire	0.5 mm - 4.0 mm	10-15 kg per coil
Box packing	As ordered	5 kg per plastic box

Typical Minimum Mechanical Properties (AWS A5.16)

Filler Metal	Base Metal	UTS min ksi [MPa]	YS min ksi [MPa]
ERTi-1	Unalloyed Ti CP1	35 [240]	20 [138]
ERTi-2	Unalloyed Ti CP2	50 [345]	40 [275]
ERTi-4	Unalloyed Ti CP4	80 [550]	70 [483]
ERTi-5	Ti-6Al-4V	130 [895]	120 [828]
ERTi-7	Ti-0.15Pd	50 [345]	40 [275]

Applications & Titanium Advantages

Fine straight titanium wire is used for filter mesh, wire cloth, precision components, eyewear and jewellery, and as welding filler wire for titanium parts. Its low weight, high strength, resistance to chlorides and oxidizing media, and stable bright surface help products stay accurate and durable in fresh water, salt water and mild chemical service.

Quality, Customization & Inquiry

LHTI supplies this titanium wire under ISO 9001 quality control with TUV, SGS and BV reports available. Diameter, cut length, coil weight and delivery condition can be customized to your requirement. Please send your drawing or specification, and a quotation will be provided promptly.
