Home > products > Titanium Flange > Ni200 UNS N02200 Pure Nickel Flange Type11 B1 EN1092 - 1

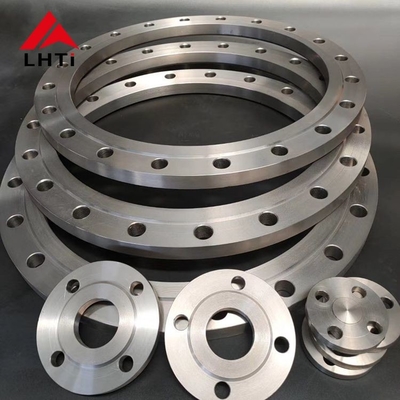

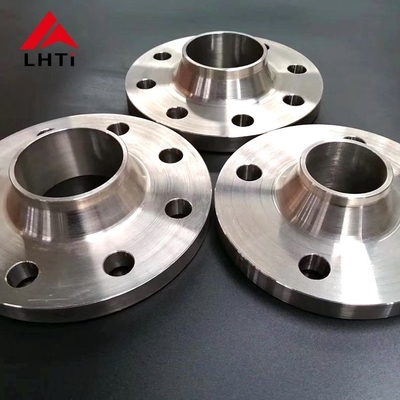

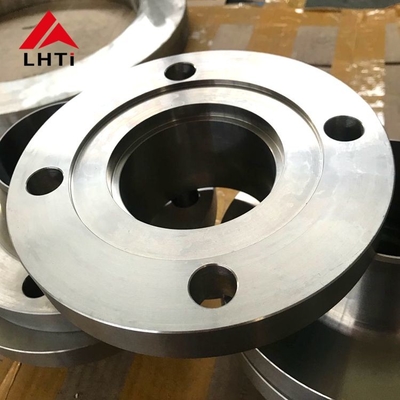

Ni200 UNS N02200 Pure Nickel Flange Type11 B1 EN1092 - 1

Product Details

Place of Origin: China

Brand Name: LH

Certification: ISO9001:2015

Model Number: LHNi

Payment & Shipping Terms

Minimum Order Quantity: 5pcs

Price: USD12.00-58.00 per piece

Packaging Details: Plywood box with soft foam for additional protection

Delivery Time: 10-25 work days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 10000pcs per month

Get Best Price
Highlight:

Weld Neck Nickel Flange

,

Ni200 Weld Neck Flange

,

Pure Nickel Flange

Ni (Min)::
99.5%
Standard:
ANSI, Bs, DIN, GB, ISO, JIS, ASME
Type:
WN Flange
Product Name::
Flange Ni200 UNS N02200 Nickel Flange Type11 B1 EN1092-1 Price
Material:
Pure Nickel
Model Number:
Ni200, Ni201, Monel, Inconel, Hastelloy Etc.
Process:
Forging+machining+heating Treatment
Surface Treatment::
CNC Marchined
Ni (Min)::
99.5%
Standard:
ANSI, Bs, DIN, GB, ISO, JIS, ASME
Type:
WN Flange
Product Name::
Flange Ni200 UNS N02200 Nickel Flange Type11 B1 EN1092-1 Price
Material:
Pure Nickel
Model Number:
Ni200, Ni201, Monel, Inconel, Hastelloy Etc.
Process:
Forging+machining+heating Treatment
Surface Treatment::
CNC Marchined
Ni200 UNS N02200 Pure Nickel Flange Type11 B1 EN1092 - 1

 Ni200 UNS N02200 nickel flange Type11 B1 EN1092-1 price



Ni200 UNS N02200 Pure Nickel Flange Type11 B1 EN1092 - 1 0



1.Nickel flanges function



Nickel Flange connection is an important connection method for pipeline construction.

The flange connection is easy to use and can withstand large pressures.



Wholesale High quality Ni200, Ni201, N4, N6 18650 pure nickel strip for battery

It has good mechanical strength,corrosion-resistant and heat-resistance strength.
It is widely used in electric apparatus,chemical machinery,ood processing equipment,rechargeable batteriesomputers, cellular
Phone, power tools, camcorders and so on.

Alloy Ni% Mn% Fe% Si% Cu% C% S%
Nickel 201 Min 99 Max 0.35 Max 0.4 Max 0.35 Max 0.25 Max 0.02 Max 0.01
Nickel 200 Min 99.2 Max 0.35 Max 0.4 Max 0.35 Max 0.25 Max 0.15 Max 0.01







2. Production Information



Pure nickel
Composition (%)
Ni +Co
Cu
Mn
C
Fe
Si
S
N2
≥99.98
≤0.001
≤0.002
≤0.005
≤0.007
≤0.003
≤0.001
N4
≥99.90
≤0.015
≤0.002
≤0.01
≤0.04
≤0.13
≤0.001
N5(NW2201 N02201)
≥99.00
≤0.25
≤0.35
≤0.02
≤0.40
≤0.30
≤0.01
N6
≥99.50
≤0.10
≤0.05
≤0.10
≤0.10
≤0.10
≤0.005
N7(NW2200 N02200)
≥99.00
≤0.25
≤0.35
≤0.15
≤0.40
≤0.30
≤0.01
N8
≥99.00
≤0.15
≤0.20
≤0.20
≤0.30
≤0.15
≤0.015
N9
≥98.63
≤0.25
≤0.35
≤0.02
≤0.4
≤0.35
≤0.005
DN
≥99.35
≤0.06
≤0.05
0.02~0.10
≤0.10
0.02~0.10
≤0.005
Hot Sale High Quality customized Ni200 Ni201 Nickel Flange with Factory Pr

3.Different grade Nickel





Physical properties
Alloy grade
Density
Melting point
Thermal conductivity
Specific heat capacity
Elastic Modulus
Resistivity

g/cm3
λ/(W/m•℃)
J/kg•℃
GPa
μΩ•m
Ni201
8.89
1435-1446
79.3
456
205
0.085
Ni200
8.89
1435-1446
70.2
456
205
0.096

Mechanical properties


Material condition
Tensile strength,
Mpa (kgf / mm2), not less than, grades
elongation,
% not less than
grades
Ni201; Ni200
Ni201; Ni200
δ10
δ5
Soft
390 ( 40)
32
35
1/2 Hard
440 ( 45)
10
12
Hard
540 ( 55)
2
3





4.Cooperation with us will provide you a strong guarantee


1. ISO9001:2015
2. The timely delivery rate is 99.8%, sometimes in advance.
3. Excellent after-sale service.
4. Rapid inquiry reply, within 2 hours.
5. Fair payment term
6. Professional technical adviser
7. Material certificate
8. Quality is strictly according to ASTM,DIN,UNS,GB/T standard(manufacturing process,surface treatment,inspections and testing).



Ni200 UNS N02200 Pure Nickel Flange Type11 B1 EN1092 - 1 1Ni200 UNS N02200 Pure Nickel Flange Type11 B1 EN1092 - 1 2Ni200 UNS N02200 Pure Nickel Flange Type11 B1 EN1092 - 1 3

Ni200 UNS N02200 Pure Nickel Flange Type11 B1 EN1092 - 1 4

Customized Nickel flange & Relevant Products are welcomed.

Ni200 UNS N02200 Pure Nickel Flange Type11 B1 EN1092 - 1 5



PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.

Ni200 UNS N02200 Pure Nickel Flange Type11 B1 EN1092 - 1 6
