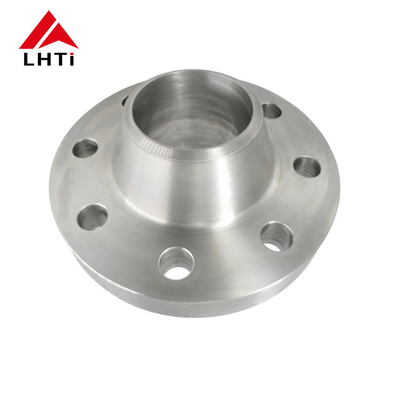

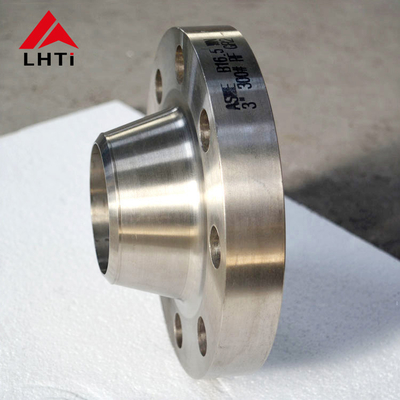

HAST C-276 8" Polishing Weld Neck Flange ANSI 600# RF ASME B16.5 Std

Basic Information
Place of Origin: China
Brand Name: Lihua
Certification: ISO 9001-2015
Model Number: C-276 WN flange
Minimum Order Quantity: 1pc
Price: USD 80/PC-USD 85/PC
Packaging Details: plywood case
Delivery Time: 10- 15 days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 1000PCS Per month
Detail Information
Product Name: HAST C-276 8" WN Flange ANSI-600# RF ASME B16.5 Std Price Material: HAST C-276
Standard: ANSI B16.5 Flange Type: WN
Sealing Type: RF Press: Class 600/ CL600
Size: 3" /DN80 Usage: Chemical
MOQ: 1pcs
High Light:

RF Sealing Weld Neck Flange

,

Polishing Weld Neck Pipe Flanges

,

Weld Neck RF Flange


Product Description

 WN Flange B564-HAST C-276 8" WN flange ANSI-600# RF ASME B16.5 Std price

1.Product Description
item
WN flange
size
8"
Standard
ANSI, bs, DIN, GB, ISO, JIS, Jpi, ASME
Material
C276
Application
Connectors Used
Pressure
600#
Standard or Nonstandard
EN DIN ANSI JIS GOST
Surface treatment
Polishing
MOQ
1 Piece
Flange Type
welded neck
SEALING FACE
RTJ RF FF Face





Weld Neck Flanges

Standard Specification: ASTM B381/ASME SB381

Standard: ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.

Size: 18’’

Class/Pressure: 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64, etc/






Type
weld neck flange, slip on flange, blind flange, tube sheet, threaded flange, socket weld flange, plate flange, spectacle blind, LWN, Orifice flange, anchor flange etc.
OD
15-6000mm
Pressure
150#-2500#,PN0.6-PN400,5K-40K,API 2000-15000, customized
Dimension standard
ANSI B16.5,EN1092-1, SABA1123, JIS B2220, DIN, GOST,UNI,AS2129, API 6A, etc.
Wall thickness
SCH5S, SCH10S, SCH10, SCH40S,STD, XS, XXS, SCH20,SCH30,SCH40, SCH60,
SCH80, SCH160, XXS and etc.
Application
Petrochemical industry;avation and aerospace industry;pharmaceutical industry;
gas exhaust;power plant;ship building;water treatment,etc.
Stainless steel
A182F304/304L, A182 F316/316L, A182F321, A182F310S,A182F347H,A182F316Ti, A403 WP317, 904L, 1.4301,1.4307,1.4401,1.4571,1.4541, 254Mo and etc.
Carbon steel
A105, A350LF2, Q235, St37, St45.8, A42CP, E24 , A515 Gr60, A515 Gr 70 and etc.
Duplex steel
UNS31803, SAF2205, UNS32205, UNS31500, UNS32750 , UNS32760, 1.4462,1.4410,1.4501 and etc.
Pipeline steel
A694 F42, A694F52, A694 F60, A694 F65, A694 F70, A694 F80 etc.
Nickel alloy
inconel600, inconel625, inconel690, incoloy800, incoloy 825, incoloy 800H, C22, C-276, Monel400, Alloy20 etc.
Cr-Mo alloy
A182F11, A182F5, A182F22, A182F91, A182F9, 16mo3 etc.





2. Flange size comparis



HAST C-276 8" Polishing Weld Neck Flange ANSI 600# RF ASME B16.5 Std 0

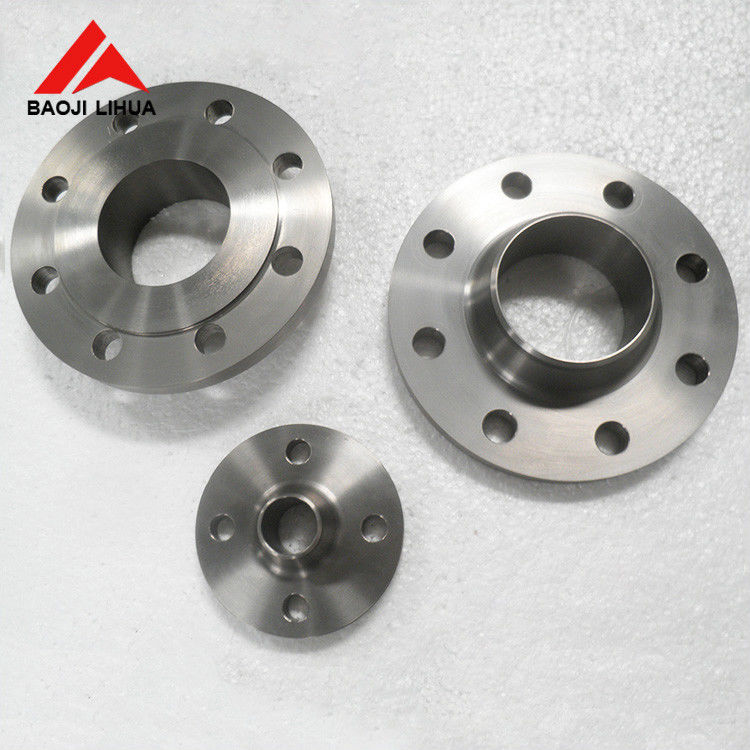

3.Flange type

HAST C-276 8" Polishing Weld Neck Flange ANSI 600# RF ASME B16.5 Std 1



Available Flange types

a.Slip On Flange
b.Welding Neck Flange
c.Threaded Flange(Screwed Flange)
d.Plain Flange
e.Blind Flange
f.Lap Joint Flange
g.Wocket Welding Flange
h. welded flange
i. titanium large-diameter flange




Item HC-276 C-22 C-4 B2 B3 N
C ≤0.01 ≤0.015 ≤0.015 ≤0.02 ≤0.01 0.04-0.08
Mn ≤1 ≤0.5 ≤1 ≤1 ≤3 ≤1
Fe 4-7 2-6 ≤3 ≤2 ≤1.5 ≤5
P ≤0.04 ≤0.02 ≤0.04 ≤0.04 -- ≤0.015
S ≤0.03 ≤0.02 ≤0.03 ≤0.03 -- ≤0.02
Si ≤0.08 ≤0.08 ≤0.08 ≤0.1 ≤0.1 ≤1
Ni rest rest rest rest ≥65 rest
Co ≤2.5 ≤2.5 ≤2 ≤1 ≤3 ≤0.2
Ti+Cu -- -- ≤0.7 -- ≤0.4 ≤0.35
Al+Ti -- -- -- -- ≤0.5 ≤0.5
Cr 14.5-16.5 20-22.5 14-18 ≤1 ≤1.5 6-8
Mo 15-17 12.5-14.5 14-17 26-30 ≤28.5 15-18
B -- -- -- -- -- ≤0.01
W 3-4.5 2.5-3.5 -- -- ≤3 ≤0.5
V ≤0.35 ≤0.35 -- 0.2-0.4 -- ≤0.5
4. Detailed Images

HAST C-276 8" Polishing Weld Neck Flange ANSI 600# RF ASME B16.5 Std 2








.jpg





5.Titanium flange Production Process



Titanium Blind Flange Type 05














































6.Inspection
1. UT test
2. PT test
3. MT test
4. Dimension test

Before delivery, our QC team will arrange NDT test and dimension inspection.
Also accept TPI(third party inspection).
HAST C-276 8" Polishing Weld Neck Flange ANSI 600# RF ASME B16.5 Std 5
7.Markings
1. Each layer use plastic film to protect the surface
2. For all stainless steel are packed by plywood case. For bigger size carbon flange are packed by plywood pallet. Or can be customized packing.
3. Shipping mark can make on request
4. Markings on products can be carved or printed. OEM is accepted.
HAST C-276 8" Polishing Weld Neck Flange ANSI 600# RF ASME B16.5 Std 6
HAST C-276 8" Polishing Weld Neck Flange ANSI 600# RF ASME B16.5 Std 7
HAST C-276 8" Polishing Weld Neck Flange ANSI 600# RF ASME B16.5 Std 8
8.Why Choose Us
20 YEAR PRODUCTION EXPERIENCE AND CLIENTS FROM 80+ COUNTRIES AND WOULD LIKE ESTABLISH LONG TERM RELATIONSHIP WITH US

9. FAQ

1. Any discount?

A: The prices we quote are all wholesale prices in the first place. Meanwhile, our best price will be offered according to your order quantity, so please specify your purchase quantity when you inquire. The more your order, the better discounts we will offer.



2. Are you a manufacturer?

A: Yes. As a manufacturer with 15 years of experience, we’ve gained adequate expertise and proficiency. Relying on our own factory, we offer you our best quality products as we have fully equipped the Product Department and QC Department.



3. How do I know if my products are delivered?

A: We will inform you Tracking No. for your reference or you can contact us anytime for shipment information.



4. Has your company acquired any certificate?

A: We are a certified manufacturer with our auto parts approved by the ISO9001 Quality Management System.



5. How about the quality of the products?

A: We guarantee strict control over every detail of the products. Each product is carefully inspected and tested before delivery.



6. What about payment terms?

A: T/T, L/C, Western Union Paypal are accepted.



7. How about the delivery time?

A: Usually within 5-7 days via express delivery. But it depends on your order quantity as well.



8. How about the delivery time?

A: Usually within 5-7 days via express delivery. But it depends on your order quantity as well.



9. If you have additional questions, please feel free to contact us.
