| Place of Origin: | Baoji City Shaanxi Province |
|---|---|
| Brand Name: | LHTi |
| Certification: | ISO9001 |
| Model Number: | LHTI-015 |
| Minimum Order Quantity: | 100pcs |
| Price: | USD18-85 per pc |
| Packaging Details: | Standard foreigh packing, plastic inside and plywood case outside Or as the clients' request |
| Delivery Time: | 7-30work days |
| Payment Terms: | Western Union, T/T, |
| Supply Ability: | 5 Ton per month |
| Grade: | UNS32750 Gr2, Gr5, Gr9 | Stype: | ANSI, DIN, ISO, JIS, ASME, ASME B16.47 ANSI B16.5 |
|---|---|---|---|
| Surface: | FF, RF, TG, RJ, Etc | Standard: | ANSI, DIN, JIS, ASME |
| Pressure Rating: | 0.6~32MPA | Technique: | Forged And CNC Machined |
| Payment: | Alibaba Trade Assurance, TT, Western Union Etc | Application: | Chemical Industry |
| Inspection: | UT% | Certificate: | ISO9001, TUV Etc. |

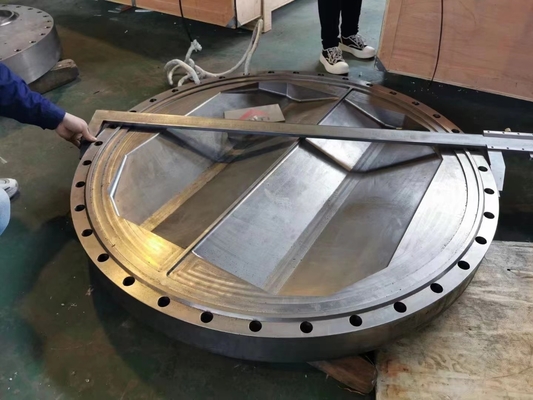

| High Light: | Channel Shell Chamber Titanium Flange,Metallurgical Blind Flange,Chemical Welding Neck Flange |
||

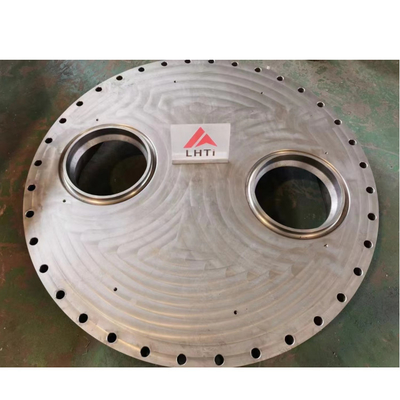

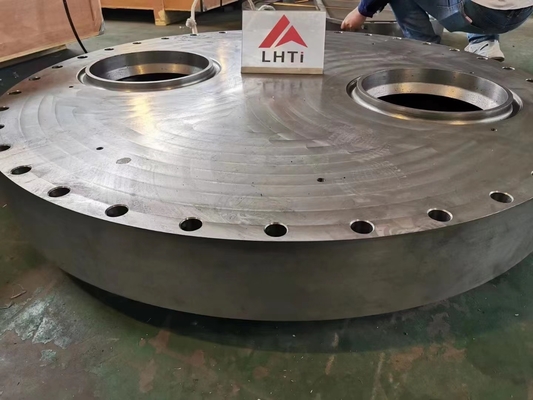

DIN Spectacle Blind Titanium Flange Titanium Blank Flange Customized Size
1. Product parameters
| Titanium Weld Neck Flange Class 300 | ||||||||||
| Nom. Pipe Size | Flange Dia. | Flange Thick. | Hub Dia. At Base | Raised Face Dia. | Hub Dia. At Weld Point | No. of Holes | Dia. Of Bolts | Dia. Of Bolt Circle | Bore Dia. | Length Thru Hub |
| 1/2 | 3-3/4 | 9/16 | 1-1/2 | 1-3/8 | 0.84 | 4 | 2-5/8 | 1/2 | 0.62 | 2-1/16 |
| 3/4 | 4-5/8 | 5/8 | 1-7/8 | 1-11/16 | 1.05 | 4 | 3-1/4 | 5/8 | 0.82 | 2-1/4 |
| 1 | 4-7/8 | 11/16 | 2-1/8 | 2 | 1.32 | 4 | 3-1/2 | 5/8 | 1.05 | 2-7/16 |
| 1-1/4 | 5-1/4 | 3/4 | 2-1/2 | 2-1/2 | 1.66 | 4 | 3-7/8 | 5/8 | 1.38 | 2-9/16 |
| 1-1/2 | 6-1/8 | 13/16 | 2-3/4 | 2-7/8 | 1.90 | 4 | 4-1/2 | 3/4 | 1.61 | 2-11/16 |
| 2 | 6-1/2 | 7/8 | 3-5/16 | 3-5/8 | 2.38 | 8 | 5 | 5/8 | 2.07 | 2-3/4 |
| 2-1/2 | 7-1/2 | 1 | 3-15/16 | 4-1/8 | 2.88 | 8 | 5-7/8 | 3/4 | 2.47 | 3 |
| 3 | 8-1/4 | 1-1/8 | 4-5/8 | 5 | 3.50 | 8 | 6-5/8 | 3/4 | 3.07 | 3-1/8 |
Available Flange types
| a.Slip On Flange |
| b.Welding Neck Flange |
| c.Threaded Flange(Screwed Flange) |
| d.Plain Flange |
| e.Blind Flange |
| f.Lap Joint Flange |
| g.Wocket Welding Flange |
| h. welded flange |
| i. titanium large-diameter flange |
3. Available Dimensions
| OD ( mm) | I D ( mm) | HEIGHT ( mm) |
| 200-400 | 100-300 | 35-120 |
| 400-700 | 150-500 | 40-160 |
| 700-900 | 300-700 | 50-480 |
| 900-1300 | 400-900 |
70-250 |
1. Any discount?
A: The prices we quote are all wholesale prices in the first place. Meanwhile, our best price will be offered according to your order quantity, so please specify your purchase quantity when you inquire. The more your order, the better discounts we will offer.
2. Are you a manufacturer?
A: Yes. As a manufacturer with 15 years of experience, we’ve gained adequate expertise and proficiency. Relying on our own factory, we offer you our best quality products as we have fully equipped the Product Department and QC Department.
3. How do I know if my products are delivered?
A: We will inform you Tracking No. for your reference or you can contact us anytime for shipment information.
4. Has your company acquired any certificate?
A: We are a certified manufacturer with our auto parts approved by the ISO9001 Quality Management System.
5. How about the quality of the products?
A: We guarantee strict control over every detail of the products. Each product is carefully inspected and tested before delivery.
6. What about payment terms?
A: T/T, L/C, Western Union Paypal are accepted.
7. How about the delivery time?
A: Usually within 5-7 days via express delivery. But it depends on your order quantity as well.
8. How about the delivery time?
A: Usually within 5-7 days via express delivery. But it depends on your order quantity as well.
9. If you have additional questions, please feel free to contact us.
Baoji Lihua Group
As a leading manufacturer of titanium products for over 17 years, we supply a series of high-performance products for titanium products, including titanium flange, titanium bar, and titanium wire, etc.
