Gr2 Titanium Weld Neck Flange Exhaust Pipe Fittingss

Product Details

Place of Origin: Baoji, China

Brand Name: LIHUA

Certification: ISO9001, TUV

Model Number: LH-WN

Payment & Shipping Terms

Minimum Order Quantity: 3 pieces

Packaging Details: Wrapped by foam contained in plywood box for export

Delivery Time: 3-15 working days

Payment Terms: L/C, T/T, Western Union etc.

Supply Ability: 50000 pcs per month

Get Best Price
Highlight:

Weld Neck Titanium Exhaust Flange

,

Exhaust Weld Neck Pipe Flanges

,

Titanium Weld Neck Blind Flange

Product Name:
Best Price Titanium Flange Titanium Best Price ASME/ANSI B16.5 Gr2 Exhaust Pipe Fittings
Standard:
ASME B16.5 ASTM B381
Material:
Gr2 Gr5 Gr7 Gr12
Application:
Oil & Gas Industry
Sealing Surface:
RF
Size:
NPS 1/2 - NPS 24(DN 10 - 2000)
Pressure:
150#-2500#
Surface:
Polished
Technique:
Forged And CNC Machined
Inspection:
Ultrasonic Testing & Material Test Report EN10204.3.1
Product Name:
Best Price Titanium Flange Titanium Best Price ASME/ANSI B16.5 Gr2 Exhaust Pipe Fittings
Standard:
ASME B16.5 ASTM B381
Material:
Gr2 Gr5 Gr7 Gr12
Application:
Oil & Gas Industry
Sealing Surface:
RF
Size:
NPS 1/2 - NPS 24(DN 10 - 2000)
Pressure:
150#-2500#
Surface:
Polished
Technique:
Forged And CNC Machined
Inspection:
Ultrasonic Testing & Material Test Report EN10204.3.1
Gr2 Titanium Weld Neck Flange Exhaust Pipe Fittingss
Best Price Titanium Flange Titanium Best Price ASME/ANSI B16.5 Gr2 Exhaust Pipe Fittings

Titanium wn flange/ titanium welding neck flange


Titanium welding neck flanges have good strength, extremely hard bearings and many other functions are available. These can be used in marine applications, chemical industry and many other forms. It provides high performance and packaging for safety. This is easy to install and can be used in a variety of other applications, such as chemical and mechanical. Titanium flanges are available in many other standards and materials.



Product name Titanium flange
Type WN
Standards ASME B16.5 ASTM B381
Size 1/2" to 36"
Pressure Ratings Class 150, 300#, 600#, CL 900, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64
Grade gr2 gr5 gr7 gr12
Other Flanges Types Lapped Joint Flanges, Flat Flanges, Blind Flanges, Square Flanges, RTJ Flanges, Long Neck Weld Flanges, Reducing Flanges, Nipo Flanges, Threaded Flanges, Orifice Flanges, Expander Flanges, Socket Weld Flanges, High Hub Blinds Flanges, Forged Flanges, Slip On Flanges etc



ASTM B265



Fe max O max N max C max H max Pd Al V Mo Ni Elong'n Rp 0.2 Rm
No wt% wt% wt% wt% wt% wt% wt% wt% wt% wt% % MPa MPa
Grade 2 0.3 0.25 0.03 0.1 0.015 / / / / / 20 275-450 345-480
Grade 5 0.4 0.2 0.05 0.1 0.015 / 5.5-6.7 /   / 10 800-1100 890-1400
Grade 7 0.3 0.25 0.03 0.1 0.015 0,12-0,25 / / / / 20 275-450** 345
Grade 12 0.3 0.25 0.03 0.1 0.015 / / / 0.3 0.8 25 414-460 499-600




Detailed images:

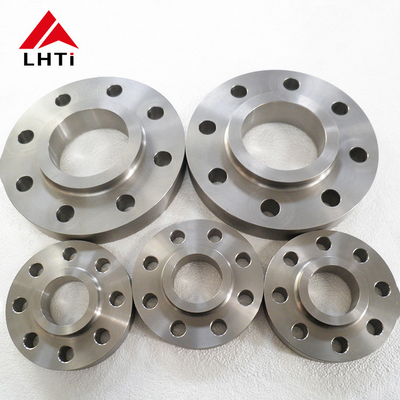

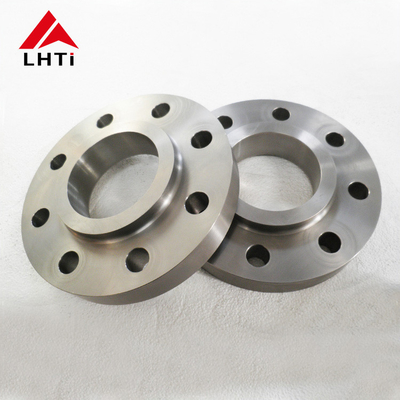

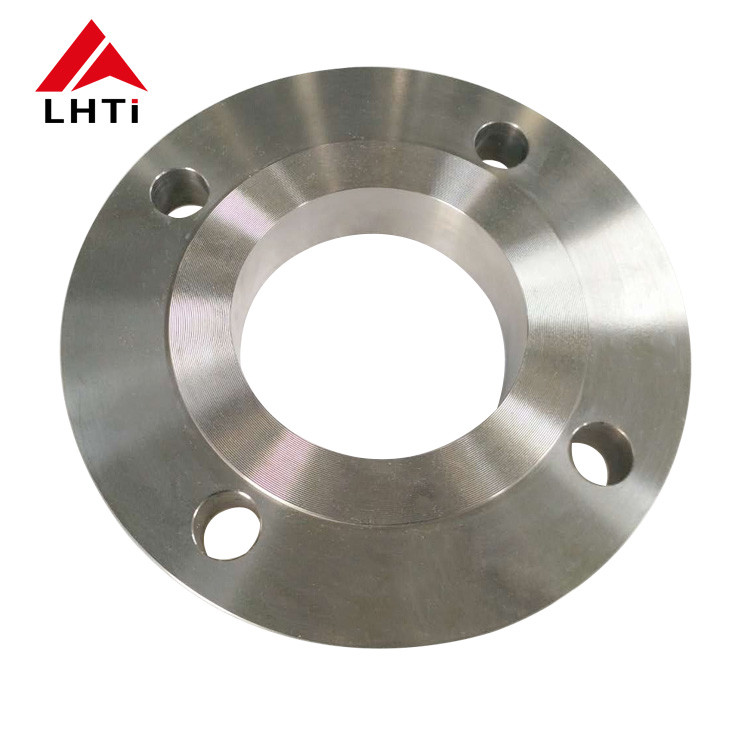

 Gr2 Titanium Weld Neck Flange Exhaust Pipe Fittingss 0Gr2 Titanium Weld Neck Flange Exhaust Pipe Fittingss 1Gr2 Titanium Weld Neck Flange Exhaust Pipe Fittingss 2

Titanium Blind Flange Type 05





Gr2 Titanium Weld Neck Flange Exhaust Pipe Fittingss 4



Packagings:

Gr2 Titanium Weld Neck Flange Exhaust Pipe Fittingss 5



Titanium flange Production Process



Titanium Blind Flange Type 05















































About us

We are a titanium manufacturer with over 15 years production and export experience.We offer different titanium flanges: titanium blind flanges, necks and lap flanges,slip on flange, plate flange etc, in a range of diameters from ½ "to 24". Dimensional tolerance to ASTM B/SB 381. Whether you are working on a production job that requires thousands of pieces, or a project that requires only one titanium pipe flange, we can help. You'll get everything you need to get the job done, no matter how big or small your needs are!
