Oil Industry Slip On Weld Neck Flange Titanium Forged

Brand Name:	LIHUA
Model Number:	LH-WN
MOQ:	3 pieces
Payment Terms:	L/C, T/T, Western Union etc.
Supply Ability:	50000 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001, TUV

Product Name:

Good Quality Titanium Forged Welding Neck Flange/Slip On Flange

Standard:

ASME B16.5 ASTM B381

Material:

Gr2 Gr5 Gr7 Gr12

Application:

Oil & Gas Industry

Sealing Surface:

Size:

NPS 1/2 - NPS 24(DN 10 - 2000)

Pressure:

150#-2500#

Surface:

Polished

Technique:

Forged And CNC Machined

Inspection:

Ultrasonic Testing & Material Test Report EN10204.3.1

Packaging Details:

Wrapped by foam contained in plywood box for export

Supply Ability:

50000 pcs per month

Highlight:

Slip On Titanium Pipe Flange

Oil Industry Titanium Weld Neck Flange

Forged Titanium Exhaust Flange

Product Description

Good Quality Titanium Forged Welding Neck Flange/Slip on Flange

Titanium wn flange/ titanium welding neck flange

Titanium welding neck flanges have good strength, extremely hard bearings and many other functions are available. These can be used in marine applications, chemical industry and many other forms. It provides high performance and packaging for safety. This is easy to install and can be used in a variety of other applications, such as chemical and mechanical. Titanium flanges are available in many other standards and materials.

Product name	Titanium flange
Type	WN
Standards	ASME B16.5 ASTM B381
Size	1/2" to 36"
Pressure Ratings	Class 150, 300#, 600#, CL 900, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64
Grade	gr2 gr5 gr7 gr12
Other Flanges Types	Lapped Joint Flanges, Flat Flanges, Blind Flanges, Square Flanges, RTJ Flanges, Long Neck Weld Flanges, Reducing Flanges, Nipo Flanges, Threaded Flanges, Orifice Flanges, Expander Flanges, Socket Weld Flanges, High Hub Blinds Flanges, Forged Flanges, Slip On Flanges etc

ASTM B265	Fe max	O max	N max	C max	H max	Pd	Al	V	Mo	Ni	Elong'n	Rp 0.2	Rm
No	wt%	wt%	wt%	wt%	wt%	wt%	wt%	wt%	wt%	wt%	%	MPa	MPa
Grade 2	0.3	0.25	0.03	0.1	0.015	/	/	/	/	/	20	275-450	345-480
Grade 5	0.4	0.2	0.05	0.1	0.015	/	5.5-6.7	/		/	10	800-1100	890-1400
Grade 7	0.3	0.25	0.03	0.1	0.015	0,12-0,25	/	/	/	/	20	275-450**	345
Grade 12	0.3	0.25	0.03	0.1	0.015	/	/	/	0.3	0.8	25	414-460	499-600

Detailed images:

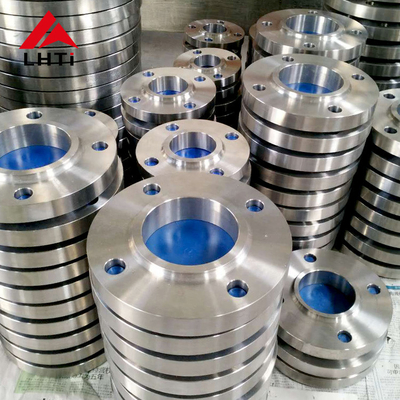

Oil Industry Slip On Weld Neck Flange Titanium Forged 0

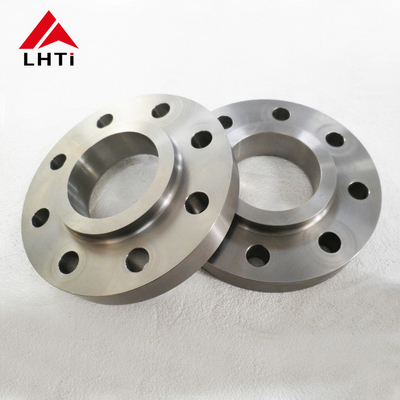

Oil Industry Slip On Weld Neck Flange Titanium Forged 3

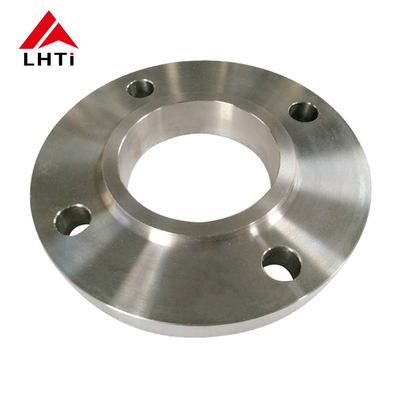

Oil Industry Slip On Weld Neck Flange Titanium Forged 4

Packagings:

Oil Industry Slip On Weld Neck Flange Titanium Forged 5

Titanium flange Production Process

Oil Industry Slip On Weld Neck Flange Titanium Forged 6

About us

We are a titanium manufacturer with over 15 years production and export experience.We offer different titanium flanges: titanium blind flanges, necks and lap flanges,slip on flange, plate flange etc, in a range of diameters from ½ "to 24". Dimensional tolerance to ASTM B/SB 381. Whether you are working on a production job that requires thousands of pieces, or a project that requires only one titanium pipe flange, we can help. You'll get everything you need to get the job done, no matter how big or small your needs are!

Oil Industry Slip On Weld Neck Flange Titanium Forged 7

Oil Industry Slip On Weld Neck Flange Titanium Forged 8

Oil Industry Slip On Weld Neck Flange Titanium Forged 9
