Product Details
Place of Origin: Baoji, China
Brand Name: LIHUA
Certification: ISO9001, TUV
Model Number: LH-WN
Payment & Shipping Terms
Minimum Order Quantity: 3 pieces
Packaging Details: Wrapped by foam contained in plywood box for export
Delivery Time: 3-15 working days
Payment Terms: L/C, T/T, Western Union etc.
Supply Ability: 50000 pcs per month
Product Name: |
GR2/GR5 Factory Direct-sales Socket Weld/ Slip On/welding Neck/ Threaded/ Lap Joint/ Plate /blind Flange |
Standard: |
ASME B16.5 ASTM B381 |
Material: |
Gr2 Gr5 Gr7 Gr12 |
Application: |
Oil & Gas Industry |
Sealing Surface: |
RF |
Size: |
NPS 1/2 - NPS 24(DN 10 - 2000) |
Pressure: |
150#-2500# |
Surface: |
Polished |
Technique: |
Forged And CNC Machined |
Inspection: |
Ultrasonic Testing & Material Test Report EN10204.3.1 |
Product Name: |
GR2/GR5 Factory Direct-sales Socket Weld/ Slip On/welding Neck/ Threaded/ Lap Joint/ Plate /blind Flange |
Standard: |
ASME B16.5 ASTM B381 |
Material: |
Gr2 Gr5 Gr7 Gr12 |
Application: |
Oil & Gas Industry |
Sealing Surface: |
RF |
Size: |
NPS 1/2 - NPS 24(DN 10 - 2000) |
Pressure: |
150#-2500# |
Surface: |
Polished |
Technique: |
Forged And CNC Machined |
Inspection: |
Ultrasonic Testing & Material Test Report EN10204.3.1 |
Titanium welding neck flanges have good strength, extremely hard bearings and many other functions are available. These can be used in marine applications, chemical industry and many other forms. It provides high performance and packaging for safety. This is easy to install and can be used in a variety of other applications, such as chemical and mechanical. Titanium flanges are available in many other standards and materials.
| Product name | Titanium flange |
| Type | WN |
| Standards | ASME B16.5 ASTM B381 |
| Size | 1/2" to 36" |
| Pressure Ratings | Class 150, 300#, 600#, CL 900, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 |
| Grade | gr2 gr5 gr7 gr12 |
| Other Flanges Types | Lapped Joint Flanges, Flat Flanges, Blind Flanges, Square Flanges, RTJ Flanges, Long Neck Weld Flanges, Reducing Flanges, Nipo Flanges, Threaded Flanges, Orifice Flanges, Expander Flanges, Socket Weld Flanges, High Hub Blinds Flanges, Forged Flanges, Slip On Flanges etc |
|
ASTM B265
|
Fe max | O max | N max | C max | H max | Pd | Al | V | Mo | Ni | Elong'n | Rp 0.2 | Rm |
| No | wt% | wt% | wt% | wt% | wt% | wt% | wt% | wt% | wt% | wt% | % | MPa | MPa |
| Grade 2 | 0.3 | 0.25 | 0.03 | 0.1 | 0.015 | / | / | / | / | / | 20 | 275-450 | 345-480 |
| Grade 5 | 0.4 | 0.2 | 0.05 | 0.1 | 0.015 | / | 5.5-6.7 | / | / | 10 | 800-1100 | 890-1400 | |
| Grade 7 | 0.3 | 0.25 | 0.03 | 0.1 | 0.015 | 0,12-0,25 | / | / | / | / | 20 | 275-450** | 345 |
| Grade 12 | 0.3 | 0.25 | 0.03 | 0.1 | 0.015 | / | / | / | 0.3 | 0.8 | 25 | 414-460 | 499-600 |

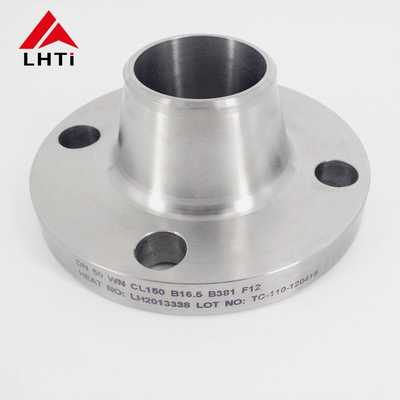

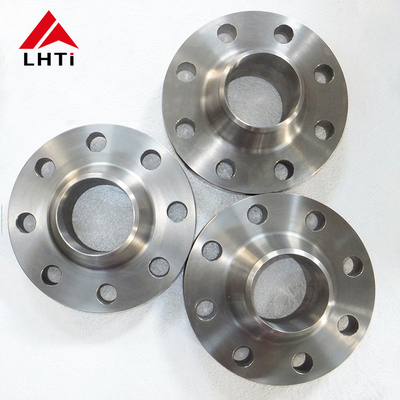

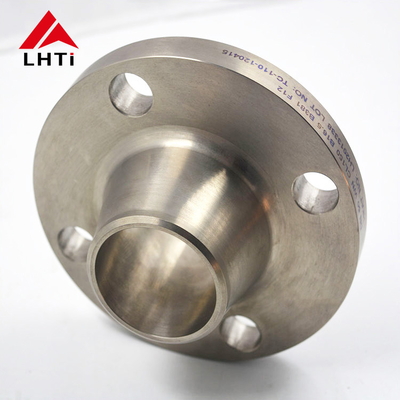

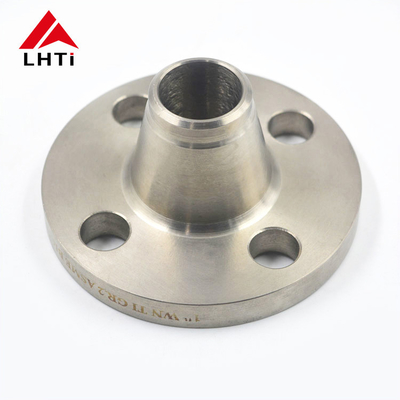

Detailed images:
Packagings:
Titanium flange Production Process
About us
We are a titanium manufacturer with over 15 years production and export experience.We offer different titanium flanges: titanium blind flanges, necks and lap flanges,slip on flange, plate flange etc, in a range of diameters from ½ "to 24". Dimensional tolerance to ASTM B/SB 381. Whether you are working on a production job that requires thousands of pieces, or a project that requires only one titanium pipe flange, we can help. You'll get everything you need to get the job done, no matter how big or small your needs are!
