|Place of Origin:||China|
|Certification:||ISO9001:2015; TUV; SGS;BV|
|Model Number:||Titanium wire|
|Minimum Order Quantity:||20 kg|
|Price:||USD16.00-28.00 per kg|
|Packaging Details:||Plastic bag with laber, outside plastic box, then plywod box|
|Delivery Time:||7-20 work days|
|Payment Terms:||T/T, MoneyGram, L/C, Western Union, Paypal|
|Supply Ability:||200000 kg per month|
|Material:||Best Price And High Quality Ti6AL4V ELI Medical Grade Thin Titanium Wire Price Of Titanium Fishing Wire||Grade:||Gr1, Gr2|
|Diameter:||0.5mm-3mm||Straight Wire Length:||1000mm-3000mm|
|MOQ:||20 Kg||Package Box:||5kg Per Plastic Box, Or As Your Request|
|Certificate:||ISO9001:2008||Processing Service:||Bending, Cutting|
|Package Coil:||10~15kg ,or As Per Buyer Requirement||Advantage:||Corrosion Resistance, High Strength, Light Quality|
Ti6AL4V Titanium Fishing Wire,
Medical Grade Thin Titanium Wire,
Fishing Thin Titanium Wire
Best Price and High Quality Ti6AL4V ELI medical grade Thin titanium wire price of titanium fishing wire
1. M (Annealed soft state);
2. R (Processing of soft state);
3. Y (Processing of hard state);
4. D (Memory training, Dedicated Nitinol).
Packing: Soft paper or plastic bag as inside, wooden case as outside,
or according to customer's demand
1. Available Diameter, Type & Packing
|Size (mm)||Dia 0.5||Dia 0.8||Dia 1.0||Dia 1.2||Dia 1.6||Dia 2.0||Dia 2.4||Dia 2.5||Dia 3.0||Dia 3.2||Dia 4.0|
2.Guide to choose of filler metal for general purpose titanium welding
|ASTM Base Metal Grade||Base metal||Normal composition||Recommended Filler Metal|
|UTS(min.) ksi[Mpa]||YS(min.) ksi[Mpa]|
|Grade 1||35||20||Unalloyed Ti CP1||ERTi-1|
|Grade 2||50||40||Unalloyed Ti CP2||ERTi-2|
|Grade 4||80||70||Unalloyed Ti CP4||ERTi-4|
|Grade 5||130||120||Ti 6AL-4V||ERTi-5|
|Grade 7||50||40||Ti 0.15Pd||ERTi-7|
3.Chemical compostion requirements
4. Definition of Different Levels
ERTI-1: Grade 1 is the lowest strength unalloyed (or Commercially Pure-CP)grade. Grade 1 is used in applications where ductility is paramount,such as explosive cladding, loose linings, expanded metal, and deep drawing applications. It is also used in electrolytic applications like coated anode substrates for production of chlorine and sodium chlorate.
ERTI-2: Grade 2 is the "workhorse"of the industrial corrosion market and most common unalloyed(or commercially Pure-CP)grade. Grade 2 is generally the most readily available in all product forms and has the lowest cost . It is used for process equirpment like pressure vessels ,columns ,tanks,heat exchangers,shafts,blowers and fans,conderser tubing ,valves,fittings and pipe.
ERTI-4: Grade 4 is the highest strenth unalloyed(or Commerically Pure-CP) grade.Grade 4 is rarely used I corrosion service ,but have beeen used(under AMS Specifications)in aircraft components where its higher strength can reduce the weight of components like bulk-heads and firewalls.

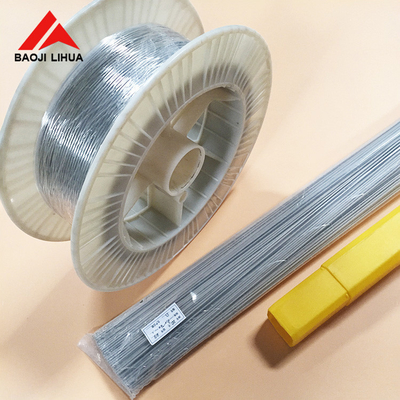

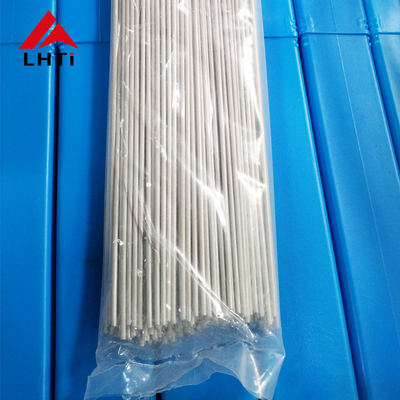

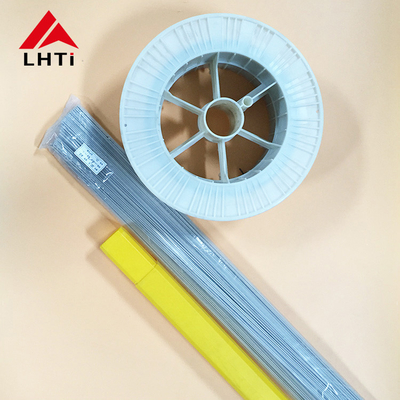

5. Detailed Images and Application
6. Our Service
|Q1.--How can you ensure the product quality?|
--All products are manufactured according to ASTM standard (Bolts are according to ASME
MTC Material Test Certification.
|Q2.--Can you print our LOGO on the products?|
|--Sure, and we welcome the customerized products.|
|Q3.--Can we get the free sample?|
|Q4.--What about the payment terms?|
|--T/T, L/C,Paypal,Western Union,Escrew and MoneyGram etc are all accepted.|
|Q5.--Do you have your website?|
|--Yes, Please click here. http://www.metalstitanium.com(Independent website)|
|Q6.--What is the necessary information for a inquiry?|
--Product name, specification, material grade and quantity. If customized products, your drawing and
special requests also needed.
As a leading manufacturer of titanium products for over 15 years, we supply a series of high-performance products for titanium products, including titanium flange, titanium bar, and titanium wire, etc.
If you'd like to know more about our products, please feel free to contact me.
Your early reply will be highly appreciated.
