Annealed Ti6Al4V Titanium Rod ASTM B348

Name: Annealed Ti6Al4V Titanium Rod ASTM B348
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: Titanium rod
Price: 84.00 USD
Availability: InStock

Brand Name:	LHTi
Model Number:	Titanium rod
MOQ:	50 kg
Payment Terms:	T/T,,L/C,Western Union,Paypal
Supply Ability:	300000 kg per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001:2015; TUV; SGS;BV

Diameter:

3mm-350mm

Material:

Pure/alloy Titanium

Surface:

Bright,Polished,Pickling

Condition:

Annealed; M

MOQ:

50 Kg

Packing:

Standard Export Packing

Processing Service:

Bending, Welding, Decoiling, Cutting, Punching

Length:

Customized

Technique:

Forged

Advantage:

Corrosion Resistance

Packaging Details:

Plywood box with soft foam for additional protection

Supply Ability:

300000 kg per month

Highlight:

Annealed Titanium Round Stock

Corrosion Resistance Titanium Welding Rod

Ti6al4v Titanium Alloy Bar

Product Description

Annealed Ti6Al4V Titanium Rod ASTM B348

This annealed titanium rod is produced to ASTM B348, ASTM F67, ASTM F136 and AMS 4928 in Gr1, Gr2, Gr5, Gr9 and Gr23 (Gr5 ELI). Stock diameters of 3, 6, 8, 10, 20 and 30 mm are held in lengths of 1000-6000 mm, and the bar is supplied in round, square or hex shape in cold rolled, hot rolled or annealed condition. The polished surface is free from cracks and pitting, and both ends are flattened to keep the length tolerance.

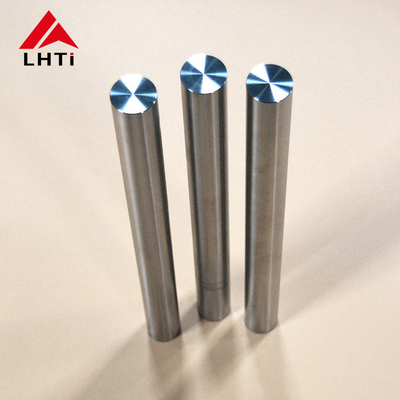

Annealed Ti6Al4V titanium rod

Titanium rod surface detail

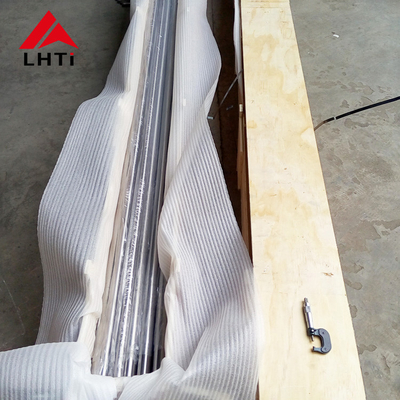

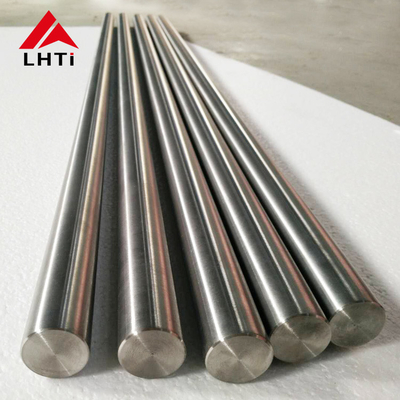

Titanium rod stock

Technical Specifications

Standard	ASTM B348, ASTM F67, ASTM F136, AMS 4928
Material grade	Gr1, Gr2, Gr5, Gr9, Gr23 (Gr5 ELI)
Diameter	3 mm - 350 mm
Length	1000 mm - 6000 mm, or cut to length
Shape	Round bar, square bar, hex bar
Product Status	Cold rolled (Y), hot rolled (R), annealed (M)
Surface	Bright, polished, pickling
Technique	Forged

Chemical Requirements (wt %)

Grade	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Ti
Gr1	0.03	0.08	0.015	0.20	0.18	/	/	/	/	/	bal
Gr2	0.03	0.08	0.015	0.30	0.25	/	/	/	/	/	bal
Gr5	0.05	0.08	0.015	0.40	0.20	5.5-6.75	3.5-4.5	/	/	/	bal
Gr7	0.03	0.08	0.015	0.30	0.25	/	/	0.12-0.25	/	/	bal
Gr9	0.03	0.08	0.015	0.25	0.15	2.5-3.5	2.0-3.0	/	/	/	bal
Gr12	0.03	0.08	0.015	0.30	0.25	/	/	/	0.2-0.4	0.6-0.9	bal

Physical Properties

Grade	Tensile Strength min ksi [MPa]	Yield Strength min ksi [MPa]	Elongation %
1	35 [240]	20 [138]	24
2	50 [345]	40 [275]	20
3	65 [450]	55 [380]	18
4	80 [550]	70 [483]	15
5	130 [895]	120 [828]	10
7	50 [345]	40 [275]	20
9	90 [620]	70 [483]	15
12	70 [483]	50 [345]	18
23	120 [828]	110 [759]	10

Applications & Titanium Advantages

Annealed titanium rod is used for corrosion-resistant machined parts, medical components, chemical and marine equipment, and general industrial fittings. Titanium offers low density, high strength, excellent corrosion resistance and good mechanical stability, so finished parts keep their accuracy and last longer in aggressive service.

Quality, Customization & Inquiry

LHTi produces this titanium rod under ISO 9001:2015, TUV, SGS and BV quality control, with third-party inspection reports and material certificates available. Custom diameters, lengths and shapes are offered, and goods are packed in a plywood box with soft foam. Please send your drawing or specification for a quotation.
