Gr5 Cold rolled Titanium Sheet Polished Alloy Plates For Chemical Industry

Basic Information
Place of Origin: China
Brand Name: LHTi
Certification: ISO9001:2015; TUV; SGS;BV
Model Number: Titanium Sheet
Minimum Order Quantity: 50 kg
Price: USD13.00-38.00 per kg
Packaging Details: Plywood box with soft foam for additional protection
Delivery Time: 7-20 work days
Payment Terms: T/T, MoneyGram, L/C, Western Union
Supply Ability: 200000 kg per month
Detail Information
Standard: ASTM B265 Technology: Cold Rolled
Shape: Straight Surface: Polished, Acid Washing
Grade: GR5, Gr7, Gr9 Processing Service: Bending, Cutting
Advantage: High Performance Application: Chemical Industry, Chemical Industry
Width: 10-1000 Length: 10-2000
High Light:

Gr5 Titanium Alloy Sheet


Cold Rolled Titanium Alloy Plate


Polished Grade 5 Titanium Plate

Product Description

High Quality GR5 GR7 GR9 Ti Plates and Sheets Titanium Alloy best price



1. Titanium Plate Property


Titanium plates and titanium have the same natural properties.


Its features: lightweight, high strength, metallic luster, and good corrosion resistance.


2. Titanium Plate Standard


China Standard : GB / T3621-2007, GB / T13810-2007,


USA Standard: ASTM B265, ASTM F136, ASTM F67,


(AMS4911 is Ti-6AI-4V annealed titanium alloy plate, sheet and strip)


3. Titanium Plate Specification


Common size:


T 0.5-5.0mm x W1000mm x L 2000-3500mm


T 5.0- 30mm x W1000-2500mm x L 3000-6000mm


T 30- 80mm x W1000mm x L 2000mm



4. Advantages of Titanium Materials


Characters of Titanium
1. High Strength Titanium strength/density ratio is better than other metals, components with high strength, good rigity, less weight can be made out of titanium. Titanium is applied for aircrafts engines, frames, skins, fastners and landing gears.
2. Anti-Corrosion Compared with stainless steel, titanium alloy's corrosion is better in moisture laden air, seawater, titanium greatly resists spot corrosion, acid corrosion and stress corrosion. Titanium resists corrosions to alkali, chloride, chlorinated organic sunstances, sulphuric acid, nitric acid.
3. High-Temperature Resistance Titanium application temperature's higher than aluminium alloys. Titanium can work in 450-500℃ for long time. Titanium alloy stil prossesses high strength when working in 150-500℃. Titanium working temperature can be reached to 500℃




5. Chemical requirements



  N C H Fe O Al V Pd Mo Ni Ti
Gr1 0.03 0.08 0.015 0.20 0.18 / / / / / bal
Gr2 0.03 0.08 0.015 0.30 0.25 / / / / / bal
Gr5 0.05 0.08 0.015 0.40 0.20 5.5~6.75 3.5~4.5 / / / bal
Gr7 0.03 0.08 0.015 0.30 0.25 / / 0.12~0.25 / / bal
Gr9 0.03 0.08 0.015 0.25 0.15 2.5~3.5 2.0~3.0 / / / bal
Gr12 0.03 0.08 0.015 0.30 0.25 / / / 0.2~0.4 0.6~0.9 bal




6. Detailed Images

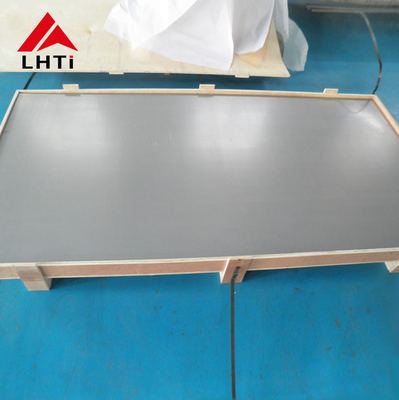

Gr5 Cold rolled Titanium Sheet Polished Alloy Plates For Chemical Industry 0

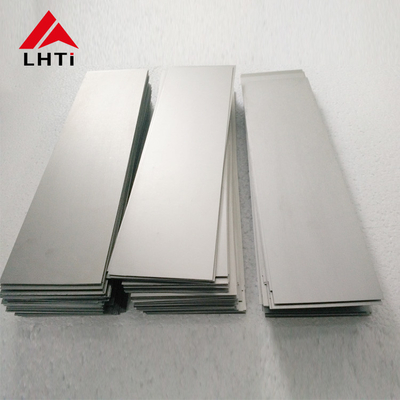

Gr5 Cold rolled Titanium Sheet Polished Alloy Plates For Chemical Industry 1




7. FAQ



Q1.--How can you ensure the product quality?

--All products are manufactured according to ASTM standard (Bolts are according to ASME
standard and DIN standard),and we make 100% inspection before shipment,also we can provide the

MTC Material Test Certification.

Q2.--Can you print our LOGO on the products?
--Sure, and we welcome the customerized products.
Q3.--Can we get the free sample?
Q4.--What about the payment terms?
--T/T, L/C,Paypal,Western Union,Escrew and MoneyGram etc are all accepted.
Q5.--Do you have your website?
--Yes, Please click here. website)
Q6.--What is the necessary information for a inquiry?

--Product name, specification, material grade and quantity. If customized products, your drawing and

special requests also needed.
