ASME Titanium Equipment Dished Tank Dome Heads For Pressure Vessel

Basic Information
Place of Origin: China
Brand Name: LHTi
Certification: ISO 9001:2015
Model Number: LH-Ti3
Minimum Order Quantity: 3Pcs
Packaging Details: Standard export packing,plywood case outside
Delivery Time: 30 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 20000 pieces per month
Detail Information
Product Name: Factory Direct-Sales High Quality ASME Titanium Tank Dome Heads Dished Ends Cap For Pressure Vessel Material: Titanium GR1, GR2, GR7, GR12, Etc.
Standard: According To ASME VIII-I Standard Or DIN28013 Size: OD300-1250mm, Or Customized By Customers' Requests
Other Name: Titanium Dish Head,Titanium Elliptical Heads Color: Natural
Applications: Pressure Vessel Equipment And Boilers Third Party Testing: Available
High Light:

Dome Dished Tank Heads

,

Titanium Pressure Vessel Heads

,

Pressure Vessel Elliptical Tank Heads


Product Description

Factory Direct-Sales High Quality ASME Titanium Tank Dome Heads Dished Ends Cap For Pressure Vessel



Product name Grade 2 titanium Elliptical Torispherical Hemisphere Spherical Conical Head for Tanks
Grade  Grade 2
Thickness 2mm--300mm Standard: ANSI, ASME ,MSS, API, DIN, JIS, BS. AWWA
Technology Hot pressing, cold pressing
 Quality testings  UT, RT, MT, PT, ET
Application

 Mainly for pressure vesselsin diverse industry such as oil, chemical,winery, pharmaceutical, environmental and military



The dish head refers to the element used to close the end of the container so that the internal and external

media are isolated, also known as hemispherical heads/dish end/ Elliptical Dish End. The head of a cylindrical

container is usually a revolving case. According to the shape of the head surface, it can be divided into convex

shape, conical shape, flat shape and combination shape. Convex heads refer to heads with convex outer surface

shape, such as hemispherical, oval, disc and unflanged spherical heads. Some gas cylinders use convex inward

combined bottom head, which can not only ensure strength, but also meet the needs of safe use.



A head is a part of a container that is welded to the cylinder According to different geometric shapes, it can be

divided into spherical, oval, disc, spherical crown, cone shell and cap, among which spherical, oval, disc and

spherical crown heads are collectively referred to as convex heads. In the welding is divided into butt welding

head, socket welding head. Used for all kinds of container equipment, such as storage tank, heat exchanger,

tower, reactor, boiler and separation equipment, etc.



(Titanium dish head )DIN28013:

D (mm)

s min/max (mm)

Volumen (L)

h1 (mm)

kg pr mm s

D (mm)

s min/max (mm)

Volumen (L)

h1 (mm)

kg pr mm s

300

4-10

3.5

78

1,0

1550

5-15

483

403

22.5

350

4-10

5.6

91

1.3

1600

5-15

532

416

23.9

400

4-10

8.3

104

1,7

1650

5-15

585

429

25,4

450

4-10

11.8

117

2,1

1700

5-15

640

442

27.0

500

4-10

16.1

130

2.6

1750

5-15

700

455

28.5

550

3-12

21,6

143

3,1

1800

5-15

760

468

30

600

3-12

28,0

156

3.6

1850

5-15

825

481

31.5

650

3-12

36.0

169

4,2

1900

5-15

890

494

33

700

3-12

44,5

182

4,8

1950

5-15

965

507

36

750

3-12

54.5

195

5,5

2000

6-15

1040

520

37

800

3-13

66.5

203

6.2

2050

6-15

1120

533

38.5

850

3-13

79,5

221

7,0

2100

6-15

1200

546

40.5

900

3-13

94

234

乙8

2150

6-15

1290

559

42,5

950

3-13

111

247

8.6

2200

6-15

1380

572

44.5

1000

4-16

130

260

9.5

2250

6-15

1480

685

46.5

1050

4-13

150

273

10,4

2300

6-15

1580

598

46 5

1100

4-13

173

286

11,1

2350

6-15

1690

611

51

1150

4-13

198

299

12.5

2400

6-15

1800

624

53

1200

4-13

225

312

13.6

2450

6-15

1910

637

55

1250

4-13

254

325

14,7

2500

6-15

2030

660

57





(Titanium dish head )DIN28013:

202110251553414948121202110251553422563158



Detailed Images:

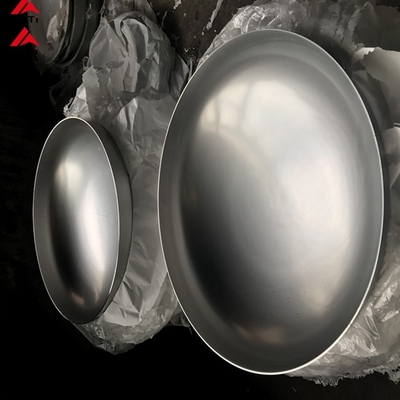

Titanium Spherical Heads 2Titanium Spherical HeadsGr2 Titanium Hemispherical Heads (2)



Applications of titanium Elliptical Heads:

202110251553449364460

The materials of Elliptical Heads: The dish head can be made of various materials according to the material of

the equipment body. For example, carbon steel (A3, 20#, Q235, Q345B, 16Mn, etc.), stainless steel (304, 321,

304L, 316, 316L, etc.), alloy steel (15Mo3 15CrMoV 35CrMoV 45CrMo), non-ferrous metals (aluminum, titanium,

copper, nickel and nickel alloy, etc.). The material must be the same as that of the device.We are specialized in

titanium hemispherical Heads.

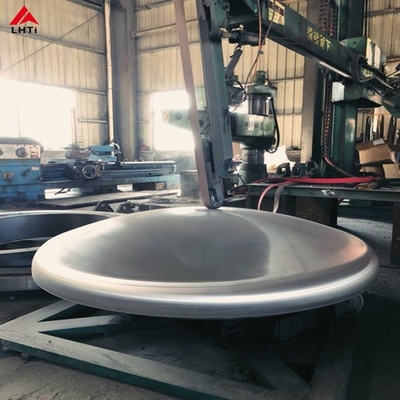

Product processing:

202110251553449678258

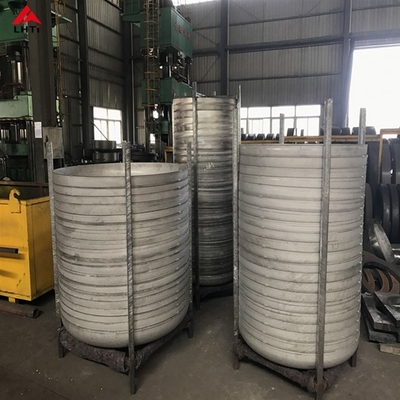

Our factory display:
