|Place of Origin:||China|
|Certification:||ISO9001:2015; TUV; SGS;BV|
|Minimum Order Quantity:||10 kg|
|Packaging Details:||Coil and spool package in carton case or plywood case,straight wire package in Plastic case,outside is standard export plywood case|
|Delivery Time:||In stock--3 days.production--15-20 working days|
|Payment Terms:||L/C, D/P, T/T, Western Union,paypal etc|
|Supply Ability:||50000 kgs per month|
|Product Name:||High Quality 1.2mm/2.4mm/3.2mm Titanium Welding Rod /wire AWS A5.16 Welding Titanium Wire||Grade:||Grade1 Grade2 ErTi1 ErTi2|
|Surface:||Pickling Surface/polish Surface||Package:||Standard Export Package|
|Hot Sale Diameter:||0.8mm-5mm Etc||Length:||1000mm|
|Key Words:||Thin Titanium Wire|
Thin Titanium Welding Wire,
Welding Nickel Titanium Wire,
3.2mm Titanium Round Wire
High quality 1.2mm/2.4mm/3.2mm titanium welding rod /wire AWS A5.16 welding titanium wire
1. Products information

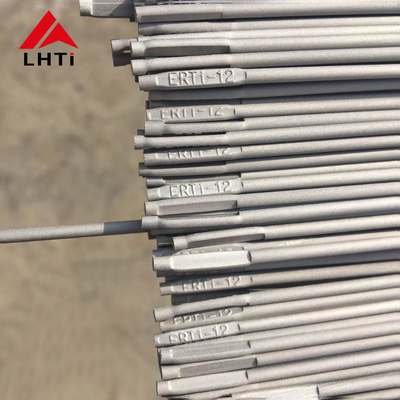

Grade : TA1,TA2,TC4,Gr7,Gr12,Gr23 ,ErTi-1,ErTi-2,ErTi-5,ErTi-7 etc
Standard : ASTM B863 (for industrial) / AWS a5.16(for welding)
Diameter : 0.8-6.0mm
Shape : coil,spool,straight.
Surface : pickling surface/bright surface
Application : industrial,welding,macine parts,medical etc
Welding wire analysis%:
Gr1/Gr2/ErTi-1/ErTi-2 dia=0.8mm/1.0mm/1.2mm/1.6mm/2.0mm/2.4mm/2.5mm/3.0mm/3.5mm in stock,ensure delivery 3-5 days
Gr5/ErTI-5/Gr7/ErTI-7 some size in stock,some size need production,lead time 10 working days.according your quantity
Gr12/ErTi-12 need production,lead time 10 working days
|Common Ti Wires Tolerance|
|Grade||Tensile Strength (min)||Yield strength 0.2%Offset||Elongation in 2in. or 50mm % (min)|
2. Titanium wire---Three kinds of type for your choose
Titanium wire in Spool--dia<6.0mm ,if you need we can make spool wire
dia1.0-2.0mm,Precision winding,used for MIG
dia0.2mm-3.0mm,thin wire,used for titanium mesh
Spool OD=270mm to 300mm,one spool wire weight is about 6-10kgs.or as per requirment
Titanium wire in coil--dia>2.0mm,we can make Coil wire
Coil OD = 450mm,one coil weight is about 10-15kg,or as per requirment

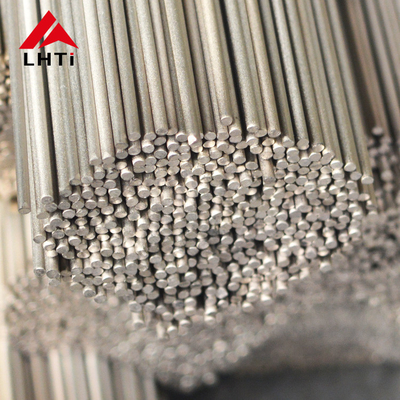

Titanium wire in straight--dia=0.8mm/1.0mm/1.6mm/2.0mm/2.4mm/3.2mm,length=914mm to 1000mm
90% titanium straight wire used for welding(TIG filler rod)
3. Welding show--titanium wire for TIG and MIG
Titanium Wire is slivery metal with excellent properties. Density is 4.54g/cm³ lighter than Steel. But mechanical strength is higher than Steel, 2 times stronger than Aluminium, 5 times stronger than Magnesium. Pure Titanium Wire is high temperature resistance and melting point is 1942K.
TIG Welding titanium wire, also known as Gas Tungsten Arc Welding (GTAW), is a process that joins metals by heating them with an arc between a tungsten electrode (non-consumable) and the work piece. The process is used with a shielding gas and may also be used with the addition of filler metal.
The difference between the two is the way the arc is used. MIG (metal inert gas) welding uses a feed wire that constantly moves through the gun to create the spark, then melts to form the weld. TIG (tungsten inert gas) welding uses long rods to fuse two metals directly together
--- We have professional welding technology teams that can provide free welding consultation and other services to our customers.
--- If you are not sure what type of titanium wire you need for your project, we were glad to help you choose the right wire

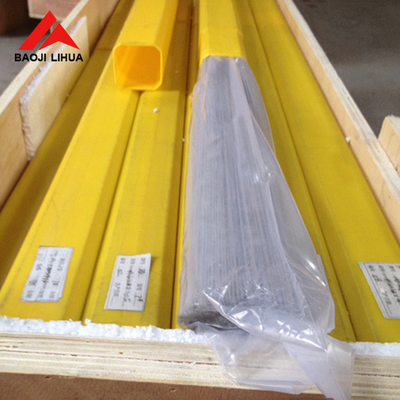

4. Package & Delivery
--- Coil and spool package in carton casse or plywood case
--- Straight wire package in Plastic case,outside is standard export plywood case.
--- accept customer requirment
Make sure that each package is tailor-made for you.ensure when you get the goods no damaged.
5. Application scenarios
Sea water equipment
LHTi to provide partners in various fields with the most suitable and high-quality titanium wire to ensure that its production quality continues to improve, whether you use it for the petroleum, chemical, marine industry or high-end aviation parts and manufacturing business . No matter how special the material you need, we are always able to provide all the titanium wire products our customers need.let me know your need.
More information and any welding question,Please feel free to get in touch to get more.
Q1.--How can you ensure the product quality?
--All products are manufactured according to ASTM standard (Bolts are according to ASME
standard and DIN standard),and we make 100% inspection before shipment,also we can provide the
MTC Material Test Certification.
Q2.--Can you print our LOGO on the products?
--Sure, and we welcome the customized products.
Q3.--Can we get the free sample?
Q4.--What about the payment terms?
--T/T, L/C,Paypal,Western Union,Escrew and MoneyGram etc are all accepted.
05.--What is the necessary information for a inquiry?
--Product name, specification, material grade and quantity. If customized products, your drawing and
special requests also needed.
