Home > products > Titanium Flange > Forged ASME B16.5 Weld Neck Flange WN Slip On Blind Flange

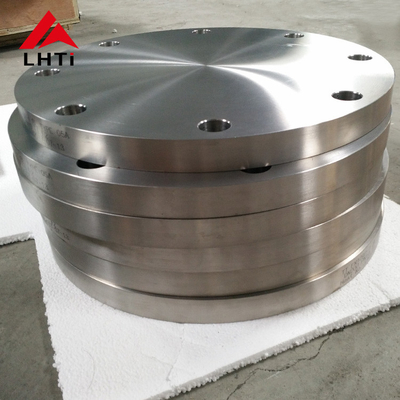

Forged ASME B16.5 Weld Neck Flange WN Slip On Blind Flange

Product Details

Place of Origin: China

Brand Name: LHTi

Certification: ISO9001:2015; TUV; SGS;BV

Model Number: Titanium weld neck flange

Payment & Shipping Terms

Minimum Order Quantity: 3 PCS

Packaging Details: Plywood box with soft foam for additional protection

Delivery Time: 10-25 work days

Payment Terms: T/T, MoneyGram, L/C, Western Union, Paypal

Supply Ability: 200000 kg per month

Get Best Price
Highlight:

ASME B16.5 Weld Neck Flange

,

PN16 WN Weld Neck Flange

,

CL300 Weld Neck Flange

Standard:
ASME/ANSI B16.5
Pressure Rating(DIN):
PN16
Pressure Rating(ANSI):
CL150,CL300,CL600,CL900,CL1500
Processing Method:
Forging, Then Cnc Machining
Working Temp:
-60℃~250℃
Application:
Chemical; Industry
Standard:
ASME/ANSI B16.5
Pressure Rating(DIN):
PN16
Pressure Rating(ANSI):
CL150,CL300,CL600,CL900,CL1500
Processing Method:
Forging, Then Cnc Machining
Working Temp:
-60℃~250℃
Application:
Chemical; Industry
Forged ASME B16.5 Weld Neck Flange WN Slip On Blind Flange



Forged ASME B16.5 ASTM B381 F2 Ti titanium WN Slip-on Blind flange factory supplies





1. Production Information



Standard Specification: ASTM B381/ASME SB381



Standard: ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.



Size: 1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000)



Class/Pressure: 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64, etc/



Flange Face Type: Flat Face(FF), Raised Face(RF), Ring Type Joint(RTJ)



Grade: Titanium Gr1, Titanium Gr2, Titanium Gr4, Titanium Gr5, Titanium Gr7



2. Available Dimensions



OD ( mm) I D ( mm) HEIGHT ( mm)
200-400 100-300 35-120
400-700 150-500 40-160
700-900 300-700 50-480
900-1300 400-900 70-250









3. Titanium Flange Production Process





Raw Material ⇒ Inspection Material ⇒ Cutting ⇒ Heating ⇒ Forging ⇒ Heat Treatment ⇒ Machining ⇒ Drilling ⇒ Marking ⇒ Washing/Cleaning ⇒ Final Inspection ⇒ Packing ⇒ Delivery

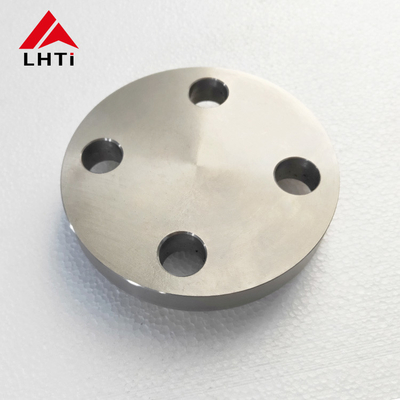

 Forged ASME B16.5 Weld Neck Flange WN Slip On Blind Flange 0









4. Titanium Flange Type





a. Slip On Flange                  b.Welding Neck Flange                    c.Threaded Flange(Screwed Flange)



d. Plain Flange                       e.Blind Flange                                      f.Lap Joint Flange



g. Wocket Welding Flange                        h. welded flange                    i. titanium large-diameter flange







5. Detailed Drawing

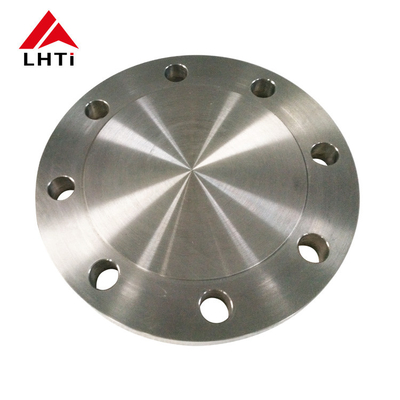

Forged ASME B16.5 Weld Neck Flange WN Slip On Blind Flange 1

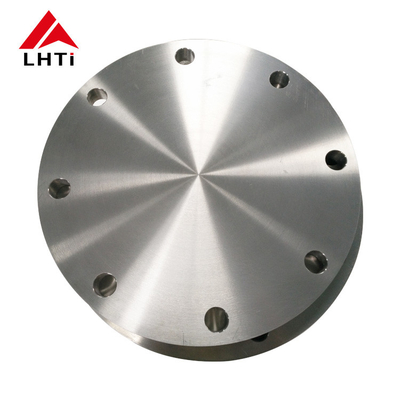

Forged ASME B16.5 Weld Neck Flange WN Slip On Blind Flange 2







6. Service



  • We have the stocks so we would provide our clients the short delivery time
  • Strict control from raw materials till products finished, so the quality is guaranteed.
  • Customized sizes are offered as well as specified sizes and multiple sizes.
  • Strict quality test from raw material to product.
  • Original mill sheet test reports EN 10204.3.1 is available.





7. Quality Assurance





A. According to globally recognized standards, such as ASTM, AMS, ASME. Provide third-party inspection reports. ISO Quality Management System.



B. Visual inspection to check surface quality, ensuring without flaw, black dot and other defects.



C. Chemical Composition making sure all chemical components can satisfy customer’s demands.



D. Mechanical Property testing making sure all titanium products have satisfying mechanical features before delivery.



E. Heat treatment



F. Dimensions Check



G. Workmanship, Finish&Appearance
