Gr2 Titanium Ring ASTM B381 Channel Flange Titanium Forgings

Name: Gr2 Titanium Ring ASTM B381 Channel Flange Titanium Forgings
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: LHTi003
Price: 81.00 USD
Availability: InStock

Brand Name:	LHTi
Model Number:	LHTi003
MOQ:	2 Kilogram/Kilograms
Payment Terms:	L/C, D/A, T/T, Western Union
Supply Ability:	2 Metric Ton/Metric Tons per Month Good products and stick quality system.

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001

Place Of Origin:

Shaanxi, China

Brand Name:

LHTi

Model Number:

LHTi003

Application:

Oil And Chemicals Power

Technique:

Hot Rolled/Annealed

Grade:

Gr 1,gr2,gr5, GR1GR2GR9GR12

Powder Or Not:

Not Powder

Ti Content (%:

99.8%

Dimensions:

Customized

Color:

Silver

Certified:

ISO9001-2015

Characteristic 1:

Excellent Corrosion Resistance

Characteristic 2:

Lower Life-cycle Costs

Characteristic 3:

Longer Service Life

Characteristic 4:

Lower Maintenance And Repair Costs

Characteristic 5:

Memory Function

Packaging Details:

Plywood case and then tied by steel band.

Supply Ability:

2 Metric Ton/Metric Tons per Month Good products and stick quality system.

Highlight:

Gr2 Titanium Ring

ASTM B381 Titanium Forgings

Channel Flange Titanium Forgings

Product Description

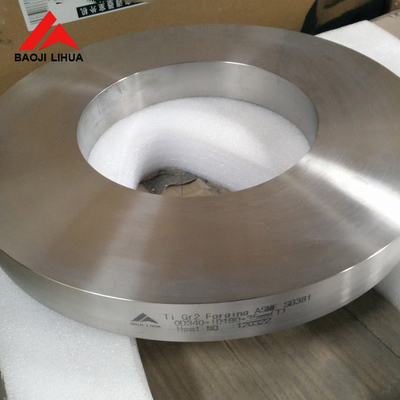

Gr2 Titanium forgings ASTM B381 OD 1074 Titanium Channel Flange ring

Specification

Product Names	Dimensions			Grade	Standards
	Outer Diameter	Inner Diameter	Height
	(mm)	(mm)	(mm)
Disc	150~300	/	20~140	GR1,GR2,GR5,GR7, GR9,GR12,GR23	ASTM B381
	300~500	/	25~150
	500~600	/	30~110
Ring	200~400	100~300	20~150
	400~700	150~500	30~250
	700~900	300~700	35~300
	900~1300	400~900	50~400

Grade1-12

grade	Tensile strength(min)			Yeild strength(min)		Elongation(%)
grade	component	ksi	MPa	ksi	MPa	Elongation(%)
Gr1	Ta1	35	240	20	138	24
Gr2	Ta2	50	345	40	275	20
Gr5	Ti6Al4V	130	895	120	828	10
Gr7	Ti-0.2Pd	50	345	40	275	20
Gr9	Ti-3Al-2.5V	90	620	70	483	15
Gr12	Ti-0.3Mo-0.8Ni	70	483	50	345	18
