DIN Slip On Carbon Steel Flange DN10 For Shipbuilding Industry

Basic Information
Place of Origin: China
Brand Name: LHTi
Certification: ISO9001
Model Number: SO Flange
Minimum Order Quantity: 5 Piece
Packaging Details: No Fumigate or Fumigate Playwood/Wood Pallet or Case
Delivery Time: 15-20 work days
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 12000 Ton/Tons per Year
Detail Information
Place Of Origin: China Brand Name: LHTi
Model Numbe: SO Flange Size: 1/2"- 120" DN10 To DN3600
Material: Carbon Steel & Stainless Steel & Inconel Alloy Standard: ANSI ASME UNII JIS EN DIN GOST NS BS VSM
Type: Flange Main Product: Seamless & Welded Steel Pipe,flange
Surface Treatment: Anti-rust Oil, Transparent/Yellow/Black Anti-rust Paint,Zinc,
High Light:

Anti Rust SO Carbon Steel Flange

,

Carbon Steel Flange DN10

,

Shipbuilding Industry Slip On Flange


Product Description

DIN Carbon steel Slip on flange/pipe fitting flange for for Shipbuilding industry

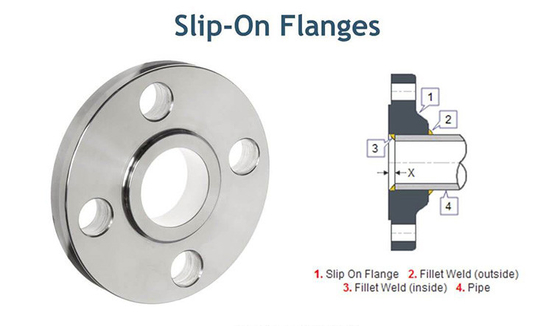

SO flange Flat welded flanges are also called tower welded flanges. They are welded when connected to containers or pipelines. This flat welded flange has the characteristics of easy assembly and low price.The vibration is relatively small in the pipeline




Steel Flanges
Material Carbon steel ASTM A105. ASTM A350 LF1. LF2, CL1/CL2, S235JRG2, P245GH
P250GH, P280GHM
Stainless steel ASTM A182, F304/304L, F316/316L
Alloy steel ASTM A182 A182 F12,F11,F22,F5,F9,F91etc.
Standard ANSI Class 150 Flanges-Class 2500 Flanges
DIN 6Bar 10Bar 16Bar 25Bar 40Bar
JIS 5K Flanges-20K Flanges
UNI 6Bar 10Bar 16Bar 25Bar 40Bar
EN 6Bar 10Bar 16Bar 25Bar 40Bar
TYPE 1.Welding neck Flange 2.Slip on
3.Blind flange 4.Long welding neck flange
5.Lap joint flange 6.Socket welding
7.Threaded flange 8.Flat flange
Surface Anti-rust oil, clear lacquer, Black lacquer, Yellow lacquer,hot-dipped Galvanized,electrical galvanized
Connection Welding, Threaded
Technical Forged, Casting
Size DN10-DN3600
Package 1.Standard export packaging (Plywood Case Outside,Plastic Cloth Inside).
2:As Customers' Requirements
Heat Treatment Normalizing, Annealing, Quenching+Tempering
Certificate API,ISO9001:2008;ISO14001:2004
Applications Water works, Shipbuilding industry, Petrochemical & Gas industry, Power industry, Valve industry,and general pipes connecting projects etc.



Our services



1. marking according to customer's requirment.

2. producing according to customer's drawing.

3. others product: seamless & welded steel pipe,flange,elbow,tee,reducer,valves.
