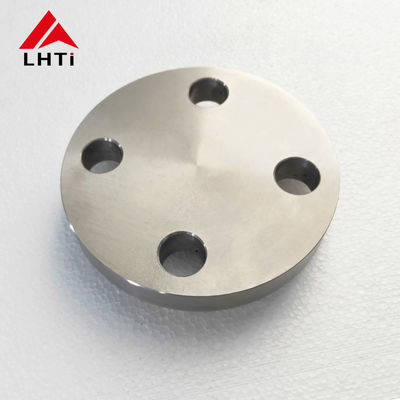

ANSI B16.5 Gr2 F7 F12 CNC Titanium Blind Pipe Flanges Class 150

Basic Information
Place of Origin: Baoji Shaanxi China
Brand Name: LHTI
Certification: ISO9001
Model Number: LH-32
Minimum Order Quantity: 3 Pieces
Packaging Details: Standard export plywood case
Delivery Time: 10-20 days
Payment Terms: L/C, D/P, T/T, Western Union etc
Supply Ability: 50000 pieces per week
Detail Information
Material: Titanium Alloy Standard: ANSI B16.5,ANSI B16.47A, ANSI B16.47
Grade: Gr2 Gr7 Gr12 F2 F7 F12 Type: BL
Technique: Forged, CNC Machined Application: Oil Chemcial Industrial Etc.
Keyword 1: BL Titanium Flange Keyword 2: Titanium Blind Flange
Keyword 3: Titanium Flange Keyword 4: F7 Titanium Flange
High Light:

CNC Titanium Blind Pipe Flanges

,

ANSI B16.5 Blind Pipe Flanges

,

Gr2 Titanium Blind Pipe Flanges


Product Description

 ASME B16.5 Gr2 Gr7 Gr12 F2 F7 F12 CNC titanium flanges bl blind titanium flange forged class 150



Titanium flanges and fittings can be found in a wide variety of applications and settings. Their durability and strength make them invaluable for use in oil and gas pipelines as well as in marine applications. They’re also frequently used in the assembly of automobiles, where they can hold pipes securely in place. We carry an extensive selection of products and can typically ship within 15 days . For a-typical items, inquire for price and lead times.



Blind Titanium Flange

Material: GR2(F2)

Standard:ANSI B16.5,ANSI B16.47A, ANSI B16.47

Size:1/2"~80"

Class 150 class 300 class 600 class 900 class 1500

Technique:Forged, CNC machined



Titanium blind flanges are flanges with no holes in the middle. They are used to block pipe openings. The function is the same as that of the head and cap, except that the blind plate seal is a detachable sealing device, and the seal of the head is not ready to be opened again.


Dimensional tolerances conform to ASME B16.5. Flange bore diameters agree with standard ASME B36.9M Sch-40S wall pipe. Other bore diameters can be supplied on special order.



Connection method



Blind-Flange



Titanium flange standard and specifications:



Standard EN1092-1, DIN ,OCT ANSI B16.5 ANSI B16.47
Pressure 0.1, 0.25, 0.6, 1.0, 1.6, 2.5, 4.0, 6.4, 10.0, 16.0, 25.0, 32.0, 40.0Mpa 150psi(2.0Mpa),300psi(5.0Mpa),400psi(6.8Mpa),600psi(10.0Mpa),900psi(15.0Mpa),1500psi(25.0Mpa),2500psi(42.0Mpa)
Diameter

15~2000mm

(DN 10 - 2000)

6~4000mm(1/2"~160")
Flange type Flat welded plate type, flat welded ring loose sleeve type, crimped loose sleeve type, butt welded crimped loose sleeve type, butt welded ring loose sleeve type, butt welded type, threaded connection with neck, integral type and flange cover Bar welding, socket welding, threaded connection, loose sleeve, butt welding and flange cover
Sealing surface form Flat surface, concave surface, concave and convex surface, tongue and groove surface, rubber ring connection surface, lens surface and diaphragm welding surface Concave surface, concave-convex surface, tongue and groove surface, metal ring connection surface



Detailed pictures



titanium BL flange1020180416bland-flange3titanium BL flange08



Applications



Titanium Blind Flange Type 05



Production Process



Titanium Blind Flange Type 05



Our Factory



Titanium Blind Flange Type 05



Stock



Titanium Blind Flange Type 05



Quality Inspection



Titanium Blind Flange Type 05



Packaging

Inside is the protection foam film and pearl cotton,outside is the exporting plywood case,to ensure goods will be in perfect condition when arrive in destinations.

 ANSI B16.5 Gr2 F7 F12 CNC Titanium Blind Pipe Flanges Class 150 9



About us

We are a titanium manufacturer with over 15 years production and export experience.We offer different titanium flanges: titanium blind flanges, necks and lap flanges,slip on flange, plate flange etc, in a range of diameters from ½ "to 24". Dimensional tolerance to ASTM B/SB 381. Whether you are working on a production job that requires thousands of pieces, or a project that requires only one titanium pipe flange, we can help. You'll get everything you need to get the job done, no matter how big or small your needs are!
