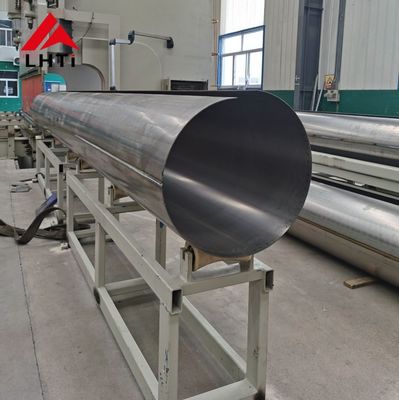

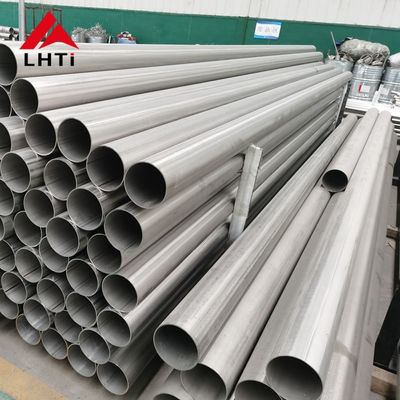

Gr17 Titanium Seamless Tube ASTM B338 16m

Brand Name:	LHTI
Model Number:	LH-01
MOQ:	10kgs of each size
Payment Terms:	L/C,D/P,T/T,Western Union,Paypal.etc
Supply Ability:	5 tons per month

Detail Information

Product Description

Detail Information

Place of Origin:

BaoJi Shaanxi China

Certification:

ISO9001

Standard:

ASTM B338/SB861, ASTM SB338/SB861

Grade:

Gr1 Gr2 Gr7 Gr9 Gr11 Gr12 Gr16 Gr17

OD:

1/2" To 48"

Wall Thickness:

Sch5s To Sch160

Length:

Max 16 Meter

Surface:

Pickling Surface

Material:

Pure Titanium , Titanium Alloy

Key Words 1:

Titanium Seamless Tube

Key Words 2:

Titanium Welded Tube

Payment Term:

T/T,L/C Etc

Application:

Chemical Industry

Packaging Details:

Each tube with environmental protection bags,outside is standard plywood case

Supply Ability:

5 tons per month

Highlight:

Gr17 Welded Seamless Titanium Tube

Seamless Titanium Tube 16m

ASTM SB338 Seamless Titanium Tube

Product Description

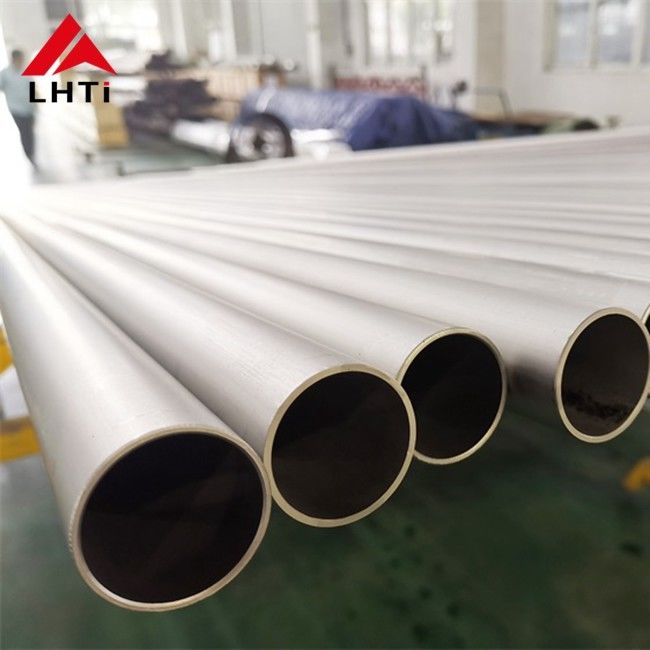

Gr17 Titanium Seamless Tube ASTM B338 16m

Titanium tube is about half the weight of steel, so it can match steel strength at lower mass, giving it a high strength to weight ratio. Titanium has a low density, is ductile in an oxygen free environment and melts above 1650 degrees Centigrade. It is a paramagnetic alloy. This Gr17 tube is supplied as welded or seamless tube to ASTM B337, ASTM B338 and ASTM B861.

Gr17 Titanium Seamless Tube

Technical Specifications

Standard	ASTM B337 / ASME SB337; ASTM B338 / ASME SB338; ASTM B861 / ASME SB861
Material	Pure titanium, titanium alloy
Outside Diameter	2.0 - 219 mm (1/2" to 48")
Wall Thickness	0.3 - 12 mm (Sch5s to Sch160)
Length	Max 16 m (within 18000 mm)
Surface	Pickling surface
Treatment	Annealed or CWSR
Type	Titanium tube, titanium pipe, titanium tubing

Available Grades

Grade	Composition
Gr1	CP titanium, low oxygen
Gr2	CP titanium, standard oxygen
Gr7	Ti-Pd, standard oxygen
Gr9	Ti-3Al-2.5V
Gr11	Ti-Pd, low oxygen
Gr12	Ti-Mo-Ni
Gr16	Ti-Pd, standard oxygen
Gr17	Ti-Pd, low oxygen

Typical Sizes

Outside Diameter (mm)	Wall Thickness (mm)	Length (mm)
25	1.0	4000
24.2	2.4	1000
15.88	0.55	5000

Applications & Titanium Advantages

This tube is used in condensers, heat exchangers, medical and sports equipment, aerospace, desalination, pure chlor-alkali, oil and vacuum salt service, and for chemical plant piping. Titanium resists corrosion in chloride and oxidising media and keeps a passive oxide film, so the tube performs well where steel would corrode. During field welding, titanium should be shielded with an inert gas to keep oxygen away from the weld.

Quality & Inspection

Main quality indicators are chemical composition, mechanical property and tolerance, and the original Mill Test Certificate can be attached to the delivery. Tubes are packed in protective bags inside poly-wooden cases, and third party testing is available on request. Please send your specification and quantity for a quotation.
