Hexagon Titanium Bolts Nuts DIN933 DIN934 Titanium Hex Bolts

Basic Information
Place of Origin: China
Brand Name: LHTi
Certification: ISO 9001:2015
Model Number: LHTi-05
Minimum Order Quantity: 100pcs
Packaging Details: PP bags inside, standard exporting plywood case outside
Delivery Time: 15-25Working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 100000pcs/month
Detail Information
Product Name: Hexagon Titanium Bolts Gr2 Gr5 DIN933 DIN934 Titanium Hex Bolts And Nuts Material: Gr2 Gr5 Titanium
Head Style: Hex , Hexagon Standard: DIN 933
Surface: Bright Technique: CNC Machined, Forged
MOQ: 100PCS Applications: Chemical Industry
High Light:

Hexagon Gr5 Titanium Bolts Nuts

,

DIN933 Titanium Bolts Nuts

,

CNC Machined Titanium Bolts Nuts


Product Description

 Hexagon titanium bolts Gr2 Gr5 DIN933 DIN934 titanium hex bolts and nuts



Pure titanium has extremely high corrosion resistance in most media, especially in neutral, oxidizing

and seawater media. The corrosion resistance in seawater is higher than that of aluminum alloys,

stainless steels and nickel-based alloys.So it has been used in the industrial, agricultural environment

and marine atmosphere for several years, and the surface has not changed.

Titanium is highly stable in various concentrations of nitric acid and chromic acid, and it is also very

resistant to corrosion in alkaline solutions and most organic acids and compounds.Titanium hex bolts

are produced in strictly accordance with DIN933 standard, and the smallest spot specifications from

M3 are available in stock.



Item Name DIN933 Titanium bolts
Material Titanium/ Titanium alloy
Grade Gr2 Gr5 titanium
Standard DIN933,DIN934
Specification

Screw / bolt: M2—M64*L6—300mm (or as your inquired )

Nut: M2—M30

Special size is available according to your drawing or requirement

Surface Treatment Machined Anodizing, Black oxide
Color Ti natural,different color is available
Features light weight, acid and alkali resistance, anti-corrosion, excellent mechanical strength etc.
Applications Industry



Chemical composition (Wt%)

ASTM No. Fe max O max N max C max H max Al V Bal
Grade2 0.3 0.25 0.03 0.1 0.015 - - Ti
Grade 5 0.3 0.2 0.05 0.08 0.015 5.5-6.75 3.5-4.5 Ti



Physical Properties (Min)

ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min %
ksi Mpa ksi Mpa
Grade 2 Unalloyed Ti ("Pure") 35A -CP1 58 400 40 275 20
Grade 5 Ti6Al4V 130 895 120 825

10

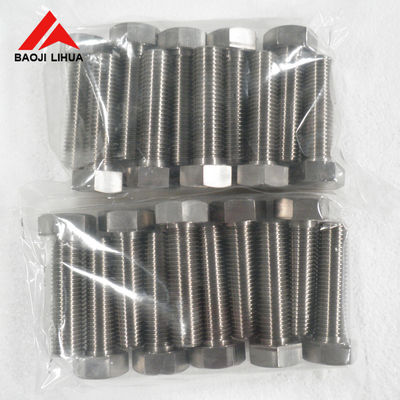

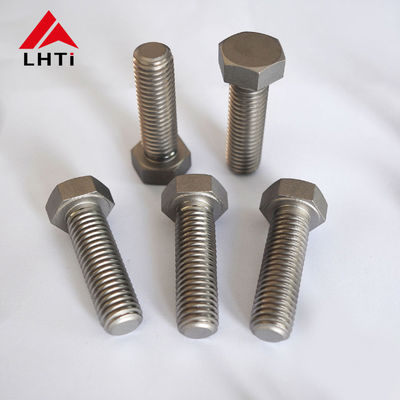

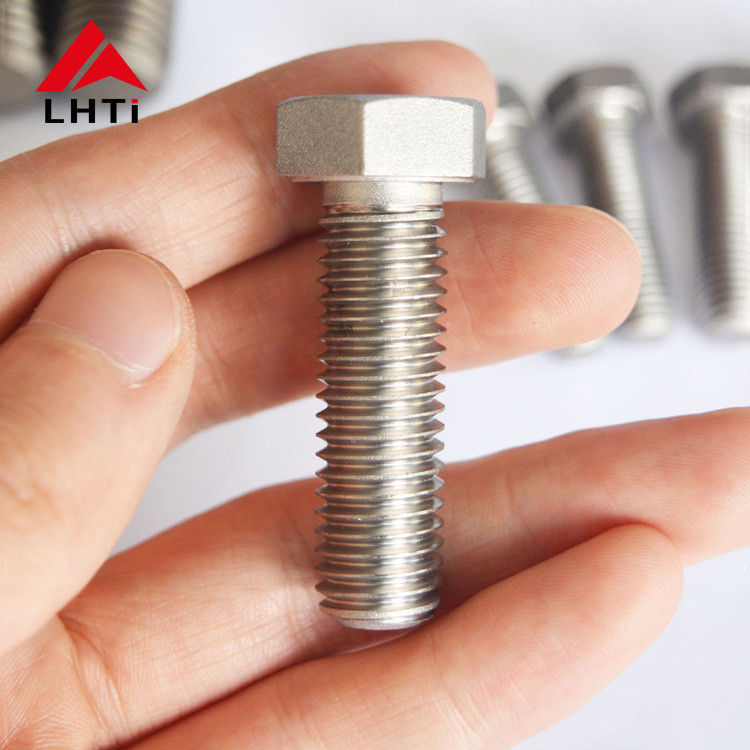

Detailed images:

 Hexagon Titanium Bolts Nuts DIN933 DIN934 Titanium Hex Bolts 0Hexagon Titanium Bolts Nuts DIN933 DIN934 Titanium Hex Bolts 1Hexagon Titanium Bolts Nuts DIN933 DIN934 Titanium Hex Bolts 2Hexagon Titanium Bolts Nuts DIN933 DIN934 Titanium Hex Bolts 3

  Hexagon Titanium Bolts Nuts DIN933 DIN934 Titanium Hex Bolts 4





The production process:

titanium bolts production process



About our company:

Baoji Lihua Non-ferrous Metal Co., Ltd. with over 15 years production and export experience of titanium fasteners,the factory covers an area of 1800 square meters, with strong technical equipment. There are more than 20 sets of CNC machines, milling and drilling machines, and the annual production value is more than 30 million CNY.

The titanium fasteners we manufactured have good surface, accurate size, good performance, mainly used for automobiles and chemical industry.Now the company have been built long-term cooperations of titanium fasteners with customers from UK,Germany,USA,Japan, Singapore etc.

Titanium stud





our advantagementlihua titanium rod (1)
