Grade 9 Titanium Seamless Coil Tube OD 10mm

Name: Grade 9 Titanium Seamless Coil Tube OD 10mm
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: Titanium coil
Price: 13.00 USD
Availability: InStock

Brand Name:	LHTi
Model Number:	Titanium coil
MOQ:	5pcs
Price:	USD12-15 per pc
Payment Terms:	T/T,,L/C,Western Union,Paypal
Supply Ability:	200000 kg per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001:2015; TUV; SGS

Materials:

Titanium Coil

Outer Diameter:

10-168mm

Length:

500-15000mm

Processing Service:

Bending, Cutting

Wall Thickness:

0.5-50mm

Inside Diameter:

0.5~100mm

Processing:

Seamless

MOQ:

Packaging Details:

Plywood box with soft foam for additional protection

Supply Ability:

200000 kg per month

Highlight:

Flexible Coil Grade 9 Titanium Tube

OD 10mm Grade 9 Titanium Tube

Seamless Grade 9 Titanium Tube

Product Description

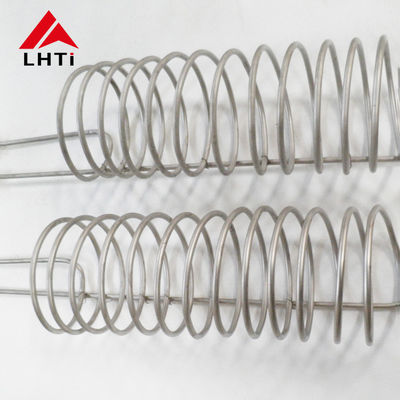

Grade 9 Titanium Seamless Coil Tube OD 10mm

Titanium coil tube is a seamless, cold rolled and annealed tube that can be delivered in long flexible coils for heat exchange equipment. The tube is produced from commercially pure Grade 1 and Grade 2 as well as Grade 9 (Ti-3Al-2.5V) titanium, so it stays light in weight, keeps high strength and resists sea water, chlorides and many chemical media. Because the tube is annealed after cold rolling it can be bent and coiled without cracking, which suits coiled type heat exchangers, condensers, evaporators and fluid transfer lines. Outside diameters run from 10 mm to 168 mm, wall thickness from 0.5 mm to 50 mm and coil lengths from 500 mm to 15000 mm, and each coil is pressure tested before it leaves the works.

Technical Specifications

Product	Seamless titanium coil tube
Grade	Grade 1, Grade 2, Grade 9 (Ti-3Al-2.5V)
Standard	ASTM B338, ASTM B337, ASTM B861, ASTM B862
OD range	10 mm to 168 mm
Wall thickness	0.5 mm to 50 mm
ID range	0.5 mm to 100 mm
Coil length	500 mm to 15000 mm
Surface	Polished, annealed
Technique	Cold rolled, seamless, annealed

Chemical Requirements

Grade	N	C	H	Fe	O	Ti
Gr1	0.03	0.08	0.015	0.20	0.18	bal
Gr2	0.03	0.05	0.015	0.30	0.25	bal

Mechanical Properties

Grade	Tensile strength (MPa)	Yield strength (MPa)	Elongation (%)
Gr1	240 min	140 to 310	24 min
Gr2	400 min	275 to 450	20 min

Applications

The coil tube is chosen where a long, joint free tube run has to carry a cooling or heating medium. Typical duties include tube type and coiled type heat exchangers, condensers, evaporators, power generation condensers, oil and gas pipelines, sea farming cages, electroplating equipment and general fluid transport piping. Tube ends can be supplied square cut, bevelled or expanded to the drawing, and bending and cutting are offered as a processing service. Coils travel in a plastic bag inside a wooden box, with soft foam added so that the polished surface arrives without scratches.

Grade 9 titanium seamless coil tube

Titanium coil tube OD 10mm seamless

Annealed titanium coil tube polished surface

Flexible titanium tube for heat exchanger

Seamless titanium coil tube for condenser

Titanium coil tube corrosion resistant

Grade 9 titanium tube coil packing
