Product Details
Place of Origin: Baoji , Shaanxi , China
Brand Name: LHTi
Certification: ISO9001:2015; SGS; TUV; BV
Model Number: Hex head titanium bolt
Payment & Shipping Terms
Minimum Order Quantity: 200 PCS
Packaging Details: Small quantity: pp bags inside,carton box outside packing. More than 10kgs: pp bags inside, Plywood case outside packing
Delivery Time: 10-15 working days
Payment Terms: T/T, Western Union, L/C, D/A, D/P
Supply Ability: 10,000 piece per month
Standard: |
DIN933 DIN931 |
Material: |
Titanium Gr2 |
Size: |
M3-M36 |
Length: |
As Customers' Request |
MOQ: |
200 PCS |
Technique: |
Forged |
Application: |
Chemical Industry, Electroplating Etc |
Product Name: |
Forged DIN933 DIN931 Gr2 Titanium Hex Bolts |
Standard: |
DIN933 DIN931 |
Material: |
Titanium Gr2 |
Size: |
M3-M36 |
Length: |
As Customers' Request |
MOQ: |
200 PCS |
Technique: |
Forged |
Application: |
Chemical Industry, Electroplating Etc |
Product Name: |
Forged DIN933 DIN931 Gr2 Titanium Hex Bolts |
Forged DIN933 DIN931 Gr2 Titanium Hex Bolts
Titanium screws and titanium nuts are tools that use the physical and mathematical principles of circular rotation and frictional force of objects to tighten objects and tools in a step-by-step manner.
Titanium standard parts
Products: Titanium screws, titanium bolts, titanium nuts, titanium studs
Material: TA1, TA2,
Specification: M4 ～ M25 × L
Pure titanium has extremely high corrosion resistance in most media, especially in neutral, oxidizing
and seawater media. The corrosion resistance in seawater is higher than that of aluminum alloys,
stainless steels and nickel-based alloys.So it has been used in the industrial, agricultural environment
and marine atmosphere for several years, and the surface has not changed.
Titanium is highly stable in various concentrations of nitric acid and chromic acid, and it is also very
resistant to corrosion in alkaline solutions and most organic acids and compounds.Titanium hex bolts
are produced in strictly accordance with DIN933 standard, and the smallest spot specifications from
M3 are available in stock.
|
Item Name |
DIN933 DIN931 Gr2 Titanium Hex Bolts |
|
Material |
Pure Titanium |
|
Grade |
Gr2 |
|
Standard |
DIN933 DIN 931 |
|
Surface Treatment |
Forged |
|
Color |
Ti natural |
|
Applications |
Chemical Industry |
| Certificate | ISO 9001:2015, EN 10204/3.1 |
| Features |
1. Not easy to rust; 2. Resistance to acid and alkali corrosion; 3. Light weight; 4. Has a long service life, widely used in aerospace, electroplating, chemical industry, machinery, etc. |
Chemical composition (Wt%)
| Grade | Fe max | O max | N max | C max | H max | Pd | Al | Bal |
| Gr2 | 0.3 | 0.25 | 0.03 | 0.1 | 0.015 | - | - | Ti |
Physical Properties (Min)
| Grade | Alloy Composition | Tensile Strength | Yield Strength | Elongation min % |
||
| ksi | Mpa | ksi | Mpa | |||
| Gr2 | Unalloyed Ti ("Pure") 50A -CP2 | 58 | 400 | 40 | 275 | 25 |
Common stock size:
| M2.5 | M2.5*5-M2.5*20 |
| M3 | M3*6-M3*20 M3*25-M3*50 |
| M4 | M4*10-M4*25 M4*30-M4*50 |
| M5 | M5*8-M5*20 M5*25-M5*50 |
| M6 | M6*6-M6*40 M6*45-M6*100 |
| M8 | M8*10-M8*50 M8*55-M8*100 |
| M10 | M10*10-M10*30 M10*35-M10*55 M10*60-M10*100 |
| M12 | M12*20-M12*45 M12*50-M12*75 M12*80-M12*100 |
| M14 | M14*20-M14*40 M14*45-M14*65 M14*70-M14*100 |
| M16 | M16*30-M16*55 M16*60-M16*100 |
| - | For other sizes, please contact customer service |

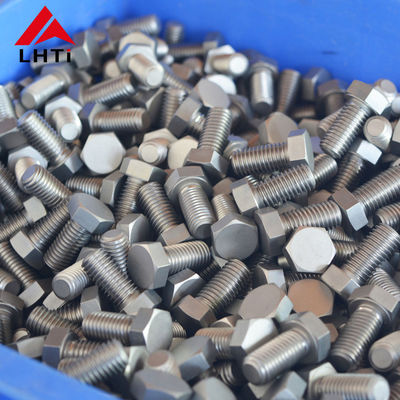

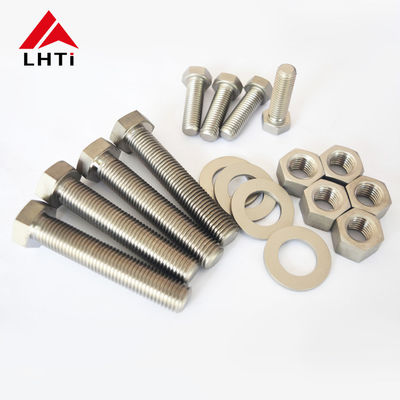

Detailed pictures:
