Home > products > Titanium Sheet > ASTM B265 AMS 4911 2mm 3mm 5mm Gr5 Titanium Sheet Plate Cold Rolling

ASTM B265 AMS 4911 2mm 3mm 5mm Gr5 Titanium Sheet Plate Cold Rolling

Product Details

Place of Origin: China

Brand Name: LHTi

Certification: ISO9001:2015;

Model Number: Titanium Sheet

Payment & Shipping Terms

Minimum Order Quantity: 50 kg

Price: USD30-32.00 per kg

Packaging Details: Plywood box with soft foam for additional protection

Delivery Time: 5 days

Payment Terms: T/T, MoneyGram, L/C, Western Union

Supply Ability: 10 tons per month

Get Best Price
Highlight:

5mm Gr5 Titanium Sheet Plate

,

Cold Rolling Titanium Sheet Plate

,

2mm Titanium Sheet Plate

Porudct Name:
ASTM B265 AMS 4911 2mm 3mm 5mm Gr5 Titanium Sheet Plate Cold Rolling
Standard:
ASTM/ ASME B265,AMS 4911
Material Grade:
Grade 5
Technology:
Cold Rolled,
Situation:
Annealed
Shape:
Straight
Surface:
Polished, Acid Washing
Application:
Chemicals, Machinery And Equipment Etc.
Porudct Name:
ASTM B265 AMS 4911 2mm 3mm 5mm Gr5 Titanium Sheet Plate Cold Rolling
Standard:
ASTM/ ASME B265,AMS 4911
Material Grade:
Grade 5
Technology:
Cold Rolled,
Situation:
Annealed
Shape:
Straight
Surface:
Polished, Acid Washing
Application:
Chemicals, Machinery And Equipment Etc.
ASTM B265 AMS 4911 2mm 3mm 5mm Gr5 Titanium Sheet Plate Cold Rolling

 ASTM B265 AMS 4911 2mm 3mm 5mm Gr5 Titanium sheet plate cold rolling

Product mame Titanium sheet plate
Material Titanium
Grade gr59, gr12
Standard  ASTM B265, ASME SB265,ams4911
Thickness 1mm,2mm,3mm
Process cold rolled
Status M, annealed
Surface pickling, polished
Third-party testing  SGS, TUV, BV etc.
application

chemicals, machinery and equipment, electroplating

equipment, environmental protection equipment, electronics, watches and clocks, glasses,

jewelry, sporting goods, golf and precision processing industries





Quality supervision: starting from the sponge titanium composition inspection, the upper,

middle and lower samples of the ingot are sampled for composition inspection, and ultrasonic

non-destructive inspection is performed to ensure the quality of the ingot. Physical performance

test to ensure product performance.



Chemical requirements

  N C H Fe O Al V Pd Mo Ni Ti
Gr1 0.03 0.08 0.015 0.20 0.18 / / / / / bal
Gr2 0.03 0.08 0.015 0.30 0.25 / / / / / bal
Gr5 0.05 0.08 0.015 0.40 0.20 5.5~6.75 3.5~4.5 / / / bal
Gr7 0.03 0.08 0.015 0.30 0.25 / / 0.12~0.25 / / bal
Gr9 0.03 0.08 0.015 0.25 0.15 2.5~3.5 2.0~3.0 / / / bal
Gr12 0.03 0.08 0.015 0.30 0.25 / / / 0.2~0.4 0.6~0.9 bal




Titanium sheet in stock:

Thickness(0.5mm/0.6mm/0.8mm/1.0mm)*Width≤1000mm*L≤2000mm

Thickness(1.0mm/1.2mm/1.5mm/2.0mm)*Width≤2000mm*L≤6000mm

Thickness(2.0mm/2.5mm/3.0mm)*Width≤2000mm*L≤6000mm

Thickness(3.0mm/3.5mm/4.0mm)*Width≤2000mm*L≤6000mm

Tensile requirements

Grade Tensile strength(min) Yield strength(min) Elongation(%)
ksi M Pa ksi M Pa
1 35 240 20 138 24
2 50 345 40 275 20
5 130 895 120 828 10
7 50 345 40 275 20
9 90 620 70 438 15
12 70 438 50 345 18




Detailed pictures:

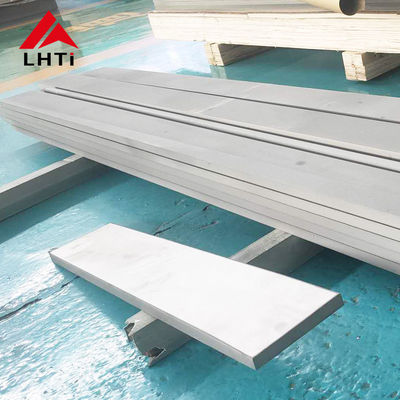

ASTM B265 AMS 4911 2mm 3mm 5mm Gr5 Titanium Sheet Plate Cold Rolling 0

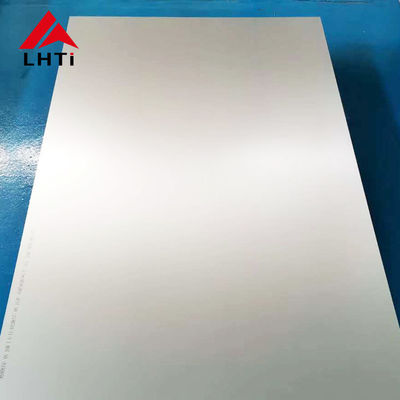

ASTM B265 AMS 4911 2mm 3mm 5mm Gr5 Titanium Sheet Plate Cold Rolling 1

Packaging and shipping:

Standard export packaging
Small size titnium sheets, each will be wrapped by white paper.
Big size titanium sheets, there will be a pearl cotton between each sheet to apart them and reduce

collisions and friction.
Inside use foam and pearl cotton padding to protect cargo,to ensure the safety of long-distance

transportation.

Main cooperating courier companies:TNT FedEx DHL UPS, and choose the most favorable courier

company for customers according to different countries.
For air and sea shipping, we always choose the fastest and safe route.

ASTM B265 AMS 4911 2mm 3mm 5mm Gr5 Titanium Sheet Plate Cold Rolling 2



We understand that your business depends on getting the right materials in the correct size, finish,

quantity and quality. We make it our mission to provide you with exactly what you need at the lowest

possible price.Our sole purpose of providing quality products and top notched personal service.



Contact me soon!
