GR2 GR7 Titanium Blind Flange BL Titanium Flange

Basic Information
Place of Origin: Baoji Shaanxi China
Brand Name: LHTI
Certification: ISO9001
Model Number: LH-32
Minimum Order Quantity: 3 pieces
Price: US dollar $15/pc-US dollar $175pc
Packaging Details: standard export plywood case
Delivery Time: 3-5 days
Payment Terms: L/C, D/P, T/T, Western Union etc
Supply Ability: 50000 pieces per week
Detail Information
Material: Titanium Type: BL
Standard: ANSI B16.5 Grade: Gr2 Gr7 Gr12 F2 F7 F12
Application: Oil Chemcial Industrial Etc. Quality Inspections: UT,Chemical Testing, Physical Performance Testin
Technique: Forged, CNC Machined Keyword: BL Titanium Flange
High Light:

GR7 Titanium Blind Flange

,

BL Titanium Flange

,

GR2 Titanium Blind Flange


Product Description

High quality GR2 GR7 Titanium Blind Flange BL titanium flange



Titanium Flanges Specifications and Standards
Specifications Titanium Flanges
Titanium Flanges Standards ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flanges.
ASME B16.5 Titanium Flange size range 1/2" (15 NB) to 48" (1200NB) DN10~DN5000
Titanium Flange Standard DIN 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64
Titanium Flange Standard ANSI Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS
Titanium Flange Standard UNI 6Bar 10Bar 16Bar 25Bar 40Bar
Titanium Flange Standard EN 6Bar 10Bar 16Bar 25Bar 40Bar
Titanium Flange Standard JIS 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K
Main Types Forged / Threaded / Screwed / Plate
Flange supporting material Gasket, Ring Joint, Flange Bolts
Connect Type/ Flange Face Type Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, , Groove
Titanium Pipe Flanges Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Production technique
  • Forged, Heat treated and machined
Specialized manufacturer of
  • DIN 2566 en 1092 1
  • Pn16 Flange
  • DIN 2566 pn16
  • Rtj Flange
  • Titanium Sorf Flange
  • Titanium Table Flanges
  • DIN 2566 pn10
  • Titanium Large Diameter Flange
  • Titanium Threaded Flanges
  • Titanium Blind Flanges
  • ASTM B564 Plate Flange
  • Titanium Weld Neck Flanges
  • Titanium Loose Flanges
  • ASTM B564 Orifice Flange
  • Titanium Slip-On Flanges
  • Alloy Lap Joint Flange
  • Titanium Socketweld Flanges
  • Titanium AS 4087 Water Flanges
Test Hydrostatic testing machine, Direct-reading Spectrograph,UI trasonic flaw detector, X-ray detector, Magnetic particle detector
Equipment Bending machine, Press machine, electric bevelling machine, Pushing Machine, Sand-blasting machine etc
Origin West Europe /Indian / USA / Japan / Korean
Key markets and industries for Titanium Flanges
  • Nuclear power (mostly seamless).
  • Heavy oil refineries.
  • Bitumen upgraders.
  • Petrochemicals and acids.
Export to Indonesia, Ireland, Ukraine, Singapore,Saudi Arabia,Canada, Peru, Dubai, Brazil, Iran, Korea, USA, India, Egypt, Thailand, Spain, Oman etc
Titanium Flanges Application
  • To Connect Pipe & Tubes in Power, Petroleum,Construction, Chemical, Gas, Shipbuilding,Metallurgy, etc
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175

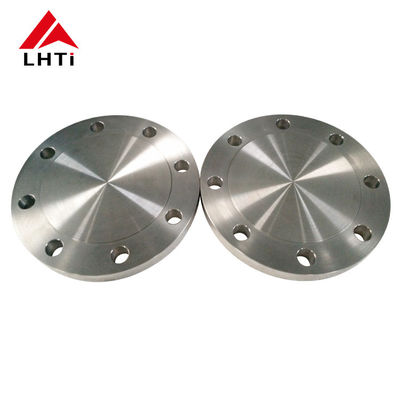

GR2 GR7 Titanium Blind Flange BL Titanium Flange 0



  • Most common types of Titanium Flanges:
  • Socket Weld Ring Flange (SWRF), Titanium
  • Threaded Ring Flange, Titanium
  • Blind Ring Flange (BLRF), Titanium
  • Weld Neck Ring Flange (WNRF), Titanium
  • Slip-On Ring Flange (SORF), Titanium
  • Ring Type Joint Flange (RTJF), Titanium
  • Lap Joint Ring Flange (LJRF), Titanium
  •

Special design:

As per your drawing

AS, ANSI, BS, DIN and JIS
15 NB (1/2") to 200 NB (8")
Equal and Reducing Configurations

Titanium Threaded Flange, Socketweld Flange, Slip-On Flange, Blind Flange, Weld Neck Flange



Titanium Flanges Standard:

ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc.
BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange

  • AS 2129: Table D; Table E; Table H
  • B.S: BS4504 , BS3293, BS1560, BS10
  • ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48
  • ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
  • American standard (ANSI)
  • ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
  • British standard (BS)
  • German (DIN)
  • Any other specilised flanges
  • The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203;UNI2276
  • DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638
  •



Detailed images:

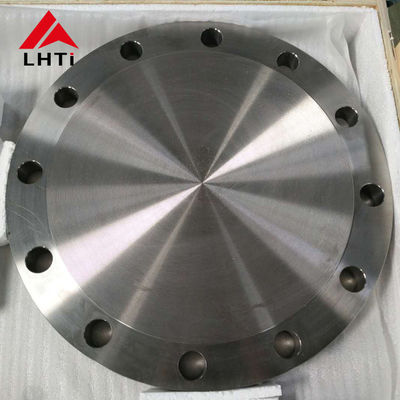

GR2 GR7 Titanium Blind Flange BL Titanium Flange 1

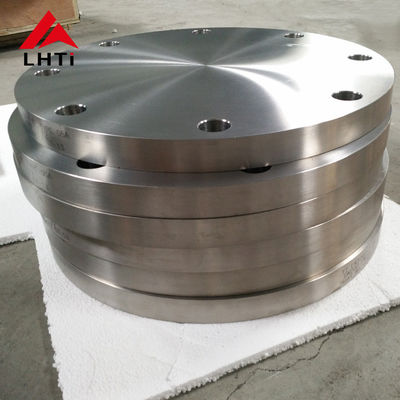

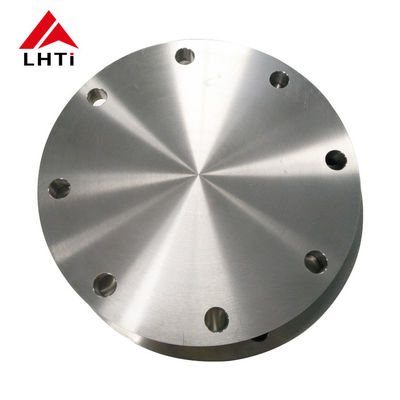

GR2 GR7 Titanium Blind Flange BL Titanium Flange 2GR2 GR7 Titanium Blind Flange BL Titanium Flange 3GR2 GR7 Titanium Blind Flange BL Titanium Flange 4

Class 150 Titanium Blind Flange
Nom.
Pipe
Size
Flange
Dia.
Flange
Thick
Raised
Face Dia.
No.
of
Holes
Dia.
of
Bolts
Dia. Of
Bolt Circle
1/2 3-1/2 7/16 1-3/8 4 1/2 2-3/8
3/4 3-7/8 1/2 1-11/16 4 1/2 2-3/4
1 4-1/4 9/16 2 4 1/2 3-1/8
1-1/4 4-5/8 5/8 2-1/2 4 1/2 3-1/2
1-1/2 5 11/16 2-7/8 4 1/2 3-7/8
2 6 3/4 3-5/8 4 5/8 4-3/4
2-1/2 7 7/8 4-1/8 4 5/8 5-1/2
3 7-1/2 15/16 5 4 5/8 6
3-1/2 8-1/2 15/16 5-1/2 8 5/8 7
4 9 15/16 6-3/16 8 5/8 7-1/2
5 10 15/16 7-5/16 8 3/4 8-1/2
6 11 1 8-1/2 8 3/4 9-1/2
8 13-1/2 1-1/8 10-5/8 8 3/4 11-3/4
10 16 1-3/16 12-3/4 12 7/8 14-1/4
12 19 1-1/4 15 12 7/8 17
14 21 1-3/8 16-1/4 12 1 18-3/4
16 23-1/2 1-7/16 18-1/2 16 1 21-1/4
18 25 1-9/16 21 16 1-1/8 22-3/4
20 27-1/2 1-11/16 23 20 1-1/8 25
24 32 1-7/8 27-1/4 20 1-1/4 29-1/2



All types of titanium flange per ASME B16.5 specification--Material is mainly C.P. Titanium

titanium slip-on flange

titanium blind flange

titanium weld neck flange

titanium lap joint flange



Other Related Products

---GR2 titanium hex bolts DIN933 and titanium hex nut DIN934

---Pure titanium pipe fitting,titanium elbow,concentric reducer etc

---Titanium seamless / welding tube for chemcial industrial



GR2 GR7 Titanium Blind Flange BL Titanium Flange 5

GR2 GR7 Titanium Blind Flange BL Titanium Flange 6



Raw material---Insepection material---Cutting--Heating---Forging--Heat tratment--Machining

Drilling---Marking---Washing---Final test---Package---Delivery



Package & Delivery



GR2 GR7 Titanium Blind Flange BL Titanium Flange 7

GR2 GR7 Titanium Blind Flange BL Titanium Flange 8



All package use standard export plywood case.



GR2 GR7 Titanium Blind Flange BL Titanium Flange 9





About us

As a titanium manufacturer with over 15 years production and export experience, we have our own manufacturing plant to produce various sizes Titanium Flange & export to more than 60 countries like Singapore, France, UK, Japan, Germany, Australia, USA, Oman, Egypt, UK, Italy, China, UAE, Malaysia, Canada, Turkey, Sweden, Israel, Russia, Poland Qatar, Dubai, Saudi Arabia & South Korea.Our quality has been widely recognized by customers in various countries.

GR2 GR7 Titanium Blind Flange BL Titanium Flange 10

GR2 GR7 Titanium Blind Flange BL Titanium Flange 11
