ASME B381 Diameter 8mm Gr2 U DN32 Titanium Bolts Nuts

Brand Name:	LHTi
Model Number:	capscrew
MOQ:	200pcs
Payment Terms:	L/C, D/A, T/T, Western Union
Supply Ability:	50000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China Baoji

Certification:

ISO9001：2015

Material:

Pure Titanium Gr2

Bolt Type:

U Bolt

Key Words:

U Bolt With Nuts

Pipe Size:

DN32

Diameter:

8mm

Technology:

Forged /Punch

Packaging Details:

Carton case or standard export plywood case

Supply Ability:

50000pcs per month

Highlight:

DN32 Titanium Bolts Nuts

Gr2 U Titanium Bolts Nuts

Titanium Gr2 U Bolt

Product Description

Titanium Material pure Gr2 U bolt with nuts

1. Titanium U bolts with nut

Pure titanium has extremely high corrosion resistance in most media, especially in neutral,

oxidizing and seawater media. The corrosion resistance in seawater is higher than that of

aluminum alloys, stainless steels and nickel-based alloys.So Titanium U bolts with nut has been used in the industrial,agricultural environment and marine atmosphere for several years, and the surface has not changed.Titanium is highly stable in various concentrations of nitric acid and chromic acid, and it is also very resistant to corrosion in alkaline solutions and most organic acids and compounds.

Standard:ASTM / ASME B381

Material Grade:Gr2 titanium

Technique:Forged, CNC machined

Type:U bolt and nuts

Quality test:Appearance, Chemical composition, Physical properties,Ultrasonic Testing

Item Name	Titanium Material pure Gr2 U bolt with Nut
Material	Pure Titanium (Gr2)
Thread	UNC
Standard	ANSI/ASME B18.2.1
Specification	Screw / bolt: M2—M64L6—300mm (or as your inquired ) Nut: M2—M30 Washer: M2—M30 Non-standard* and special size is available according to your drawing or requirement
Surface Treatment	Polishing
Color	Ti natural
Features	light weight, acid and alkali resistance, anti-corrosion, excellent mechanical strength etc.
Applications	Equipment accessories: airplane, ship, bicycle, motorcycle, auto, medical, chemical, wheel, sports, anchor, weapon, etc.

Chemical composition (Wt%)

ASTM No.	Fe max	O max	N max	C max	H max	Pd	Al	Bal
Grade 2	0.3	0.25	0.03	0.1	0.015	-	-	Ti

Physical Properties (Min)

ASTM Grade	Alloy Composition	Tensile Strength		Yield Strength		Elongation min %
ASTM Grade	Alloy Composition	ksi	Mpa	ksi	Mpa
Grade 2	Unalloyed Ti ("Pure") 50A -CP2	58	400	40	275	25

2. Drawing ANSI/ASME B18.2.1 standard

ASME B381 Diameter 8mm Gr2 U DN32 Titanium Bolts Nuts 0

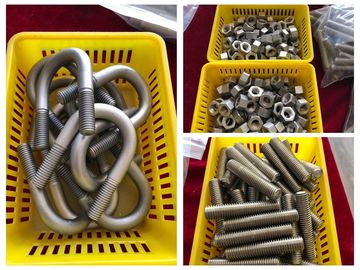

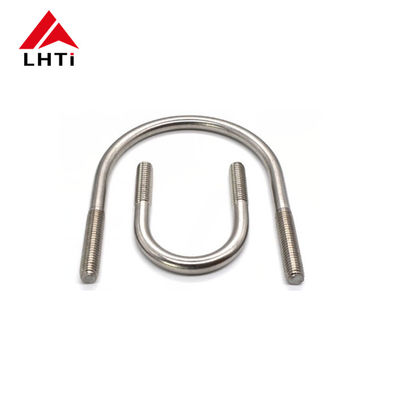

3. Details picture

ASME B381 Diameter 8mm Gr2 U DN32 Titanium Bolts Nuts 1

ASME B381 Diameter 8mm Gr2 U DN32 Titanium Bolts Nuts 2

Production process of titanium bolts/ screws:

ASME B381 Diameter 8mm Gr2 U DN32 Titanium Bolts Nuts 3

ASME B381 Diameter 8mm Gr2 U DN32 Titanium Bolts Nuts 4

Other titanium products:

Titanium pipes /tubes , titanium plate/ sheet , titanium pipe fittings, titanium valves, titanium wires.

ASME B381 Diameter 8mm Gr2 U DN32 Titanium Bolts Nuts 5
