Titanium Flange
Created with Pixso.

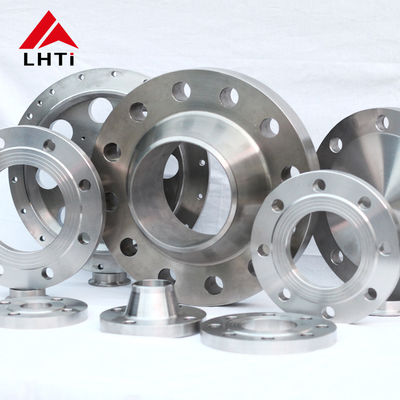

High Yelled Strength Flange ANSI B16.5 Gr7 Gr12 Titanium Wn Rf Flange

High Yelled Strength Flange ANSI B16.5 Gr7 Gr12 Titanium Wn Rf Flange

Brand Name: LH
Model Number: LHTFL
MOQ: 5pcs
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000pcs per month
Detail Information
Place of Origin:
China
Certification:
ISO9001:2015
Material:
GR7 GR12
Standard:
ANSI B16.5
Type:
WNRF , SORF , BLIND ,SW, PL
Application:
Chemical, Industry
Processing Method:
Forged, CNC Machine
Working Temp:
-60℃~250℃
Product Name:
High Quality Forged CNC Machine F2/ Gr2 WNRF Titanium Welding Neck Flange
Packaging Details:
Plywood box with soft foam for additional protection
Supply Ability:
10000pcs per month
Highlight:

weld neck pipe flanges

,

wn rf flange

Product Description

High Yelled Strength Industry flange GR7 GR12 Titanium Weld Neck Flange





High Yelled Strength Flange ANSI B16.5 Gr7 Gr12 Titanium Wn Rf Flange 0



Titanium flanges function



The flange, gasket, and bolt are connected to each other as a detachable connection of a group of combined sealing structures. Flange connection is an important connection method for pipeline construction.

The flange connection is easy to use and can withstand large pressures.



1. Production Information



Product name Titanium Flange
Material grade Gr1,Gr2,Gr5,Gr7,Gr12
Certificate ISO9001:2008
Standard ANSI B16.5/ASTM B16.5
Size NPS 1/2"~ 24"
Pressure Class150-class 2500
Technique Forged and CNC Machined
Type WNRF, SORF, BLIND, SW, PL
Flange surface FF,RF,TG,RJ etc
Application Boiler pressure vessels, chemical, petroleum, shipbuilding, pharmaceutical, metallurgy, machinery
Advantage 1. Long service life
2. Corrosion-resistant
3. Hign yelled strength and tensile strength.







2. Different grade titanium



grade Tensile strength(min) Yeild strength(min) Elongation(%)
component ksi MPa ksi MPa
Gr1 Ta1 35 240 20 138 24
Gr2 Ta2 50 345 40 275 20
Gr5 Ti6Al4V 130 895 120 828 10
Gr7 Ti-0.2Pd 50 345 40 275 20
Gr9 Ti-3Al-2.5V 90 620 70 483 15
Gr12 Ti-0.3Mo-0.8Ni 70 483 50 345 18



3. Cooperation with us will provide you a strong guarantee


1. ISO9001:2015
2. The timely delivery rate is 99.8%, sometimes in advance.
3. Excellent after-sale service.
4. Rapid inquiry reply, within 2 hours.
5. Fair payment term
6. Professional technical adviser
7. Material certificate
8. Quality is strictly according to ASTM,DIN,UNS,GB/T standard(manufacturing process,surface treatment,inspections and testing).



High Yelled Strength Flange ANSI B16.5 Gr7 Gr12 Titanium Wn Rf Flange 1High Yelled Strength Flange ANSI B16.5 Gr7 Gr12 Titanium Wn Rf Flange 2High Yelled Strength Flange ANSI B16.5 Gr7 Gr12 Titanium Wn Rf Flange 3



High Yelled Strength Flange ANSI B16.5 Gr7 Gr12 Titanium Wn Rf Flange 4

Customized Titanium flange & Relevant Products are welcomed.

High Yelled Strength Flange ANSI B16.5 Gr7 Gr12 Titanium Wn Rf Flange 5

High Yelled Strength Flange ANSI B16.5 Gr7 Gr12 Titanium Wn Rf Flange 6

High Yelled Strength Flange ANSI B16.5 Gr7 Gr12 Titanium Wn Rf Flange 7High Yelled Strength Flange ANSI B16.5 Gr7 Gr12 Titanium Wn Rf Flange 8

High Yelled Strength Flange ANSI B16.5 Gr7 Gr12 Titanium Wn Rf Flange 9





FAQ



1. Any discount?
A: The prices we quote are all wholesale prices in the first place. Meanwhile, our best price will be offered according to your order quantity, so please specify your purchase quantity when you inquire. The more your order, the better discounts we will offer.



2. Are you a manufacturer?
A: Yes. As a manufacturer with 13 years of experience, we’ve gained adequate expertise and proficiency. Relying on our own factory, we offer you our best quality products as we have fully equipped the Product Department and QC Department.



3. How do I know if my products are delivered?
A: We will inform you Tracking No. for your reference or you can contact us anytime for shipment information.



4. Has your company acquired any certificate?
A: We are a certified manufacturer with our auto parts approved by the ISO9001 Quality Management System.



5. How about the quality of the products?
A: We guarantee strict control over every detail of the products. Each product is carefully inspected and tested before delivery.



6. What about payment terms?
A: T/T, L/C, Western Union Paypal are accepted.



7. How is your MOQ?
A: The minimum quantity for certain items is only 20pcs. But MOQ can be lowered when you buy several different kinds of products together. For more details, please feel free to contact us at any time.



8. How about the delivery time?
A: Usually within 5-7 days via express delivery. But it depends on your order quantity as well.
