Product Details
Place of Origin: Baoji, Shaanxi, China
Brand Name: LH-Ti
Certification: EN10204.3.1,SGS,TUV,BV
Model Number: LH-Ti06
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: 23.5 USD-32.6 USD/KG
Packaging Details: Standard exporting packing
Delivery Time: 10-15 working days
Payment Terms: T/T, Western Union, L/C, D/A, D/P
Supply Ability: 500 tons/month
Product Name: |
Ti6Al4V Grade 5 Titanium Disc Disk Block 100 X 60mm For Industry |
Material: |
Gr5 Ti6Al4V |
Standard: |
ASTM B381 , AMS 4967-2001，AMS 4965-2002，AMS 4930-2001，AMS 4928-2001，AMS 4921-2004 |
Size: |
Dia 100 X 60mm |
Technique: |
Forged, CNC Machined |
Shape: |
Round |
Surface: |
Machined Bright |
Quality Control: |
Ultrasonic Testing |
Product Name: |
Ti6Al4V Grade 5 Titanium Disc Disk Block 100 X 60mm For Industry |
Material: |
Gr5 Ti6Al4V |
Standard: |
ASTM B381 , AMS 4967-2001，AMS 4965-2002，AMS 4930-2001，AMS 4928-2001，AMS 4921-2004 |
Size: |
Dia 100 X 60mm |
Technique: |
Forged, CNC Machined |
Shape: |
Round |
Surface: |
Machined Bright |
Quality Control: |
Ultrasonic Testing |

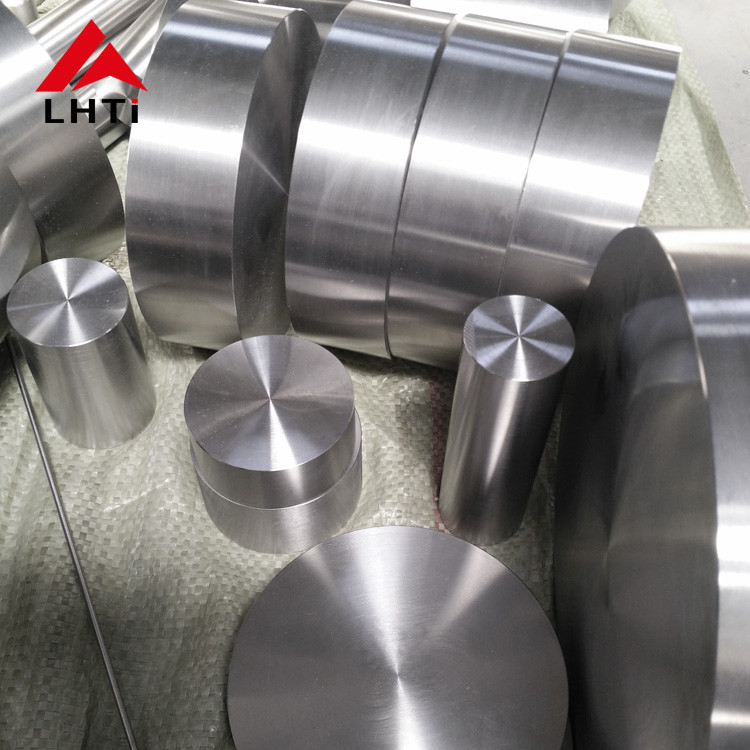

Ti6Al4V grade 5 titanium disc disk block 100 x 60mm for industry
GR5 titanium alloy is the most widely used titanium metal, usually the titanium alloy we use refers to it. It has good tensile strength, yield strength and elongation.Titanium and its alloys have many excellent characteristics such as light weight, high strength, strong heat resistance and corrosion resistance. They are known as "future metals" and are promising new structural materials. Titanium and its alloys not only have very important applications in the aerospace and space industries, but also have begun to be widely used in many industrial sectors such as chemical industry, petroleum, light industry, metallurgy, and power generation. Titanium can resist the corrosion of the human body without harming the human body. Therefore, it can be widely used in the medical and pharmaceutical industries. Titanium has good suction performance, and it is also widely used in electronic vacuum technology and high vacuum technology.
Gr5 titanium alloy Ti-6Al-4V is a typical low-temperature titanium alloy, its strength increases with decreasing temperature, but its plasticity changes little. It maintains good ductility and toughness at a low temperature of -196-253 ℃ and avoids the cold brittleness of metals. It is an ideal material for low-temperature containers, storage tanks and other equipment.
Product name:Titanium disc disk cake block |
Material:TI-6AL-4V,GR5 |
Dimension:φ100*60 |
Surface:Bright |
Processing:Forging |
Standard:ASTM B381, AMS 4967-2001,AMS 4965-2002,AMS 4930-2001,AMS 4928-2001,AMS 4921-2004 |
|
Dimension can be cuztomized according to customers' request |
| Gr5(Ti6Al4V) | ||||
| Chemical compositions(weight%,<=) | ||||
| Ti | Al | V | Fe | C |
| Reminder | 5.5-6.75 | 3.5-4.5 | 0.30 | 0.08 |
| N | H | O | Other(total) | ------- |
| 0.05 | 0.015 | 0.2 | 0.4 | ------- |
| Physical properties(>=) | ||||
|
Σb Tensile Strength (Mpa) |
σr0.2 Yield Strength (Mpa) |
δL0+50mm Elongation (%) |
ψ Reduction of area (%) |
|
| 895 | 825 | 10 | 25 | |
Baoji Lihua Non-ferrous Metals Co., Ltd, founded in 2006, lies in Tai Cheng road Baoji city---It is famous for manufacturing titanium, called “China Titanium Valley”.We are specialized in manufacturing, researching and marketing of titanium products.Titanium forging(Titanium disc/disck/ cake/ block, ring, flange) is one of our advantageous product.All our titanium discs are produced in strict accordance with international standards, and their appearance, size, chemical composition and physical properties have all reached export standards. In addition to basic quality testing, we also do ultrasonic flaw detection and PMI testing on titanium discs to ensure product quality.
