AWS A5.16 Titanium Alloy Wire Coil Gr1 Gr5

Brand Name:	LHTi
Model Number:	LHTI-041
MOQ:	100kg
Price:	USD6-45 per kg
Payment Terms:	T/T,Western Union,L/C
Supply Ability:	5Ton per month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji City Shaanxi Province China

Certification:

ISO9001

Standard:

AWS 5.16

Color:

Ti Natural

Surface:

Polished

Type:

Straight / Spool / Coil

Certificate:

ISO9001:2015

Technique:

Cold Rolling

Purity:

99.95%

Advantage:

Hot Resistance

Packaging Details:

Standard foreigh packing, plastic inside and plywood case outside Or as the clients' request

Supply Ability:

5Ton per month

Highlight:

titanium alloy wire

pure titanium wire

Product Description

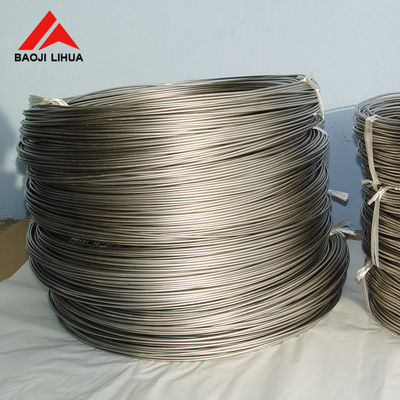

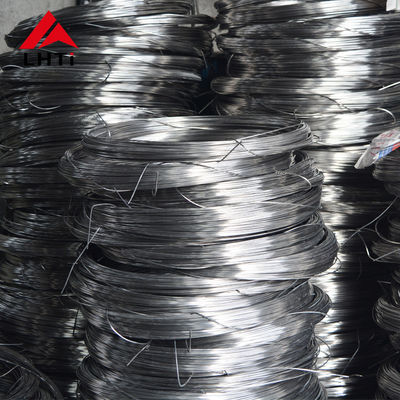

AWS A5.16 Titanium Alloy Wire Coil Gr1 Gr5

This titanium alloy and pure titanium wire is produced to AWS A5.16 (and related ASTM B863, ASTM F136, ASTM F67, ISO 5832-2/-3) with a bright polished surface and a purity of 99.95%. It is offered in a diameter range of 0.1-7.0 mm and supplied straight, on spools or in coils, in cold rolled, hot rolled or annealed condition. Gr5 (Ti-6Al-4V) offers good corrosion resistance and thermal stability and can be welded in several ways, with welded joint strength up to 90% of the base metal.

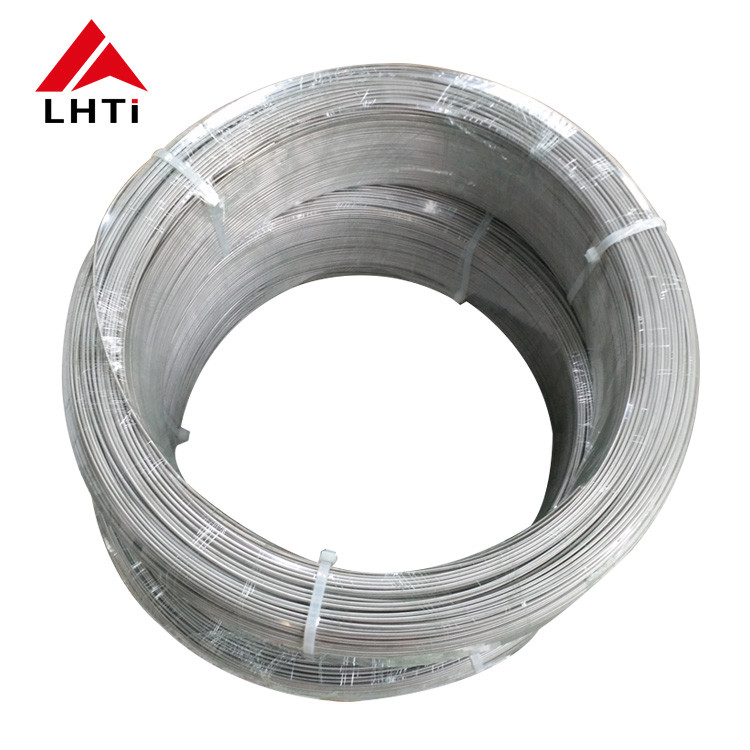

AWS A5.16 titanium alloy wire coil

Technical Specifications

Item name	Titanium wire
Standard	AWS 5.16, ASTM B863, ASTM F136, ASTM F67, ISO 5832
Material	Gr1, Gr2, Gr3, Gr4, Gr5, Gr7, Gr9, Gr11, Gr12, Gr23, ERTi-1 to ERTi-23
Diameter	0.1 mm - 7.0 mm
Length	Straight 915-1000 mm, spool or coil, or per request
Product Status	Cold rolled (Y), hot rolled (R), annealed (M)
Surface	Mill surface, polished surface
Purity	99.95%
Colour	Ti natural

Wire Tensile Requirements

Grade	Tensile Strength min MPa	0.2% Yield Strength min MPa	Elongation min %
1	240	170	20
2	345	275	18
2H	345	275	18
3	450	380	18
5	895	828	10
7	345	275	18
7H	400	275	18
9	620	483	15
12	483	345	18

Material Grades Available

System	Grades
ASTM / AWS	Gr1, Gr2, Gr3, Gr4, Gr5, Gr7, Gr9, Gr11, Gr12, Gr23, ERTi-1, ERTi-2, ERTi-3, ERTi-4, ERTi-5 ELI, ERTi-7, ERTi-9, ERTi-11, ERTi-12, ERTi-23
GB	TA1, TA2, TA3, TA4, TA7, TA9, TA10, TA15, TA18, TA19, TC3, TC4, TC6, TC11, TC17, TC18, TC19, TC20, TC25, TB2, TB6

Applications & Titanium Advantages

This wire is used for welding, medical components, eyewear and jewellery, sports goods, mesh and general corrosion-resistant parts. Titanium wire is light, strong, non-magnetic and highly corrosion resistant, resists heat and keeps its properties in a range of environments, which makes it suitable for long-term industrial service.

Quality, Customization & Inquiry

LHTi produces this titanium wire under ISO 9001:2015 quality control and can supply material certificates with the goods. Diameter, length, spool or coil weight and surface finish can be customized, and goods are packed in plastic inside a plywood case. Please send your specification for a quotation.
