Titanium Tube
Created with Pixso.

Welded Titanium Tube for Heat Sink ASTM B338

Welded Titanium Tube for Heat Sink ASTM B338

Brand Name: LHTi
Model Number: LH-037
MOQ: 500 kgs
Price: USD18-68 Per KG
Payment Terms: D/A,D/P,T/T,Western Union,,L/C
Supply Ability: 5 ton a month
Detail Information
Place of Origin:
Baoji City Shanxi Province
Certification:
ISO9001:2015
Brand Name:
LHTi
Model:
TP006
Material:
TI GR1-GR12
Standard:
ASTM B338/ASME SB338
Application:
Industrial
Certificates:
ISO9001:2015
Type:
Pure Round Titanium Pipe
Condition:
Anealed(M)
Packaging Details:
Standard foreigh packing, plastic inside and plywood case outside Or as the clients' request
Supply Ability:
5 ton a month
Highlight:

welding titanium tubing

,

titanium welded pipe

Product Description

Welded Titanium Tube for Heat Sink ASTM B338

This welding titanium tube is made for heat sink and heat transfer duty, and is supplied as either titanium welded pipe or titanium seamless pipe in round shape. Grades Gr1, Gr2, Gr5, Gr7, Gr9 (Ti-3Al-2.5V) and Gr12 are available to ASTM B338, B337, B861 and B862 with a density of 4.51 g/cm3. The tube carries a smooth inner surface and a good heat exchange efficiency, and resists corrosion from sea water, brine and a wide range of chemicals, so it is widely used in heat exchangers, condensers and other industrial pipe systems.

Technical Specifications

Commodity Seamless / welded titanium tube, titanium pipe
Tube Shape Round
Material Gr1, Gr2, Gr3, Gr4, Gr5 (Ti-6Al-4V), Gr7, Gr9 (Ti-3Al-2.5V), Gr11, Gr12, Gr23
Standard ASTM B337, ASTM B338, ASTM B861, ASTM B862
Type Seamless, welded
Outer Diameter 3-160 mm or as customized
Wall Thickness 0.2-50 mm or as customized
Length Max 6000 mm, or at customers' requirement
Condition Annealed (M)
Density 4.51 g/cm3
Certificate EN 10204 / 3.1B, raw materials certificate, 100% radiography test report, third-party inspection report

Chemical Composition (%, max unless range)

Grade N C H Fe O Al V Pd Mo Ni Ti
Gr1 0.03 0.08 0.015 0.20 0.18 / / / / / bal
Gr2 0.03 0.08 0.015 0.30 0.25 / / / / / bal
Gr5 0.05 0.08 0.015 0.40 0.20 5.5-6.75 3.5-4.5 / / / bal
Gr7 0.03 0.08 0.015 0.30 0.25 / / 0.12-0.25 / / bal
Gr9 0.03 0.08 0.015 0.25 0.15 2.5-3.5 2.0-3.0 / / / bal
Gr12 0.03 0.08 0.015 0.30 0.25 / / / 0.2-0.4 0.6-0.9 bal

Typical Applications

Industry Equipment
Oil and gas Off-shore oil drilling, gas processing, pipelines
Power generation Condensers, feedwater heaters
Chemical Petrochemicals, specialty chemicals, chemical equipment, sea water equipment
Fine chemical Fine chemicals, fine chemical equipment
Heat transfer Heat exchangers, heat sinks, pulp and paper industry

Product Pictures

Welded titanium tube for heat sink ASTM B338

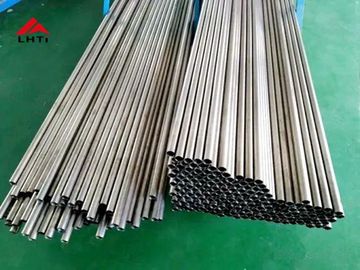

Titanium seamless pipe Gr1 Gr2 Gr7 Gr9

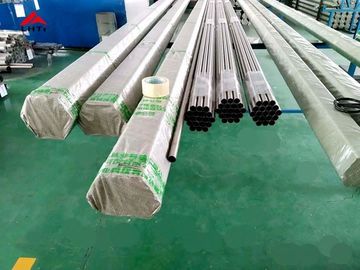

Annealed titanium welded pipe round shape

Material Notes

Titanium is a gray metallic element with atomic number 22, a melting point of about 1668 C and a density of 4.506-4.516 g/cm3, which is higher than aluminium but lower than iron, copper and nickel. Its specific strength is the highest among common metals, about three times that of stainless steel and 1.3 times that of aluminium alloy, and the annealed tube keeps good ductility together with corrosion resistance in sea water and many chemical media. Tubes can be produced to the drawing or standard on request.
