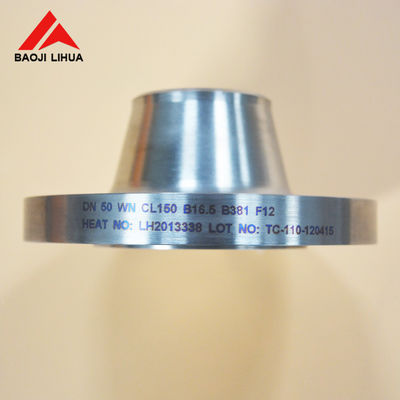

Pure Titanium Weld Neck Flange Gr1 Gr2 ASME B16.5 Corrosion Resistant

Product Details

Place of Origin: Baoji, China

Brand Name: LIHUA

Certification: ISO9001:2015, TUV etc.

Model Number: titanium weld neck flange

Payment & Shipping Terms

Minimum Order Quantity: 5 pieces

Price: US dollar $25/pc--US dollar $85/pc

Packaging Details: Wrapped by foam contained in plywood box for export

Delivery Time: 3-15 work days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 5000 pcs per month

Get Best Price
Highlight:

titanium gr 2 flanges

,

wn rf flange

Product Name:
Titanium Weld Neck Flange
Standard:
ASME B16.5
Material:
Gr1, Gr2, Gr5, Gr7, Gr12
Application:
Chemical Industry
Sealing Surface:
RF
Size:
NPS 1/2 - NPS 24(DN 10 - 2000)
Pressure:
150#-2500#
Surface:
Polished
Technique:
Forged And CNC Machined
Inspection:
Ultrasonic Testing & Material Test Report EN10204.3.1
Product Name:
Titanium Weld Neck Flange
Standard:
ASME B16.5
Material:
Gr1, Gr2, Gr5, Gr7, Gr12
Application:
Chemical Industry
Sealing Surface:
RF
Size:
NPS 1/2 - NPS 24(DN 10 - 2000)
Pressure:
150#-2500#
Surface:
Polished
Technique:
Forged And CNC Machined
Inspection:
Ultrasonic Testing & Material Test Report EN10204.3.1
Pure Titanium Weld Neck Flange Gr1 Gr2 ASME B16.5 Corrosion Resistant

ASME B16.5 ASTM B381 pure titanium gr1 gr2 Titanium weld neck flange





Titanium Flange Type



a. Slip On Flange

b. Welding Neck Flange

c. Threaded Flange(Screwed Flange)

d. Plain Flange

e. Blind Flange

f. Lap Joint Flange

g. Wocket Welding Flange

h. welded flange

i.  titanium large-diameter flange





1. Product Information of Titanium Weld Neck Flange



Product titanium weld neck flange
Application chemical industry
Standard ANSI B16.5, ASME B16.5, EN1092-1, JIS B2220, DIN2627-2628
Material Gr1, Gr2, Gr5, Gr7, Gr12
Size 1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000)
Pressure PN0.25~32Mpa/ (DIN) PN6,PN10,PN16,PN25 though PN250/ 150LB, 250LB ,300LB, 400 LB,500LB, 600 LB,900LB, 1500LB,2500LB.
Sealing Surface RF, FF, TG, RJ etc.
Technique Froged and CNC Machined





Mechanical Properties of ASTM B381 Titanium Plate Flanges



Element Density Melting Point Tensile Strength Yield Strength Elongation
Titanium Gr2 4.5g/cm3 1665℃(3030°F) Psi- 49900, MPa- 344 Psi-39900, MPa-275 20%
Titanium Gr5 4.43g/cm3 1632℃(2970°F) Psi- 138000, MPa- 950 Psi-128000, MPa-880 14%




Titanium Flange Production Process





Raw Material ⇒ Inspection Material ⇒ Cutting ⇒ Heating ⇒ Forging ⇒ Heat Treatment ⇒ Machining ⇒ Drilling ⇒ Marking ⇒ Washing/Cleaning ⇒ Final Inspection ⇒ Packing ⇒ Delivery



4. Detailed Images of Titanium Weld Neck Flange



(1) Raw Material



Pure Titanium Weld Neck Flange Gr1 Gr2 ASME B16.5 Corrosion Resistant 0



(2) Equipments



Pure Titanium Weld Neck Flange Gr1 Gr2 ASME B16.5 Corrosion Resistant 1



(3) Connection



Pure Titanium Weld Neck Flange Gr1 Gr2 ASME B16.5 Corrosion Resistant 2



4. Package of Titanium Weld Neck Flange



Titanium weld neck flanges are used in various industries including petrochemical, oil and gas, power generation, bulk liquid transportation, chemicals, pharmaceuticals, pulp and paper manufacturing, textiles and others. Titanium weld neck flanges are packed to ensure that there is no damage during shipment. In case of export, standard export packaging is done in plywood box. Markings can be made as you require.



5. All Tests of Titanium Weld Neck Flange



Visual testing (VT)

Ultrasonic Testing (UT)

Radiographic Testing (RT)

Magnetic particle testing (MT)

Penetrant Testing/Dye penetrate (PT)

Eddy Current testing (ET)

Acoustic Emission(AE)
