Gr2 Seamless Titanium Tube ASTM B338 Pickled

Brand Name:	LHTi
Model Number:	LH-Ti12
MOQ:	100 kgs
Price:	USD $19.5-$28.5 / kg
Payment Terms:	T/T,Western Union,L/C,D/A,D/P
Supply Ability:	500 tons per month

Detail Information

Product Description

Detail Information

Place of Origin:

BaoJi Shaanxi China

Certification:

ISO9001

Material:

CP Ti Garde 2

Standard:

ASTM B338

Length:

Max 16000mm

Surface:

Pickling Surface/Polished

Diameter:

15mm 19.1mm 25.4mm 33.4mm 38.1mm 45mm Etc.

Wall Thickness:

1.0

Technique:

Seamless

Application:

Heat Exchanger, Chemical Industry Etc.

Packaging Details:

Standard exporting packaging, plywood case outside

Supply Ability:

500 tons per month

Highlight:

titanium round tube

titanium welded pipe

Product Description

Gr2 Seamless Titanium Tube ASTM B338 Pickled

This Gr2 seamless titanium tube is made from commercially pure titanium (UNS R50400) to ASTM B338 and supplied with a pickled or polished surface. Titanium tube has light weight, high strength and superior mechanical properties, so it is widely used in heat exchange equipment such as tube and tube heat exchangers, coil tube heat exchangers, serpentine tube heat exchangers, condensers, evaporators and conveying pipes. Gr2 has excellent stamping and forming performance and good weldability, and a welded joint can reach about 90 percent of the strength of the base metal. The tube is easy to saw and cut with a grinding wheel and has good machining performance, which makes it suitable for parts under 350 C with lower stress and for parts punched into complex shapes.

Technical Specifications

Product	Titanium seamless tube
Material	CP Ti grade 2 (UNS R50400)
Standard	ASTM B338
Technique	Seamless
Diameter	15, 19.1, 25.4, 33.4, 38.1, 45 mm and more
Wall thickness	1.0 mm (other walls on request)
Length	Max 16000 mm
Surface	Pickling surface or polished
Application	Heat exchanger, chemical industry and more

Available Sizes

Item	Range
Outside diameter	15 mm to 45 mm and larger
Wall thickness	1.0 mm, or to customer requirement
Length	Up to 16000 mm
Surface	Pickled or polished
Technique	Seamless

Mechanical Properties

Titanium grade	Proof strength MPa (min)	Tensile strength MPa (min)	Elongation A% (min)
CP Ti Grade 2 (R50400)	275-450	345	20

Product Pictures

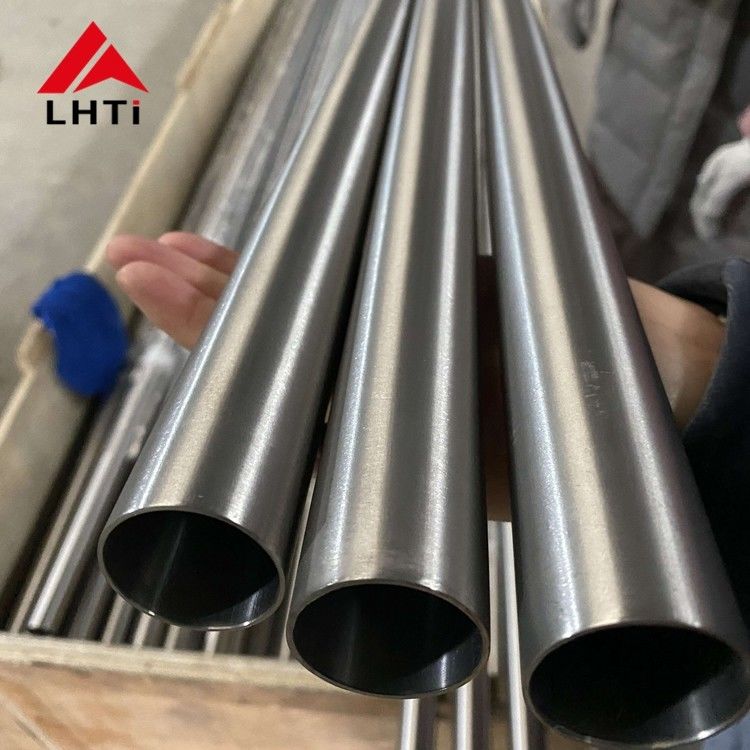

Gr2 seamless titanium tube ASTM B338

Pickled titanium seamless tube

Titanium tube for heat exchanger

Applications

The tube is used where a light, strong and corrosion resistant line is needed. Typical uses include tube and shell heat exchangers, condensers, evaporators, seawater desalination and water treatment systems, chemical heat exchangers, pump bodies, distillation towers, and pipeline systems, valves and pumps exposed to sea water. Titanium resists chloride and oxidizing media, so it also suits offshore and power generation cooling circuits. Each batch is checked by mechanical performance testing, ultrasonic and eddy current flaw detection, and air pressure and water pressure testing before delivery.
