NB1 NB2 Titanium Target ASTM B39 99.95% , Evaporation Coating Niobium Target

Basic Information
Place of Origin: China
Brand Name: LHTI
Certification: ISO9001
Model Number: niobium target
Minimum Order Quantity: 5 piece
Price: US dollar $120/pc--US dollar $160/pc
Packaging Details: Pearl cotton wrap or Sealed packaging,outside is standard Carton case or plywood case,or according your requirment to package
Delivery Time: 10-15 days
Payment Terms: L/C, D/P, T/T, Western Union,paypal etc
Supply Ability: 1000 piece per week
Detail Information
Product Name: High Quality ASTM B39 99.95% NB1 NB2 Evaporation Coating Niobium Target Material: Nb
Package: Plywood Case Or According Your Requirment Application: Evaporation Coating
Standard: ASTM B39
High Light:

sputtering target

,

niobium target


Product Description

high quality ASTM B39 99.95% NB1 NB2 Evaporation coating niobium target



1.Evaporation coating niobium target

Grade: R04200, R04210



Specifications: according to customer requirements



Purity: ≥99.95%, 99.99%



Standard: ASTM B39



State: Hard state, soft state



Niobium target technology: cold rolling, pickling, shearing





application:

1)Superconducting industry

2)For the production of niobium foil

3)Heat shield in high temperature furnace

4)Used to produce niobium welded pipe

5)Used to produce human implants.





chemical composition(%)
Grade    Main composition Material content(≤)
Nb Fe Si Ni W Mo Ti Ta O C H N
Nb1 Bal 0.004 0.004 0.002 0.005 0.005 0.002 0.05 0.012 0.0035 0.0012 0.003
Nb2 Bal 0.01 0.01 0.005 0.02 0.01 0.004 0.07 0.015 0.0050 0.0015 0.008



Mechanical properties of niobium target:

Grade tensile strength  Min(MPa)

Yield Strength Min(MPa)

(0.2%)

Elongation(%)

(25.4mm)

R04200,R04210 125 85 25



Niobium target tolerance(mm):

Thickness Thickness tolerance width width tolerance length length tolerance
0.1~0.2 ±0.015 20~1000 ±2.0 20~2000 ±2.0
0.2~0.3 ±0.02 20~1000 ±2.0 20~2000 ±2.0
0.3~0.5 ±0.03 20~1000 ±2.0 20~2000 ±2.0
0.5~0.8 ±0.04 20~1000 ±2.0 20~2000 ±2.0
0.8~1.0 ±0.06 20~1000 ±2.0 20~2000 ±2.0
1.0~1.5 ±0.08 20~1000 ±1.0 20~2000 ±1.0
1.5~2.0 ±0.10 20~1000 ±1.0 20~2000 ±1.0
2.0~3.0 ±0.12 20~1000 ±1.0 20~2000 ±1.0
3.0~5.0 ±0.15 20~1000 ±1.0 20~2000 ±1.0
5.0~8.0 ±0.18 20~1000 ±1.0 20~2000 ±1.0
8.0~12.0 ±0.20 20~1000 ±1.0 20~2000 ±1.0
12.0~15.0 ±0.50 20~1000 ±1.0 20~2000 ±1.0
15.0~2.0 ±0.80 20~1000 ±1.0 20~2000

±1.0



Detection:

Chemical composition testing

Mechanical performance testing

Ultrasonic flaw detection

Appearance size inspection

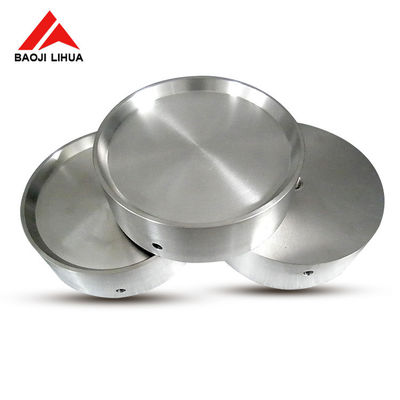

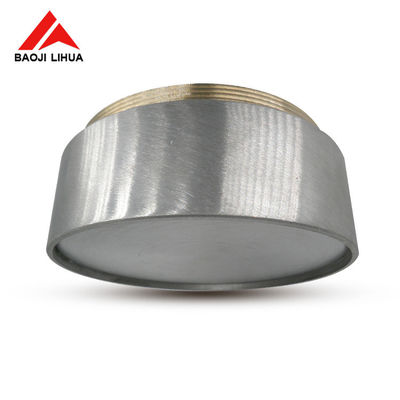

2.Image



NB1 NB2 Titanium Target ASTM B39 99.95% , Evaporation Coating Niobium Target 0







3.Factory & Certificate

NB1 NB2 Titanium Target ASTM B39 99.95% , Evaporation Coating Niobium Target 1





4.Package & Delivery



NB1 NB2 Titanium Target ASTM B39 99.95% , Evaporation Coating Niobium Target 2

package:

Wrap the niobium target material with pearl cotton and put it in a wooden box. Our reasonable packaging method can avoid the niobium target materials from colliding with each other during transportation, and can also prevent the impact of external goods on the product, and ensure that the product is delivered after delivery Integrity.

---1. The sealed packaging,then put in the Carton cas or standard standard plywood case.

---2.Using exclusive custom carton with customer logo, each individual packaging, to help buyers direct sales.

---Accept customer requirment



Make sure that each package is tailor-made for you.ensure when you get the goods no damaged.
