Product Details
Place of Origin: BaoJi Shaanxi China
Brand Name: LHTI
Certification: ISO9001
Model Number: LH-01
Payment & Shipping Terms
Minimum Order Quantity: 100 kgs
Price: USD $19.5-$28.5 / kg
Packaging Details: Standard exporting packaging, plywood case outside
Delivery Time: 7-25 working days
Payment Terms: T/T, Western Union, L/C, D/A, D/P
Supply Ability: 500 tons per month
Standard: |
ASME / ASTM B338 |
Material: |
Gr1, Gr2 |
Length: |
Max 16000mm |
Surface: |
Pickling Surface/Polished |
Diameter: |
15mm 19.1mm 25.4mm 33.4mm 38.1mm 45mm Etc. |
Wall Thickness: |
1.0/1.2mm |
Technique: |
Seamless, Welded |
Application: |
Heat Exchanger, Chemical Industry Etc. |
Standard: |
ASME / ASTM B338 |
Material: |
Gr1, Gr2 |
Length: |
Max 16000mm |
Surface: |
Pickling Surface/Polished |
Diameter: |
15mm 19.1mm 25.4mm 33.4mm 38.1mm 45mm Etc. |
Wall Thickness: |
1.0/1.2mm |
Technique: |
Seamless, Welded |
Application: |
Heat Exchanger, Chemical Industry Etc. |

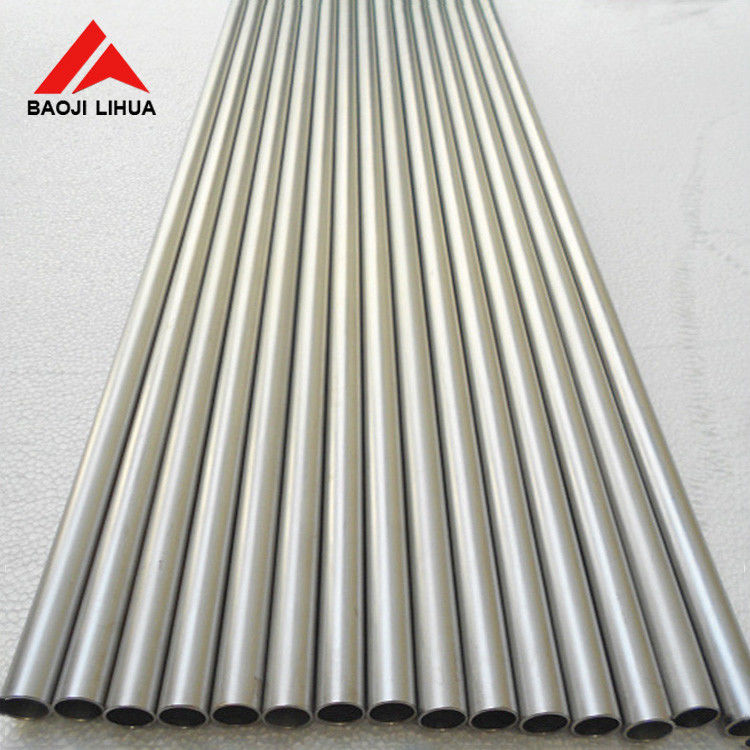

ASME SB gr1 gr2 titanium tube pipe for heat exchangers seamless tube
Product name: titanium pipe / titanium tube for heat exhcanger
Standards: ASTM B338 ASTM B861 ASTM B862
Grades: Gr1, Gr2 , Gr9(Ti-5Al-2.5V) , Gr12(Ti-0.3Mo-0.8Ni)
Dimention:OD<=57mm*WT1.1/1.2mm*L<=16000mm
Titanium pipe / titanium tube is ideal for chemical processing applications due to its extreme resistance to corrosion,and it delivers exceptional durability. Our factory make high-quality commercially pure grade 1 and grade 2 seamless and welded titanium pipe in a wide range of sizes. Our seamless pipe is available in 1/8″ to 6″ sizes and welded pipe can be purchased in 1″ through 24″ sizes.
ASTM /ASME B338 titanium tube is mainly used for heat exchanger.
Common size is:15mm 19.1mm 25.4mm 33.4mm 38.1mm 45mm etc.
We’re focused on providing the exact specifications you need with a fast turnaround and delivery. No matter what length or diameter you require, we have the ability to provide you with the exact titanium pipe fittings that fit your application. Furthermore, we work with many different industries, from automotive, marine, petro chemical, among others; and we can work closely with you to determine the needs of your unique project.
In chemical processes, the use of Titanium Heat Exchangers has been found to be a cost-effective method of resisting leaks from corrosion on a process line. Titanium tubes play a very important role in titanium heat exchangers.
Titanium pipes / titanium tubes used in heat exchanger
Chemical composition (Wt%)
| ASTM No. | Fe max | O max | N max | C max | H max | Pd | Al | Bal |
| Grade 1 | 0.2 | 0.18 | 0.03 | 0.1 | 0.015 | - | - | Ti |
| Grade 2 | 0.3 | 0.25 | 0.03 | 0.1 | 0.015 | - | - | Ti |
Physical Properties (Min)
| ASTM Grade | Alloy Composition | Tensile Strength | Yield Strength | Elongation min % | ||
| ksi | Mpa | ksi | Mpa | |||
| Grade 1 | Unalloyed Ti ("Pure") 35A -CP1 | 35 | 240 | 25 | 170 | 30 |
| Grade 2 | Unalloyed Ti ("Pure") 50A -CP2 | 58 | 400 | 40 | 275 | 25 |
Baoji Lihua Non-ferrous Metals Co., Ltd, founded in 2006, lies in Tai Cheng road Baoji city---It is famous for manufacturing titanium, called “China Titanium Valley”.We are specialized in manufacturing, researching and marketing non-ferrous metals, mainly for titanium products and equipment. With 10 years export Experience, our products was sold to Asia, Europe, North America in large quantity.In addition to provide preferential price for customers, we pay much attention to quality, and have a good after-sales service.All products we produced are based on the standard: German standard ,Aerospace standard, European standard, etc. Including ANSI B16.5, ASTM B16.5, ASME B16.47, JIS B2220, DIN2627-2628.Lihua is certified by ISO9001:2008, TUV and IQNET. Many of our products have passed SGS,BV, LR'S ,TUV and other international inspection agency inspection.
Welcome to send inquiry in any time!
