Product Details
Place of Origin: China Baoji
Brand Name: LHTi
Certification: ISO9001:2015
Model Number: capscrew
Payment & Shipping Terms
Minimum Order Quantity: 200pcs
Price: $2.0/set -$2.5/set
Packaging Details: Carton case or standard export plywood case
Delivery Time: 15 work days
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 50000pcs per month
Material: |
Gr2 |
Bolt Type: |
Hex Bolts And Nuts |
Standard: |
ANSI/ASME B18.2.1 |
Size: |
3/8"-16 |
Thread: |
UNC |
Technology: |
Forged /Punch |
Material: |
Gr2 |
Bolt Type: |
Hex Bolts And Nuts |
Standard: |
ANSI/ASME B18.2.1 |
Size: |
3/8"-16 |
Thread: |
UNC |
Technology: |
Forged /Punch |
ANSI/ASME B18.2.1Titanium grade2 capscrew 3/8"-16 UNC X 4" c/w hex boltsNut price
1. Titanium hex bolts nut
Titanium fasteners have always been the ultimate statement of performance and status.
At almost half the weight of steel, along with high strength and a machined finish that
can never rust or tarnish, it's easy to see why they are so widely desired.
Discovered: 1791
Melting point: 3,034°F (1,668°C)
Symbol: Ti
Electron configuration: [Ar] 3d2 4s2
Atomic number: 22
Boiling point: 5,948°F (3,287°C)
2. Drawing ANSI/ASME B18.2.1 standard

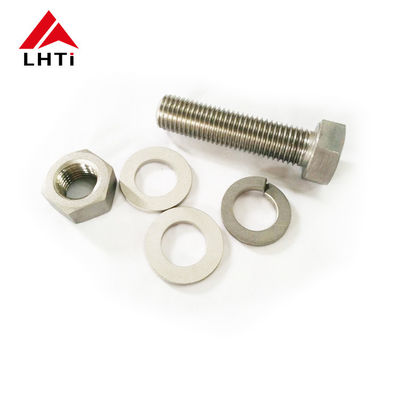

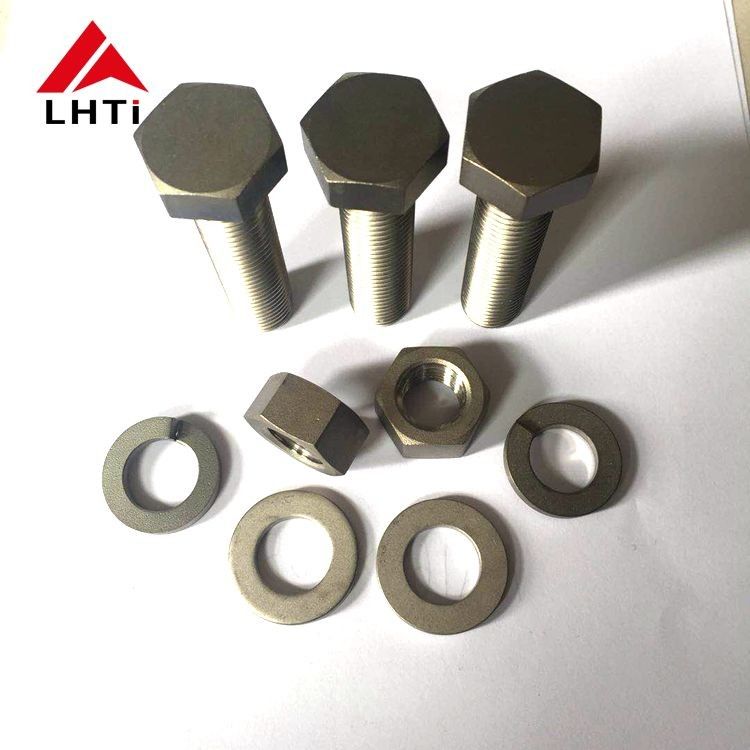

3. Details picture
Item Name | Gr2 titanium 3/8"-16 UNC X 4" c/w hex bolts Nut |
Material | Pure Titanium (Gr2) |
Thread | UNC |
Standard |
ANSI/ASME B18.2.1 |
Specification |
Screw / bolt: M2—M64*L6—300mm (or as your inquired ) Nut: M2—M30 Washer: M2—M30 Non-standard and special size is available according to your drawing or requirement |
Surface Treatment | Polishing |
Color | Ti natural |
Features | light weight, acid and alkali resistance, anti-corrosion, excellent mechanical strength etc. |
Applications | Equipment accessories: airplane, ship, bicycle, motorcycle, auto, medical, chemical, wheel, sports, anchor, weapon, etc. |
Chemical composition (Wt%)
Grade | Fe max | O max | N max | C max | H max | Pd | Al | Bal |
Gr2 | 0.3 | 0.25 | 0.03 | 0.1 | 0.015 | - | - | Ti |
Physical Properties (Min)
Grade | Alloy Composition | Tensile Strength | Yield Strength | Elongation min % | ||
ksi | Mpa | ksi | Mpa | |||
Gr2 | Unalloyed Ti ("Pure") 50A -CP2 | 58 | 400 | 40 | 275 | 25 |
