Product Details
Place of Origin: China
Brand Name: LHTI
Certification: ISO9001
Model Number: LH-14
Payment & Shipping Terms
Minimum Order Quantity: 1kg
Price: US dollar $26/kg--US dollar $56/kg
Packaging Details: coil and spool package in carton casse or plywood case,straight wire package in Plastic case,outside is standard export plywood case
Delivery Time: In stock--3 days.production--15 working days
Payment Terms: L/C, D/P, T/T, Western Union,paypal etc
Supply Ability: 50000 kgs per month
Product Name: |

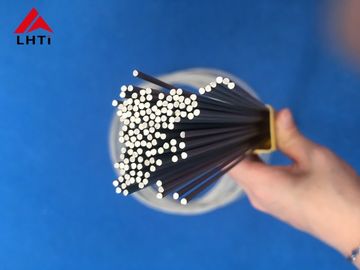

Hot Sale Gr2 ErTi2 1.2mm 1.6mm 2.0mm 2.4mm 2.6mm TIG Rod Titanium Welding Wire In Stock |
Grade: |
ErTi2 |
Shape: |
Straight Or Coil |
Material: |
Pure Titanium |
Surface: |
Pickling Surface |
Package: |
Standard Export Package |
Hot Sale Diameter: |
1.2mm 1.6mm 2.0mm 2.4mm 2.6mm |
Length: |
1000mm |
Key Words: |
Thin Titanium Wire |
Keyword: |
Titanium Filler Rod |
Product Name: |
Hot Sale Gr2 ErTi2 1.2mm 1.6mm 2.0mm 2.4mm 2.6mm TIG Rod Titanium Welding Wire In Stock |
Grade: |
ErTi2 |
Shape: |
Straight Or Coil |
Material: |
Pure Titanium |
Surface: |
Pickling Surface |
Package: |
Standard Export Package |
Hot Sale Diameter: |
1.2mm 1.6mm 2.0mm 2.4mm 2.6mm |
Length: |
1000mm |
Key Words: |
Thin Titanium Wire |
Keyword: |
Titanium Filler Rod |
Hot sale Gr2 ErTi2 1.2mm 1.6mm 2.0mm 2.4mm 2.6mm TIG rod titanium welding wire in stock
Products information
Grade : ErTi-1,ErTi-2,ErTi-5,ErTi-7 etc
Standard : ASTM B863 (for industrial) / AWS a5.16(for welding)
Diameter : 0.8-6.0mm
Shape : coil,spool,straight.
Surface : pickling surface/bright surface
Application : industrial,welding,macine parts,medical etc
Welding wire analysis%:
C <0.08
Fe <0.25
O <0.18
H <0.013
N <0.05
Ti: balance
Gr1/Gr2/ErTi-1/ErTi-2 dia=0.8mm/1.0mm/1.2mm/1.6mm/2.0mm/2.4mm/2.5mm/3.0mm/3.5mm in stock,ensure delivery 3-5 days
Gr5/ErTI-5/Gr7/ErTI-7 some size in stock,some size need production,lead time 10 working days.according your quantity
Gr12/ErTi-12 need production,lead time 10 working days
Titanium wire | ||||
Finish Type | Available Shapes | Minimum Diameter | Diameter Tolerance | Price Leval |
Acid Washed | Coil or Straight | 0.2mm | Normal | Lower |
Polished | Coil or Straight | 0.2mm | Normal | Medium |
Grinding Polished | Only Straight | 0.8mm | Accurate and can be very small | Higher |
Common Titanium Wire Tolerance sheet | |||
Diameter | 0.1-0.3mm | 0.3-0.8mm | 0.8-2.0mm |
Tolerance | +/- 0.025 | +/-0.04 | +/-0.05 |
Length | 200-500mm | 500-1000mm | 1000-2000mm |
Tolerance | +/-1.0 | +/-1.5 | +/-2. |
Grade | Tensile Strength (min) | Yield strength 0.2%Offset | Elongation in 2in. or 50mm % (min) | ||
Min | |||||
Ksi | Mpa | Ksi | Mpa | ||
Gr2 | 50 | 345 | 40 | 275 | 18 |
Titanium wire for welding (TIG filler rod)
Titanium base welding metals in welding rod, welding wire, electrode, and bar form. Used for MiG, TiG, and Arc welding. Range from commercially pure titanium to titanium alloys and super alloys.
Welding processes are as varied as the workpieces they create, and choosing the right one is vital to your project’s success. While MIG and TIG welding both form the weld using an electric arc, the techniques are quite different, and choosing the wrong one can lead to more than one headache.
MIG and TIG welding both use an electric arc to create the weld. The difference between the two is the way the arc is used. MIG (metal inert gas) welding uses a feed wire that constantly moves through the gun to create the spark, then melts to form the weld. TIG (tungsten inert gas) welding uses long rods to fuse two metals directly together.
---LHTi have professional welding technology teams that can provide free welding consultation and other services to our customers.
---If you are not sure what type of titanium wire you need for your project, we were glad to help you choose the right wire
4.Process
According Titanium wire,we have two kinds of process (Cold drawn and Hot drawn)
Cold Drawn : Pury titanium (Gr1 /Gr2/Gr4 ) and Gr7
Hot Drawn : Alloy titanium wire except Gr7,when drawn need heating wire ,When the temperature reached 800 degrees Celsius, carries on the drawing
5.Package & Delivery
---Coil and spool package in carton casse or plywood case
---Straight wire package in Plastic case,outside is standard export plywood case.
---accept customer requirment
Make sure that each package is tailor-made for you.ensure when you get the goods no damaged.
6.Application scenarios
Offshore oil
Petrochemical products
Gas treatment
Medicine
Power station
Pharmaceutical equipment
Chemical Equipment
Sea water equipment
Heat exchanger
Condenser
LHTi to provide partners in various fields with the most suitable and high-quality titanium wire to ensure that its production quality continues to improve, whether you use it for the petroleum, chemical, marine industry or high-end aviation parts and manufacturing business . No matter how special the material you need, we are always able to provide all the titanium wire products our customers need.let me know your need.
More information and any welding question,Please feel free to get in touch to get more.
We still have more,If you need,Catalog will be send.
