Place of Origin: | Baoji Shaanxi China |
---|---|
Brand Name: | LHTI |
Certification: | ISO9001 |
Model Number: | LH-15 |
Minimum Order Quantity: | 1kg |
Price: | US dollar $15/kg--US dollar $29/kg |
Packaging Details: | standard export plywood case |
Delivery Time: | 10-15 working days |
Payment Terms: | L/C, D/P, T/T, Western Union,Paypal etc |
Supply Ability: | 50000 kg per month |
Material: | Titanium | Grade: | GR1 Gr2 Gr5 Gr7 Gr12 |
---|---|---|---|
Standard: | ASTM B265 | Thickness: | <10mm |
Length: | 3000mm Or As Your Requirment | Width: | 2000mm |
Surface: | Picling Surface,polish Surface | Sample: | Accept |
High Light: | thin titanium sheet,titanium alloy sheet |

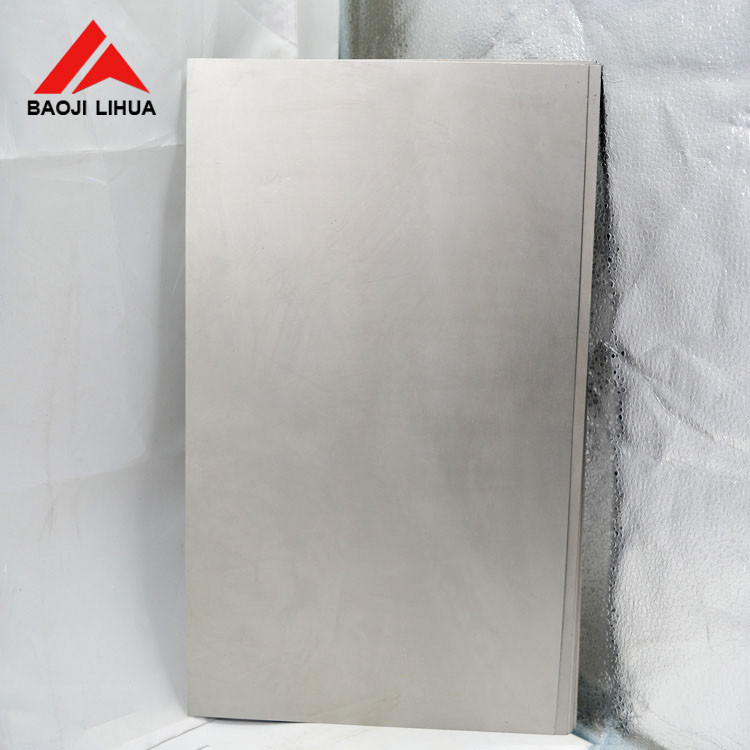

High Quality ASTM B265 Gr1 Gr2 Gr5 Gr7 Gr12 Titanium Plate Titanium Sheet Price
1.Titanium Sheet
Standard:GB/T3621-2007,GB/T13810-2007
Amercian standard:ASTM B265,ASTM F136,ASTM F67,AMS4928
Grade:TA0,TA2,TA3,TA9,TA10,TC4 /GR1,GR2,GR3,GR5,GR7,GR12
Russia Grade:BT1-00,BT1-0,BT1-2
State:R/Y/M
Thickness(mm):>4.0-80.0 (Hot Rolling),0.3-6.0 (Cold Rolling)
Width(mm):400-3000 (Hot Rolling), 400-1300 (Cold Rolling)
Length(mm):1000-8000 (Hot Rolling), 1000-4000 (Cold Rolling)
Surface:Pickling surface/ polish surface/ Sandblasting surface
Item Name | titanium plate/titanium sheet. |
Material | GR1,GR2,GR3,GR4,GR5,GR7,GR12 |
Standard | ASTM B265, ASTM F136, ASTM F67, ASTM 4928 |
Width:400-3000mm (Hot rolled) 400-1300mm(cold rolled) | |
specification | Length:1000-8000mm (Hot rolled) 1000-4000mm(cold rolled) |
Thickness:>4.0-80.0mm ((Hot rolled) 0.3-6.0mm (cold rolled) | |
Shape | Usually sheet(plate),block or ingot. |
Application | 1. Heat exchangers and condensers |
2. Seawater desalination industry | |
3. Chemical Industry, | |
4. Electroplating equipment | |
5. Precision instruments | |
6. Environmental protection equipment | |
7. Auto industry | |
8. Medical and Sports industry | |
9. Electric power industry | |
Certificate | ISO9001:2008, TUV, EN10204.3.1 |
mechanical property | Ta1 :M(anneal) thickness=0.3-25.0mm tensile strength(Rm/Mpa):>=240 |
Ta2 :M(anneal) thickness=0.3-25.0mm tensile strength(Rm/Mpa):>=400 | |
Tc4 :M(anneal) thickness=0.8-2.0mm/>2.0-5.0mm/>5.0-10.0mm/10.0-50.0mm tensile strength(Rm/Mpa):>=895 | |
Payment | T/T, L/C, Paypal, D/P, Western union.or as your inquiry |
Package & Delivery
---1.Wrapping each Goods, prevent damage surface of goods in the long-distance transportation
---2.Inside the box stuffed with pearl cotton and sponge.To prevent the goods shaking in the long-distance transportation.
---3.outside is standard plywood case.
---Accept customer requirment
Make sure that each package is tailor-made for you.ensure when you get the goods no damaged.
