ASTM B16.9 Gr2 Gr7 Gr12 Titanium Elbow 45 90 180

Brand Name:	LH-Ti
Model Number:	titanium LR elbows
MOQ:	2 PCS
Price:	$ 10- $ 200 per PC
Payment Terms:	T/T,L/C,D/A,D/P,Western Union
Supply Ability:	10K pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, Shaanxi, China

Certification:

EN10204.3.1,SGS,TUV,BV

Standard:

ASTM B16.9, ASTM B363

Material Grade:

Titanium Gr2,gr7,gr12

OD:

1/2"-48"

Wall Thickness:

3.0-18mm

Type:

Seamless ,welded

Surface:

Pickled, Polished

Application:

Chemical Industry

Packaging Details:

Standard exporting packaging

Supply Ability:

10K pcs per month

Highlight:

short radius elbow

bending titanium rod

Product Description

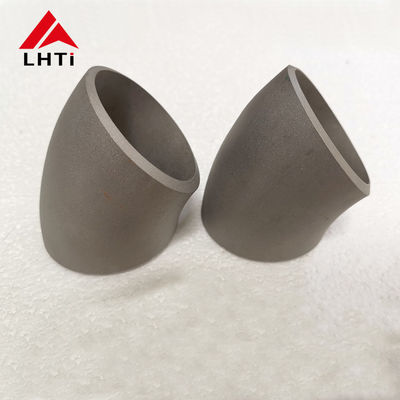

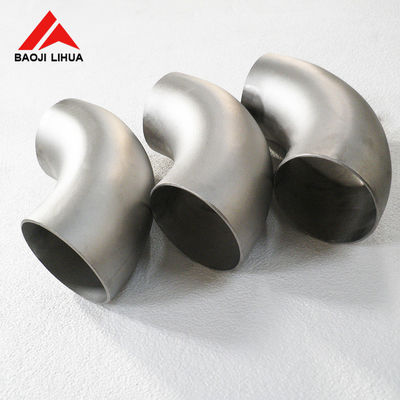

ASTM B16.9 Gr2 Gr7 Gr12 Titanium Elbow 45 90 180

This titanium elbow is made to ASTM B16.9 and ASTM B363 in Grade 2, Grade 7 and Grade 12, and is supplied in 45, 90 and 180 degree long radius and short radius forms. Sizes cover DN15 to DN1200 (NPS 1/2 to 48 inch) with wall thickness from 3 mm to 18 mm (Sch 5s to Sch 80s), in seamless or welded type with pickled or polished surface.

Technical Specifications

Standard	ASTM B16.9, ASTM B363
Material Grade	Titanium Gr2, Gr7, Gr12
Degree	45 degree, 90 degree, 180 degree
Type	Long radius and short radius, seamless and welded
Size Range	DN15 - DN1200 (NPS 1/2 - 48 inch)
Wall Thickness	3mm - 18mm (Sch 5s - Sch 80s)
Surface	Pickled, polished
Manufacturing Process	Pushing, butt welding, polishing, lathe processing, pickling, sanding
Density	4.51 g/cm3
Melting Point	About 1660 C
Certification	EN10204.3.1, SGS, TUV, BV

Mechanical properties by grade:

Grade	Alloy Type	Tensile Strength (MPa)	Yield Strength (MPa)	Elongation min (%)
Grade 2	Unalloyed titanium	400	275-650	25
Grade 7	Titanium with Pd 0.12-0.25	400	275-450	20
Grade 12	Titanium with Mo 0.2-0.4 and Ni 0.6-0.9	345	275	25

Applications & Titanium Advantages

Titanium elbows are used in the chemical industry, petroleum and nuclear power plants, marine technology and plant engineering, where corrosion resistance and low weight are both important. Grade 2 suits general corrosive service, Grade 7 is chosen where reducing acids are present, and Grade 12 gives higher strength with good corrosion resistance. Titanium has a low density of 4.51 g/cm3, a high melting point of about 1660 C and good toughness, so these fittings keep their strength where carbon steel would corrode.

Quality, Customization & Inquiry

Each fitting is produced under EN10204.3.1 with SGS, TUV and BV certification, and the manufacturing process covers pushing, butt welding, polishing, lathe processing, pickling and sanding. Size, wall thickness, degree and grade can be customized to your drawing, monthly capacity is 10K pcs and orders are normally delivered within 15-20 days. Please send your size, degree, wall thickness and grade so that we can prepare a quotation.

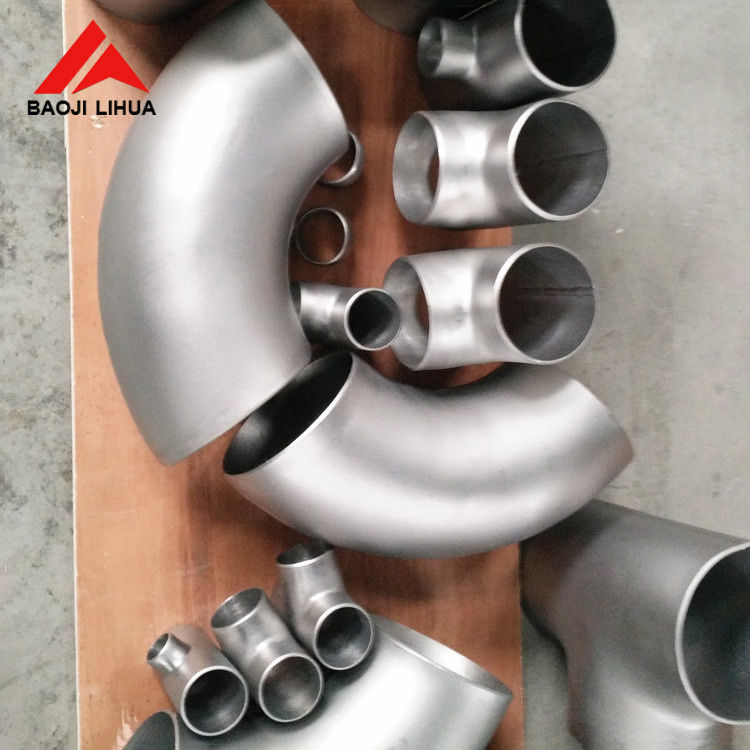

Titanium elbow fitting
