Titanium Elbow
Created with Pixso.

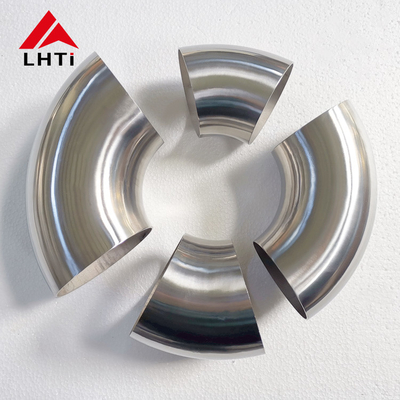

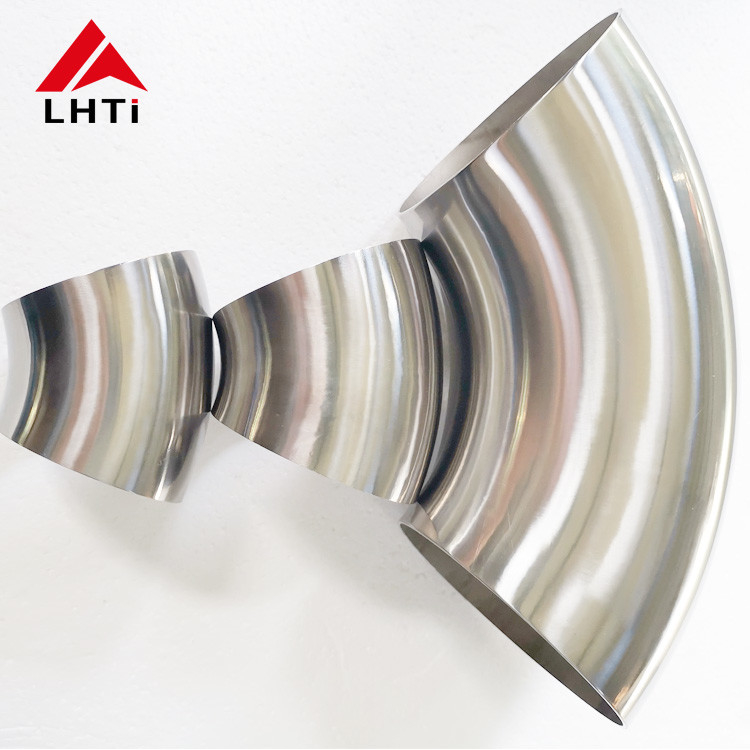

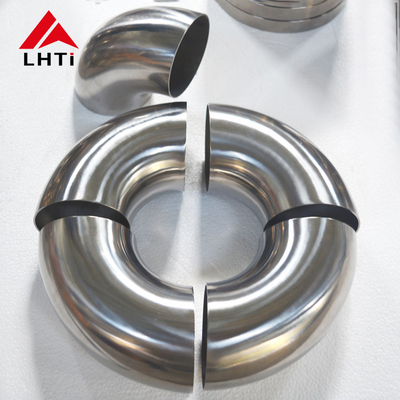

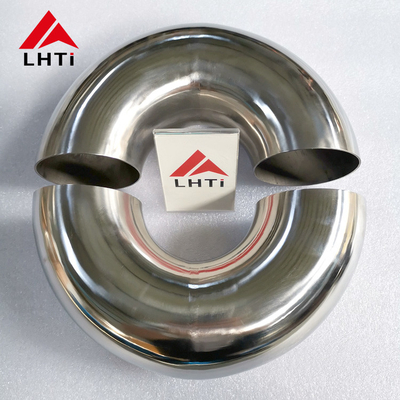

Gr5 Titanium 90 LR Elbow Sch 40 ASME B363

Gr5 Titanium 90 LR Elbow Sch 40 ASME B363

Brand Name: LHTI
Model Number: LH001
Detail Information
Place of Origin:
China
Degree:
180 Degree
Unit Price:
$10usd/pc-$200usd/pc
Factory Area:
3000 ㎡
Processing:
Push
Color:
Metallic
Surface:
Pickled, Polished
Elbow Type:
45D/90D/180D
Packing:
Wooden Case
Highlight:

Grade 5 titanium elbow 90 LR

,

ASME B16.5 titanium elbow

,

ASTM B363 titanium elbow

Product Description

Gr5 Titanium 90 LR Elbow Sch 40 ASME B363

A Grade 5 elbow is specified when the line pressure, the fatigue load or the weight budget is beyond what a Grade 2 fitting can carry. Ti-6Al-4V reaches 895 MPa tensile and 828 MPa yield against 345 and 275 for Grade 2, so the same schedule carries a much higher pressure or a thinner wall. The trade is that Grade 5 cannot be cold bent like Grade 2: with 10 percent elongation it will crack at the extrados. These 90 degree long radius elbows are hot formed, annealed and pickled, in Sch 40 wall for 1.5 inch and 2 inch pipe, to ASME B16.9 dimensions and ASTM B363.

Hot Forming Is Part of the Specification

The billet or tube is heated to between 700 and 850 degrees C, formed on a mandrel while hot, then annealed at 700 to 750 degrees C in vacuum or argon. Hot working in air leaves an oxygen enriched alpha case on the surface, typically 0.05 to 0.2 mm deep, which is hard and brittle and will crack under bending or vibration. It is removed by pickling or by machining the bore and the outside, and a hardness check across the section is the simplest way to prove it is gone. A Grade 5 elbow that was cold formed to save cost will show cracking at the extrados under penetrant inspection.

Long Radius Against Short Radius

Long radius means the centre line radius equals one and a half times the nominal diameter, so the bend is gentler, the pressure drop is lower, pigging is easier and erosion at the extrados is reduced. Short radius elbows fit tighter spaces but raise the loss coefficient and the local wall thinning. For abrasive or high velocity service the long radius version lasts longer, which is why it is the default on process lines.

Size Outside diameter Sch 40 wall Centre to face A Centre line radius Bend angle
1.5 inch 48.3 mm 3.68 mm 57 mm 57 mm 90 degrees
2 inch 60.3 mm 3.91 mm 76 mm 76 mm 90 degrees

Schedule, Rating and Temperature

ASME B16.9 fittings do not carry an independent pressure rating; the fitting matches the wall and the rating of the pipe it is welded to, so a Sch 40 elbow on Sch 40 pipe is rated as the pipe. The allowable stress of Grade 5 falls with temperature, and the ASME B31.3 tables should be consulted above about 200 degrees C. Do not assume that a higher strength grade keeps its room temperature rating at 300 degrees C.

Item Gr5 Ti-6Al-4V elbow Gr2 elbow
Tensile strength 895 MPa min 345 MPa min
Yield strength 828 MPa min 275 MPa min
Elongation 10% min 20% min
Forming route Hot formed at 700 to 850 degrees C, then annealed Cold or hot mandrel bent
Alpha case Must be removed after hot forming Not formed at temperature, so not an issue
Wall for the same pressure Thinner, because the allowable stress is higher Thicker
Best duty High pressure, fatigue, weight critical Corrosive duty at moderate pressure

Welding and Post-Weld Treatment

Grade 5 pipe and fittings are welded with ERTi-5 filler under argon with the bore purged below about 50 ppm oxygen. Thin wall joints do not normally need post-weld heat treatment, but sections above roughly 12 mm benefit from a stress relief at 600 to 650 degrees C to restore ductility in the heat affected zone. Any coloured tint beyond straw must be removed, because it is the visible sign of a contaminated weld.

Inspection and Ordering

Each elbow is checked for angle, centre to face dimension, wall thickness at the extrados, ovality and surface condition, and positive material identification confirms Grade 5 rather than a substituted Grade 2. Specify size, schedule, angle, radius, grade, standard and end finish, for example 2 inch Sch 40 Gr5 90 degree LR elbow, ASME B16.9, ASTM B363, beveled ends. Elbows are packed in wooden cases with the bevels protected.
